- New

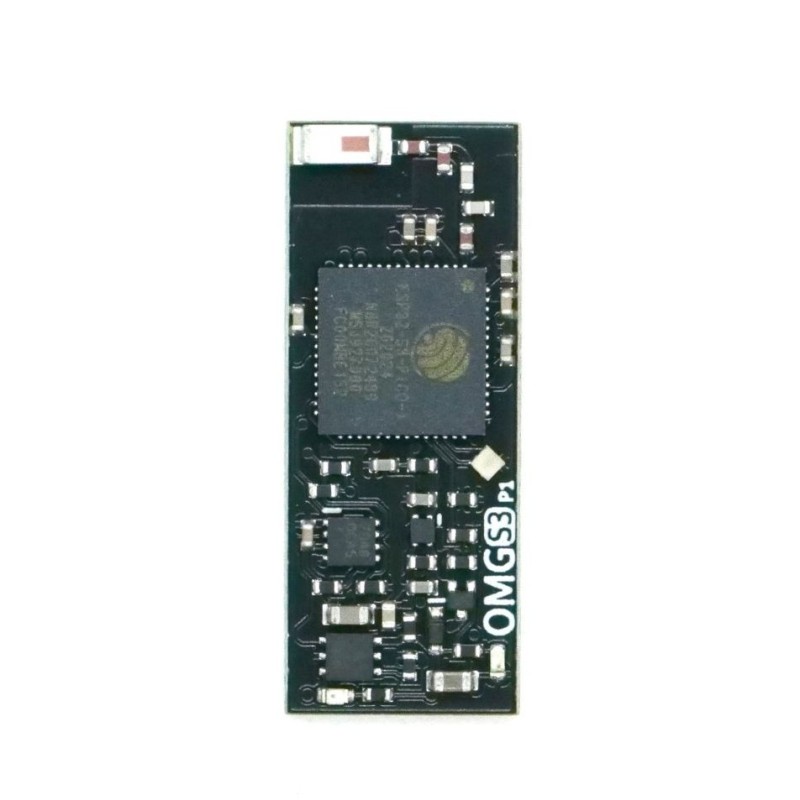

OMGS3 - development board with ESP32-S3 module (3D antenna)
ID: 1201000
zł103.97
Tax included
zł84.53 tax excl.
This ESP32-S3-based development board combines high processing power with energy efficiency and rich functionality. Equipped with a dual-core Xtensa LX7 processor (240 MHz), a RISC-V coprocessor, 8 MB of Flash, and 2 MB of PSRAM, it ensures smooth operation even in advanced IoT projects. The module supports 2.4 GHz Wi-Fi and Bluetooth 5.0 + Mesh, and thanks to the built-in LiPo charging circuit and battery monitoring, it can operate for extended periods in low-power mode. OMGS3
Description
OMGS3 is a development board based on the ESP32-S3 chip, designed for designers, engineers, and electronics enthusiasts who need extensive capabilities in an ultra-small form factor. Despite its compact size, it offers full support for Wi-Fi 2.4 GHz (802.11b/g/n) and Bluetooth 5.0 + Mesh, making it an ideal solution for IoT applications, smart systems, and modern mobile devices.
The board features a dual-core Xtensa LX7 processor running up to 240 MHz, supported by a RISC-V Ultra Low Power Co-processor that ensures extremely low power consumption in sleep modes. With built-in 8 MB QSPI Flash memory and 2 MB PSRAM, OMGS3 provides generous data storage and smooth performance even for complex applications. The board includes an RGB LED for visual status indication. OMGS3 supports LiPo battery power and is equipped with a charging circuit and an I2C Battery Fuel Gauge for energy level monitoring. Thanks to its 3.3 V 700 mA voltage regulator, the module maintains stable operation even under high load conditions.
The board also offers a built-in USB interface and D+/D− pins for connecting an external USB connector. Its compact dimensions and the option for surface-mount (SMT) installation or direct wire soldering make OMGS3 perfect for space-constrained projects where every millimeter matters. The integrated 3D High Gain antenna ensures excellent range and stable wireless connections. With 17 GPIO pins and full support for development environments such as Arduino, ESP-IDF, and MicroPython, OMGS3 delivers an ideal combination of power, flexibility, and miniaturization. It is perfectly suited for IoT, robotics, and smart sensor projects, as well as for any application where energy efficiency and compact design are essential. Thanks to its ultra-low-power operation mode, the module can run for long periods on battery power, making it an excellent solution for mobile and autonomous devices.
Features
- Processor: Dual 32-bit Xtensa LX7 @ up to 240 MHz
- Coprocessor: RISC-V Ultra Low Power
- Flash memory: 8 MB QSPI
- PSRAM: 2 MB QSPI
- Connectivity: Wi-Fi 2.4 GHz (802.11b/g/n), Bluetooth 5.0 + Mesh
- Regulator: 3.3 V / 700 mA LDO
- Sleep mode support
- LED: RGB indicator
- Power supply: LiPo battery with charging circuit
- Battery monitoring: I2C Battery Fuel Gauge
- USB interface: Native USB + USB Serial JTAG
- Pins: D+/D− for external USB connector
- Antenna: 3D High Gain
- Number of GPIOs: 17
- Dimensions: 25 mm × 10 mm
1201000
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
