ESP32-P4 Development Board Kit with Wi-Fi 6, PoE Ethernet + screen + camera - ESP32-P4-WIFI6-POE-ETH-D - Waveshare 32834

Description

The board is designed as a platform for developing modern embedded systems that require high computing performance, advanced user interfaces, and secure network communication.

At the core of the board is the ESP32-P4, featuring a 32-bit dual-core RISC-V processor running up to 360 MHz, supported by 32 MB PSRAM and 32 MB Flash memory. The chip includes multimedia accelerators such as an ISP, JPEG codec, and H.264 encoder, making it well suited for visual and audio applications.

Wireless connectivity is provided by the onboard ESP32-C6-MINI module, which adds Wi-Fi 6 (802.11ax) and Bluetooth 5 LE, communicating with the ESP32-P4 via an SDIO interface. The board also features 100 Mbps Ethernet with PoE, allowing both power and data transmission over a single Ethernet cable.

The ESP32-P4-WIFI6-POE-ETH board supports AI-based speech interaction, enabling speech recognition and voice control features.

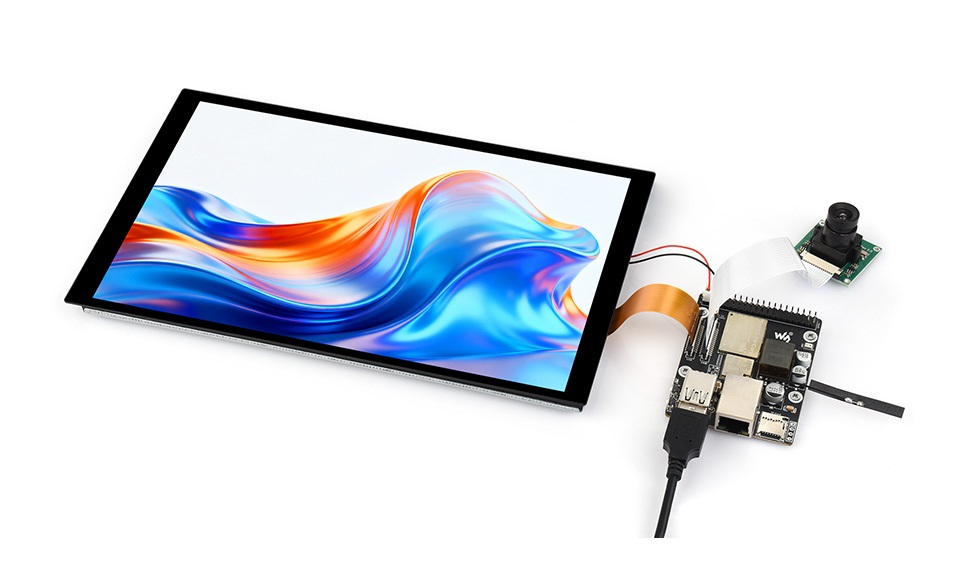

The -D version includes a 10.1-inch MIPI-DSI capacitive touch display and a Raspberry Pi–compatible camera, allowing rapid deployment of complete HMI systems, operator panels, and vision-based applications.

                                                                                                                      Onboard resources

1. ESP32-P4-Core - ESP32-P4NRW32, with 32MB Nor Flash
2. ESP32-C6-MINI1-U-H8 module - SDIO interface protocol, extending Wi-Fi 6 / Bluetooth 5 (LE) for ESP32-P4, onboard IPEX 3 connector for external antenna
3. Display interface - MIPI-2lane
4. Camera interface - MIPI-2lane
5. 5V power supply header
6. UART header SH1.0 4PIN - for program burning and debugging
7. I2C header SH1.0 4PIN - for connecting external 12C devices
8. Power indicator
9. RST button
10. Boot button - Press it when powering on or resetting to enter download mode
11. Type-A and Type-C physical stacked design - Type-A as USB OTG 2.0 High Speed port; Type-C as the UART port, for power supply, program burning and debugging
12. 100Mbps RJ45 Ethernet port - Supports PoE function
13. TF card slot - SDIO 3.0 interface protocol
14. ESP32-C6 UART pads
15. Onboard microphone
16. 40PIN header
17. Audio codec chip, amplifier chip and MX1.25 speaker header - MX1.25 2P connector, supports 80 2W speaker
18. IP101 - Ethernet chip

                                                                                                                     Pinout definition

Features

• Main microcontroller: ESP32-P4 (32-bit RISC-V dual-core, up to 360 MHz)
• Wireless co-processor: ESP32-C6-MINI (Wi-Fi 6, Bluetooth 5 LE)
• Flash memory: 32 MB
• PSRAM: 32 MB
• Wireless connectivity: Wi-Fi 6 (2.4 GHz), Bluetooth 5 LE
• Ethernet: 100 Mbps RJ45
• PoE power supply: Yes (via Ethernet)
• Display interface: MIPI-DSI (2-lane)
• Camera interface: MIPI-CSI (2-lane)
• USB: USB 2.0 OTG High Speed (Type-A), USB-UART (Type-C)
• Audio: onboard microphone, audio codec, amplifier, speaker connector
• Storage: TF card slot (SDIO 3.0)
• GPIO: dual 20-pin headers plus programmable GPIOs
• Peripheral interfaces: SPI, I2S, I2C, UART, ADC, PWM, MCPWM, RMT, TWAI
• Multimedia features: ISP, JPEG codec, H.264 encoder
• Security features: Secure Boot, Flash encryption, TRNG, cryptographic accelerators
• Applications: HMI, edge computing, multimedia systems, automation, vision systems, IoT / AIoT

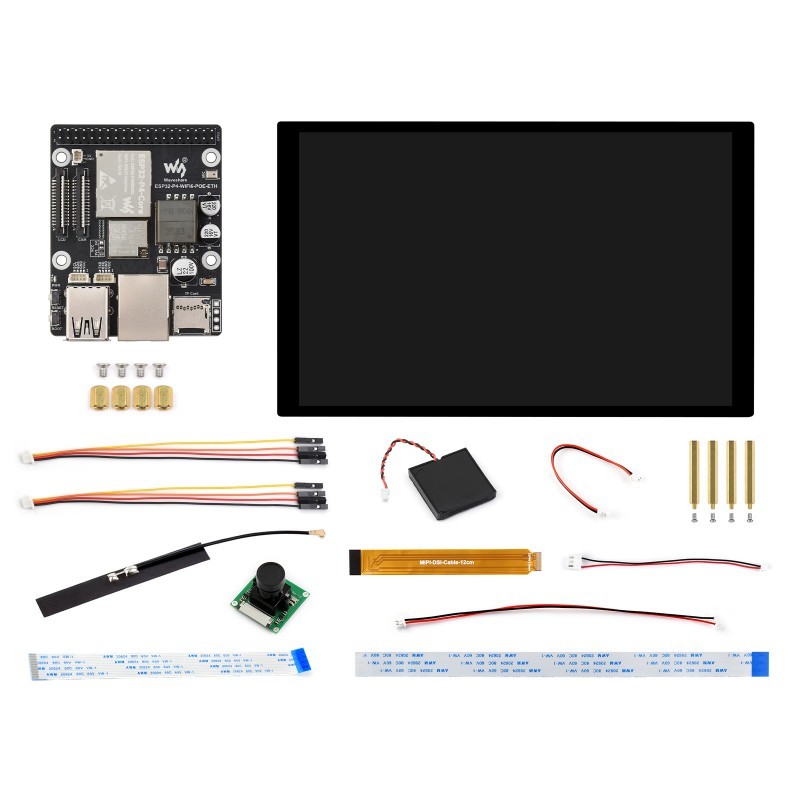

Kit includes

• ESP32-P4-WIFI6-POE-ETH development board
• 10.1″ MIPI-DSI capacitive touch display
• Raspberry Pi Camera (B)
• 2.4 GHz antenna
• 8 Ω / 2 W speaker
• FFC cables and connection cables
• USB cables
• Mounting hardware (standoffs and screws)
