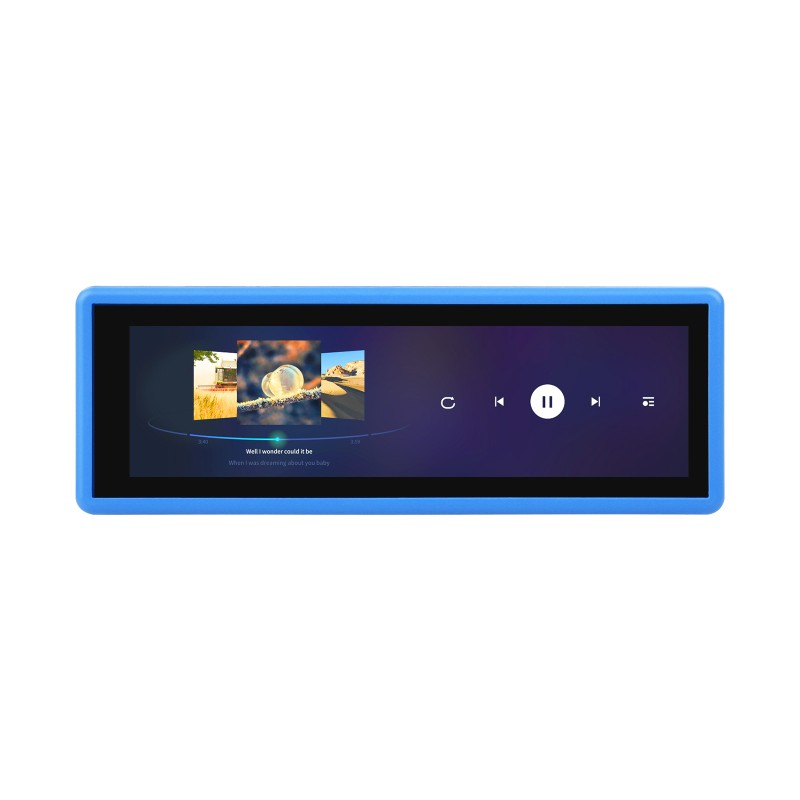

ESP32-S3-Touch-LCD-3.49 in the Case B version without a lithium-polymer battery is a compact and advanced development platform with dimensions of 98.50 × 28.99 × 22.80 mm, designed for creating projects in the field of IoT, HMI interfaces and systems with speech recognition.

6 weeks
Awaiting delivery
Kamami is the official distributor of Waveshare displays, accessories and modules.

Description

Compact development board based on the ESP32-S3R8 chip with a dual-core Xtensa LX7 processor with a frequency up to 240 MHz, integrated with a color IPS display with a diagonal of 3.49 inches and a resolution of 172 × 640 pixels. Equipped with a capacitive touch panel and support for Wi-Fi 2.4 GHz (802.11 b/g/n) and Bluetooth 5 (LE) with an antenna integrated on the board.

On board there are: 8 MB PSRAM, 16 MB Flash memory, ES8311 and ES7210 audio codecs, two digital microphones with noise and echo reduction system, QMI8658 IMU sensor (accelerometer and gyroscope) and the PCF85063 real-time clock system. The microSD slot supports cards in FAT32 format, and the IPEX1 connector allows connection of an external antenna.

The Case B version is adapted for mounting a 3.7 V lithium-polymer battery, however in this variant the battery is not included. The front panel contains BOOT, power, and backlight adjustment buttons. The board supports ESP-IDF and Arduino IDE programming environments, offering the possibility of implementing offline and online voice interaction.

Properties

  • ESP32-S3R8: dual-core Xtensa LX7 processor, 240 MHz
  • Memory: 512 KB SRAM, 384 KB ROM, 8 MB PSRAM, 16 MB Flash
  • Display: 3.49" IPS, 172 × 640, 16.7M colors, capacitive touch
  • Controller: AXS15231B (QSPI – LCD, I2C – touch)
  • Connectivity: Wi-Fi 2.4 GHz (802.11 b/g/n), Bluetooth 5 (LE)
  • Audio: ES8311 (DAC), ES7210 (ADC), dual digital microphone
  • Sensors: QMI8658 (3-axis accelerometer + 3-axis gyroscope)
  • RTC: PCF85063 with time backup
  • microSD slot (TF), FAT32 support
  • Power supply: prepared place for a 3.7 V lithium-polymer battery (not included)
  • Connectors: USB Type-C, IPEX1 (antenna), audio output, speaker connector, 22-pin expansion connector (2.54 mm)
  • Support for ESP-IDF and Arduino IDE
  • Support for offline/online speech recognition and voice interaction
  • Case dimensions: 98.50 × 28.99 × 22.80 mm
