ESP32-S3 development board with 1.54" e-paper display, 200 × 200 px, AIoT, Wi-Fi/Bluetooth – Waveshare 32299
ID: 1201197
zł80.21
Tax included
zł65.21 tax excl.
ESP32-S3-ePaper-1.54-EN is an energy-efficient development board with an e-paper display, Wi-Fi, Bluetooth and audio functions, designed for portable IoT projects and user interfaces. Version without an included battery, with full functionality of the power and charging circuit.
Description
ESP32-S3-ePaper-1.54-EN is a compact AIoT development board equipped with a 1.54" e-paper display with a resolution of 200 × 200 pixels, designed for low-power portable applications. It is based on the ESP32-S3 microcontroller with a dual-core Xtensa LX7 processor running up to 240 MHz and supports wireless communication via Wi-Fi 2.4 GHz and Bluetooth 5 LE. The integrated E Ink display provides excellent readability in daylight and near-zero power consumption in static mode.
The board also includes a MEMS microphone, ES8311 audio codec, SHTC3 temperature and humidity sensor, microSD card slot, programmable BOOT and PWR buttons, battery charging management circuit and GPIO, UART and I2C connectors. The “EN” version does not include a lithium battery in the set.
Properties
- Microcontroller ESP32-S3-FH4R2 (2× Xtensa LX7, 240 MHz)
- Memory: 512 KB SRAM, 384 KB ROM, integrated Flash and PSRAM
- 1.54" e-paper display, 200 × 200 px, black and white
- E Ink technology (passive display, high contrast, viewing angle >170°)
- Full refresh time: 2 s, partial: 0.3 s
- Connectivity: Wi-Fi 802.11 b/g/n (2.4 GHz), Bluetooth 5 LE
- MEMS microphone + ES8311 audio codec
- SHTC3 temperature and humidity sensor
- RTC PCF85063 (on bottom side)
- MicroSD (TF) slot, FAT32
- 3.7 V lithium battery connector (MX1.25 2-pin) with charging circuit
- Speaker connector MX1.25 2-pin
- USB Type-C connector for programming and data
- BOOT and PWR buttons (programmable)
- 2 × 6-pin female headers 2.54 mm (GPIO/UART/I2C)
- Built-in ceramic antenna
- Dimensions: 53.0 × 39.8 × 16.9 mm
- Display area: 27.8 × 27.8 mm
- Connector and button layout consistent with documentation
1201197
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Other products in the same category (16)
Module with WiFi Espressif ESP32-S2. It integrates two regulators, SPI Flash memory, LiPo charging circuit and RGB diode. It is equipped with a STEMMA QT connector. Adafruit 4775
zł125.87
24h
Available quantity: 3
Available
Function module designed for MicroMod boards. It allows you to add WiFi wireless communication based on the ESP32 chip to the project. SparkFun WRL-18430
zł87.86
24h
Available quantity: 1
Available
The IoT module combining Wi-Fi and Bluetooth (BLE) technologies, which is designed for a wide range of applications, from low-power sensor networks to the most demanding tasks such as voice coding, music streaming and MP3 decoding. Espressif ESP32-WROOM-32D 128MBit
zł32.90
1 weeks
No product available!
Module with WiFi and BLE Espressif ESP32-S3. It integrates a LiPo charging circuit and an RGB diode. Adafruit 5398
zł116.54
24h
Available quantity: 3
Available
Development board with WiFi and Bluetooth module Espressif ESP32-WROVER. It is equipped with a microSD card slot, a USB-UART converter and a Li-Ion battery charging system. TTGO T8 V1.1 ESP32
zł74.33
4 weeks
No product available!
ESP32-S3-Touch-LCD-1.9 is an advanced development board with a 1.9" touch screen, based on the ESP32-S3R8 microcontroller, offering a rich set of communication and sensor features. Intended for HMI projects, motion monitoring, and interactive applications, it is well-suited for solutions requiring a compact display and precise touch control. Thanks to compatibility with Raspberry Pi Pico and support for ESP-IDF and Arduino IDE, it enables rapid development of advanced IoT systems.
zł85.34
24h
Available quantity: 2
Available
A development board that uses the ESP32-C3 chip based on the RISC-V architecture. It has built-in 400 KB of SRAM and 4 MB of Flash memory and a clock frequency of 160 MHz. Pro Micro offers a Qwiic connector that allows you to connect any sensor that communicates via the I2C bus. SparkFun DEV-23484
zł53.41
24h
Available quantity: 3
Available
Module with WiFi Espressif ESP32. It offers 8MB Flash, 2MB PSRAM, LiPo charging circuit and RGB LED. It is equipped with a STEMMA QT connector. Adafruit 5400
zł115.69
24h
Available quantity: 1
Available
ESP32-S3-Touch-LCD-3.49 in the Case B version without a lithium-polymer battery is a compact and advanced development platform with dimensions of 98.50 × 28.99 × 22.80 mm, designed for creating projects in the field of IoT, HMI interfaces and systems with speech recognition.
zł139.89
6 weeks
No product available!
Tile with WiFi module and Bluetooth Classic + BLE ESP32 Pico. It offers 8 MB of Flash memory and 2 MB of PSRAM and an RGB LED. It is equipped with a STEMMA QT connector. Adafruit 5395
zł79.43
24h
Available quantity: 1
Available
Adafruit HUZZAH32 is a development board with a built-in WiFi ESP32 module. Processor frequency: 240 MHz, Li-Pol battery charging system. The board has soldered goldpin connectors. Adafruit 3591
zł152.38
4 weeks
No product available!
Module from the ESP32 series, combining a powerful microcontroller, Wi-Fi and Bluetooth 4.2 BLE. ESP-WROVER-B has a built-in PCB antenna, a large number of GPIO lines and small dimensions. Adafruit 3979
zł55.12
24h
Available quantity: 1
Available

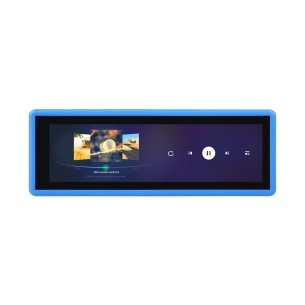

ESP32-S3-Touch-LCD-3.49 in the Case B version with a built-in 3.7 V lithium-polymer battery and compact dimensions of 98.50 × 28.99 × 22.80 mm constitutes an efficient and integrated solution for IoT projects, HMI user interfaces and applications with speech recognition.
