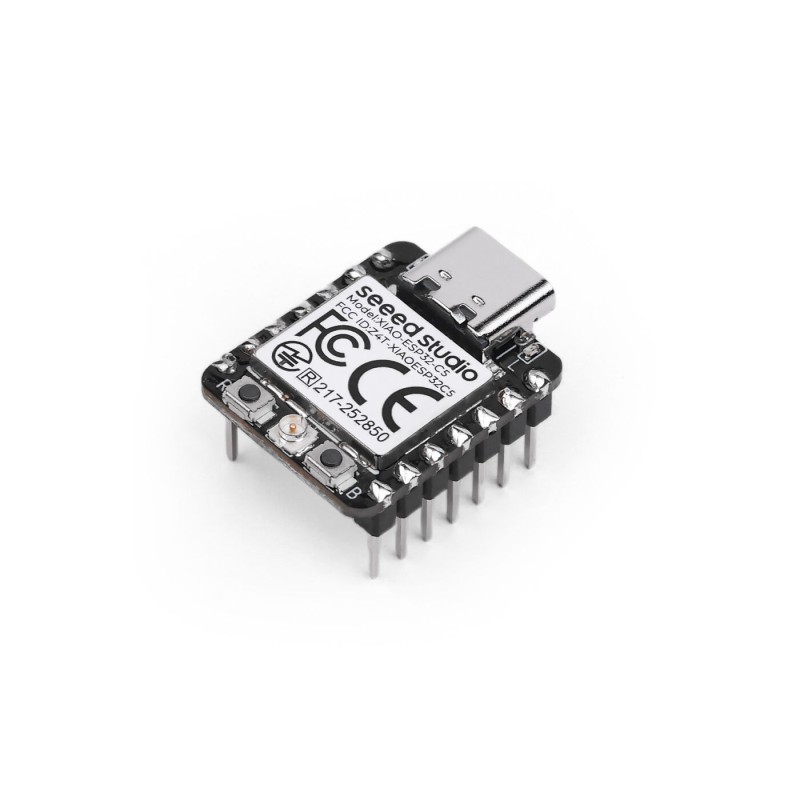

XIAO ESP32-C5 - WiFi6 5GHz development board with soldered pin headers - Seeed Studio 100093057
ID: 1203411
5902186334618
zł39.11
Tax included
zł31.80 tax excl.
Compact development board based on ESP32-C5 with dual-band WiFi6 2.4GHz and 5GHz, Bluetooth 5 LE, and IEEE 802.15.4, equipped with factory-soldered pin headers, designed for advanced low-power IoT projects. XIAO ESP32-C5 (Pre-Soldered)
Description
XIAO ESP32-C5 with soldered pin headers targets IoT projects that require modern wireless connectivity, high computational performance, and low energy consumption. The onboard ESP32-C5 microcontroller based on the RISC-V architecture supports simultaneous operation in the 2.4GHz and 5GHz WiFi6 bands, enabling stable data transmission in environments with high wireless network density.
The board supports Bluetooth 5 LE and IEEE 802.15.4, allowing implementation of projects compatible with Zigbee, Thread, and IoT protocols such as Matter, HomeKit, and MQTT. Integrated security mechanisms, including secure boot and Flash memory encryption, support firmware and user data protection. Factory-soldered pin headers facilitate rapid prototyping on breadboards and integration with expansion modules, while the battery interface and very low current consumption in deep sleep mode enable use in battery-powered devices such as sensors, network nodes, and home automation systems.
Features
- Microcontroller: ESP32-C5HR8
- Processor architecture: 32-bit RISC-V
- CPU frequency: up to 240MHz
- Low-power core frequency: up to 48MHz
- SRAM memory: 384KB
- PSRAM memory: 8MB
- Flash memory: 8MB
- WiFi connectivity: 2.4GHz and 5GHz WiFi6 802.11ax
- Bluetooth connectivity: Bluetooth 5 LE
- IEEE 802.15.4 connectivity: Zigbee, Thread
- Supported IoT protocols: Matter, HomeKit, MQTT
- Interfaces: GPIO, I2C, SPI, UART, JTAG
- Number of GPIO pins: 11
- Power supply: USB-C 5V or 3.7V battery
- Deep sleep current consumption: 15µA
- Operating temperature range: 0°C ~ 85°C
- Dimensions: 21 x 17.8 mm
- Connectors: soldered pin headers
Kit includes
- XIAO ESP32-C5 module with soldered pin headers
- FPC antenna
1203411
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
