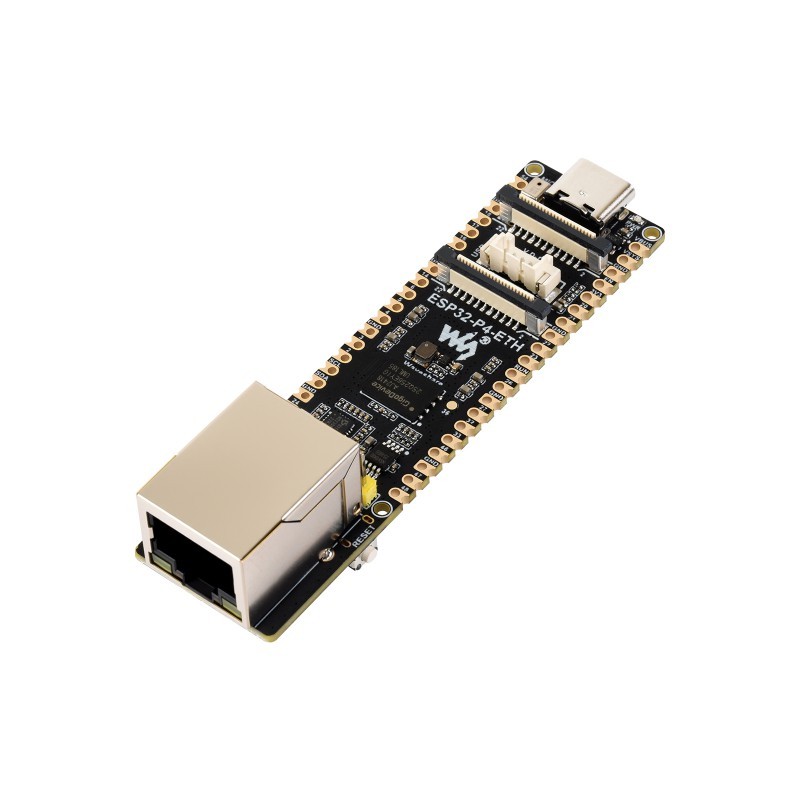

Main view
search
  • Main view
  • Included PoE module
  • Top view
  • Bottom view
  • Angled view - top
  • Angled view - bottom
  • Full kit
ID: 1204984
zł131.04
Tax included

zł106.54 tax excl.

Development board with ESP32-P4, 100 Mb/s RJ45 Ethernet port and PoE module enabling power over Ethernet. Kit extended with camera, speaker and connection cables. No soldered pin headers. Waveshare 34248

24h
Available
Available quantity: 4
Kamami is the official distributor of Waveshare displays, accessories and modules.

Description

Development board based on the ESP32-P4 chip with a dual-core RISC-V processor, designed for applications requiring high performance and advanced multimedia interfaces. The system provides 32 MB PSRAM, 32 MB Flash memory and supports advanced image and audio processing features including H.264 encoding, ISP and image processing acceleration.

                                                                     PoE: PoE module included                                           Power supply: USB Type-C or PoE


The board offers a wide range of interfaces such as MIPI-CSI for cameras, MIPI-DSI for displays, USB 2.0 OTG, SPI, I2C, I2S, UART and GPIO. The 100 Mb/s RJ45 Ethernet port enables stable network communication, while the included PoE module allows both power and data transmission over a single Ethernet cable.

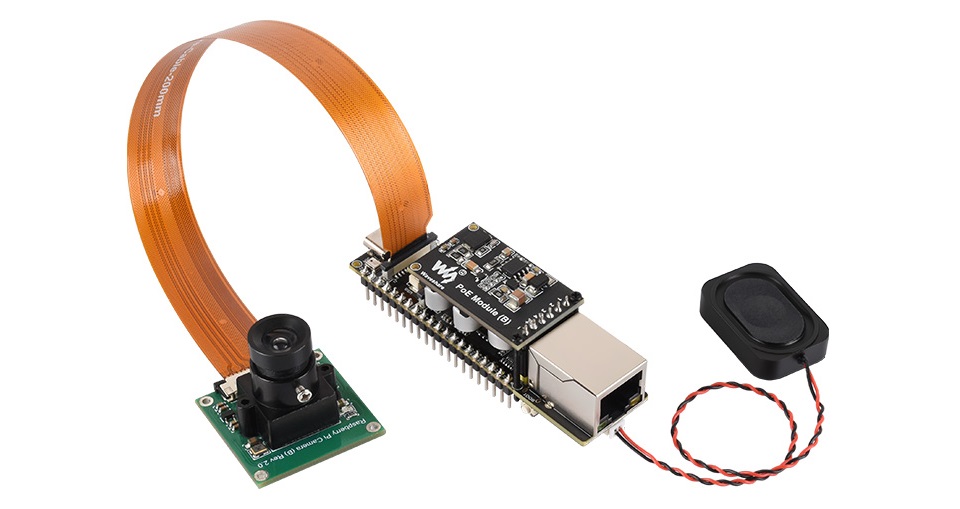

                                                                 Kit includes: development board, PoE module, OV5647 camera and 8 Ω 2 W speaker


The board also integrates a microphone, speaker connector, TF card slot and a 40-pin GPIO header compatible with selected Raspberry Pi Pico HATs. Included KIT A components such as the OV5647 camera, speaker and cables allow quick implementation of image and audio processing projects

The system supports security features such as Secure Boot, Flash Encryption and hardware cryptographic accelerators.


  1. ESP32-P4NRW32 - ESP32-P4 chip, with 32MB PSRAM
  2. 100M RJ45 Ethernet port
  3. 32MB Nor Flash
  4. Display interface - MIPI-DSI (2-lane), supports 5 / 7 / 8 / 10.1 inch DSI screens
  5. Camera interface - MIPI-CSI (2-lane), supports OV5647 camera, etc.
  6. Type-C port - for power supply, program burning
  7. Onboard microphone
  8. Speaker header - MX1.25 2P connector, supports 8Ω 2W speaker
  9. 4PIN USB header - USB OTG 2.0 High Speed interface
  10. PoE module & power supply header
  11. BOOT button - Press it when powering on or resetting to enter download mode
  12. RST Reset button
  13. Power indicator
  14. TF card slot - SDIO 3.0 interface protocol

Features

  • Microcontroller: ESP32-P4 (RISC-V)
  • Architecture: Dual-core 32-bit
  • PSRAM: 32 MB
  • Flash memory: 32 MB NOR
  • ROM: 128 kB HP ROM, 16 kB LP ROM
  • SRAM: 768 kB L2MEM, 32 kB LP SRAM, 8 kB TCM
  • Ethernet: RJ45 100 Mb/s
  • PoE: Power over Ethernet support (module included)
  • USB interface: USB Type-C, USB 2.0 OTG HS
  • Multimedia interfaces: MIPI-CSI, MIPI-DSI
  • Communication interfaces: SPI, I2C, I2S, UART, TWAI
  • PWM: LED PWM, MCPWM
  • ADC: Yes
  • RMT: Yes
  • GPIO: 40-pin header, 27 programmable GPIOs
  • Memory card slot: TF (SDIO 3.0)
  • Microphone: Built-in
  • Speaker connector: MX1.25
  • Power supply: USB Type-C or PoE
  • Security features: Secure Boot, Flash Encryption, TRNG, cryptographic accelerators

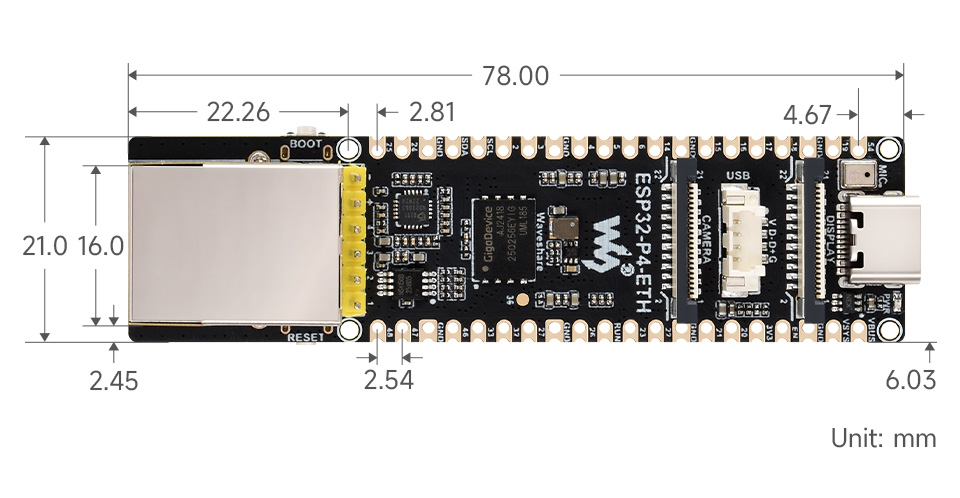

  • Dimensions: 78 x 21 x 6.03 mm
  • Weight: 0.087 kg

Kit includes

  • ESP32-P4-ETH development board
  • PoE module
  • Mounting elements set
  • OV5647 camera
  • 8 Ω 2 W speaker
  • Connection cables
  • 20-pin headers
