ESP32-S3-KORVO-2-LCD - 2.4" 320x240 Display Module with Touch Panel
ID: 1206212
5902186339521
zł199.00
Tax included
zł161.79 tax excl.

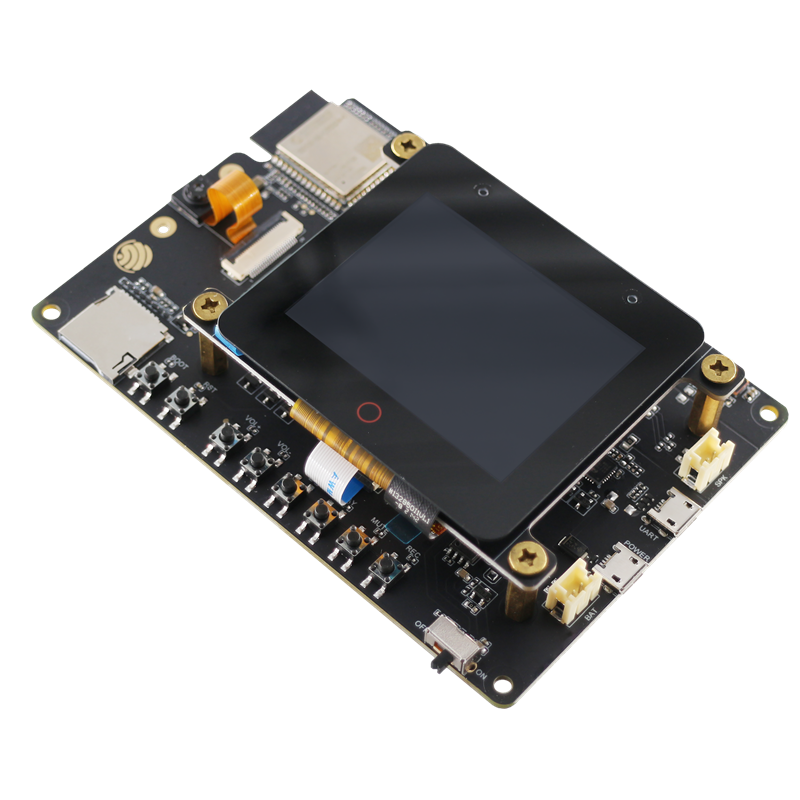

The ESP32-S3-KORVO-2-LCD V1.0 display module extends the ESP32-S3-Korvo-2 platform with a 2.4" LCD featuring a resolution of 320 x 240 px and a 10-point capacitive touch panel. The module connects to the main board via a dedicated FPC connection, while image data is transmitted over the SPI interface. The ESP32-S3-Korvo-2 board is not included with the product. Espressif ESP32-S3-KORVO-2-LCD
Description
The ESP32-S3-KORVO-2-LCD V1.0 display module extends the functionality of the ESP32-S3-Korvo-2 platform by adding a graphical user interface and touch control. The module features a 2.4" color LCD with a resolution of 320 x 240 px. The display is controlled by an Ilitek ILI934 controller, while image data is transmitted between the display and ESP32-S3 via the SPI bus.
The display integrates a 10-point capacitive touch panel, allowing the module to be used for graphical user interfaces, control panels, and devices combining touch control with the audio and multimedia capabilities of the ESP32-S3-Korvo-2 platform. The board also features a Home button, whose function is marked by the manufacturer as reserved in the current hardware revision.
Connection to the ESP32-S3-Korvo-2 main board is provided via an FPC cable. The signal connector carries power, ground, and control signals between the boards. The module also includes separate connectors for the LCD and touch panel. ESP32-S3-KORVO-2-LCD does not replace the main board and cannot operate as a standalone development board - a compatible ESP32-S3-Korvo-2 is required to use its functionality.
Features
- Model: ESP32-S3-KORVO-2-LCD V1.0
- Type: display module for ESP32-S3-Korvo-2
- Display type: LCD
- Display size: 2.4"
- Resolution: 320 x 240 px
- Display controller: Ilitek ILI934
- Display interface: SPI
- Touch panel: capacitive
- Touch support: 10 points
- Signal connector: FPC
- LCD connector: connects the LCD to the board's display driver circuit
- TP connector: connects the touch panel to the board's touch circuit
- Home button: function reserved in the current hardware revision
- Compatibility: ESP32-S3-Korvo-2
- ESP32-S3-Korvo-2 board not included
1206212
Data sheet
- Screen type
- TFT
- Diagonal (inch)
- 2,4
- Resolution
- 320 x 240 px
- Interface
- SPI
- Touch
- Yes
