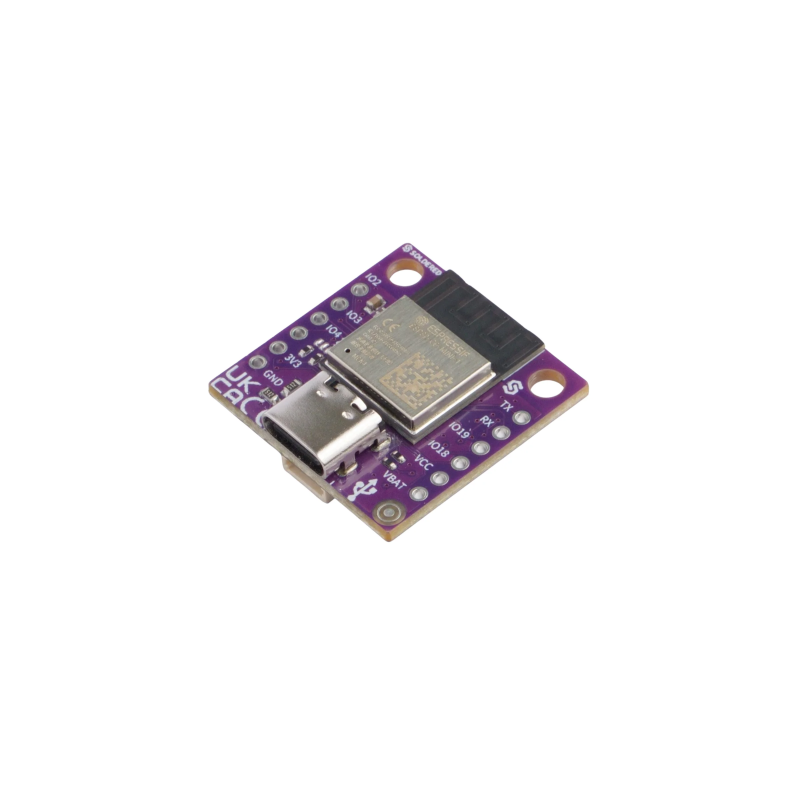

Soldered NULA Mini ESP32-C6 (with male headers) - ESP32-C6 WiFi 6 Bluetooth development board
ID: 1208361
zł66.42
Tax included
zł54.00 tax excl.
Compact development board based on the ESP32-C6-MINI-1-N4 module, equipped with male pin headers and supporting WiFi 6, Bluetooth 5.3 LE, Thread, and Zigbee protocols. It provides 4 MB of Flash memory, 512 KB of SRAM, 6 GPIO lines, a Qwiic/STEMMA QT connector, and support for a 3.7 V Li-ion battery, with dimensions of 25.33 x 25.33 mm. Soldered 333368
Description
The ESP32-C6-MINI-1-N4 module uses a 32-bit single-core RISC-V processor operating at up to 160 MHz and provides WiFi 6, Bluetooth 5.3 LE, and IEEE 802.15.4 connectivity for Thread and Zigbee. The board provides 4 MB of Flash memory, 512 KB of SRAM, and 6 GPIO lines supporting UART, SPI, I2C, PWM, and a 12-bit ADC. Deep Sleep current consumption of 7 µA enables use in energy-efficient IoT sensors, smart home devices, wearables, and battery-powered wireless systems.
The Qwiic/STEMMA QT connector enables solderless connection of compatible sensors and modules, while the JST connector with an integrated charging circuit supports 3.7 V Li-ion batteries. USB-C is used for powering and programming the board. The module also supports security features including Secure Boot, Flash encryption, and hardware cryptographic acceleration. Dimensions of 25.33 x 25.33 mm and male pin headers with a 2.54 mm pitch facilitate installation on a breadboard. Programming is supported using Arduino, MicroPython, and ESP-IDF.
Features
- Module: ESP32-C6-MINI-1-N4
- Processor architecture: 32-bit RISC-V
- Number of cores: 1
- Maximum clock frequency: 160 MHz
- Flash memory: 4 MB
- SRAM: 512 KB
- Number of GPIO lines: 6
- GPIO interfaces: UART / SPI / I2C / PWM
- ADC resolution: 12-bit
- WiFi: WiFi 6, IEEE 802.11ax
- Bluetooth: Bluetooth 5.3 LE
- IEEE 802.15.4: Thread / Zigbee
- Matter support via Thread
- Deep Sleep current consumption: 7 µA
- Security features: Secure Boot / Flash encryption / hardware cryptographic acceleration
- Expansion connector: Qwiic / STEMMA QT
- Battery support: 3.7 V Li-ion
- Battery connector: JST
- Integrated battery charging circuit
- USB connector: USB-C
- USB-C functions: power / programming
- Development environments: Arduino / MicroPython / ESP-IDF
- Header version: male pin headers
- Pin pitch: 2.54 mm
- Dimensions: 25.33 x 25.33 mm
- Breadboard-compatible design
- LEGO-compatible mounting holes
- Open-source design
- Manufactured in Croatia, EU
Kit includes
- Soldered NULA Mini ESP32-C6 board with male pin headers - 1 pc.
- USB-C to USB-C cable - 1 pc.
