Fermion: MEMS Hydrogen Sulfide H2S Gas Detection Sensor - module with hydrogen sulfide sensor
ID: 1186662
5902186311237
zł41.41
Tax included
zł33.67 tax excl.

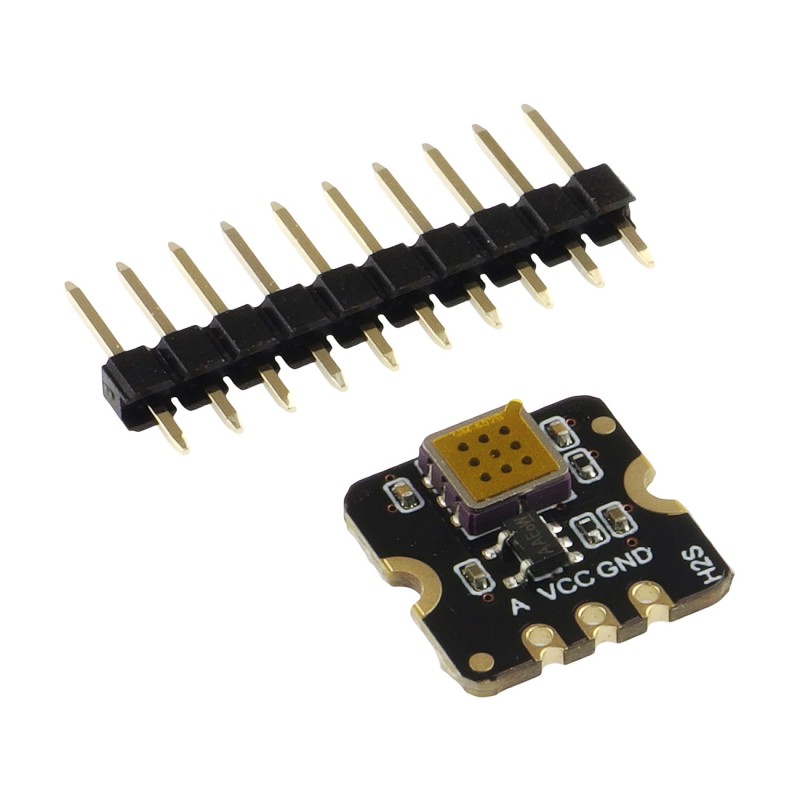

Module with hydrogen sulphide sensor made in MEMS technology. It allows gas detection in the range of 0.5 to 50 ppm and has an analog output. DFRobot SEN0568
Description
A module with a hydrogen sulphide sensor that uses the latest microelectromechanical system (MEMS) technology, thanks to which the sensor has compact dimensions, low power consumption, short acquisition time and quick response. It can measure hydrogen sulphide concentrations from 0.5 to 50 ppm and is suitable for leak alarms, e.g. in portable gas detectors. The sensor has an analog output and is supplied with a voltage of 3.3 V to 5 V. Full documentation and sample programs are available on the product page.
Features
- Detected gas: H2S
- Detection range: 0.5 to 50 ppm
- Output signal: analog
- Sensitivity: R0 (in air)/Rs (in 50ppm H2S) ≥3
- Working temperature: -10 to 50℃
- Operating humidity: 15 to 90% RH (non-condensing)
- Lifespan: ≥5 years (in the air)
- Power supply: 3.3 to 5V
- Operating Current: <20mA
- Dimension: 13×13×2.5mm
Kit contains
- Fermion: MEMS Hydrogen Sulfide H2S Gas Detection Sensor
- Goldpin male connector
1186662
Data sheet
- Interface
- Sygnał analogowy
- Type of sensor
- inny
- Power supply voltage
- 3,3 - 5 V
- Concentration measurement
- H2S
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
