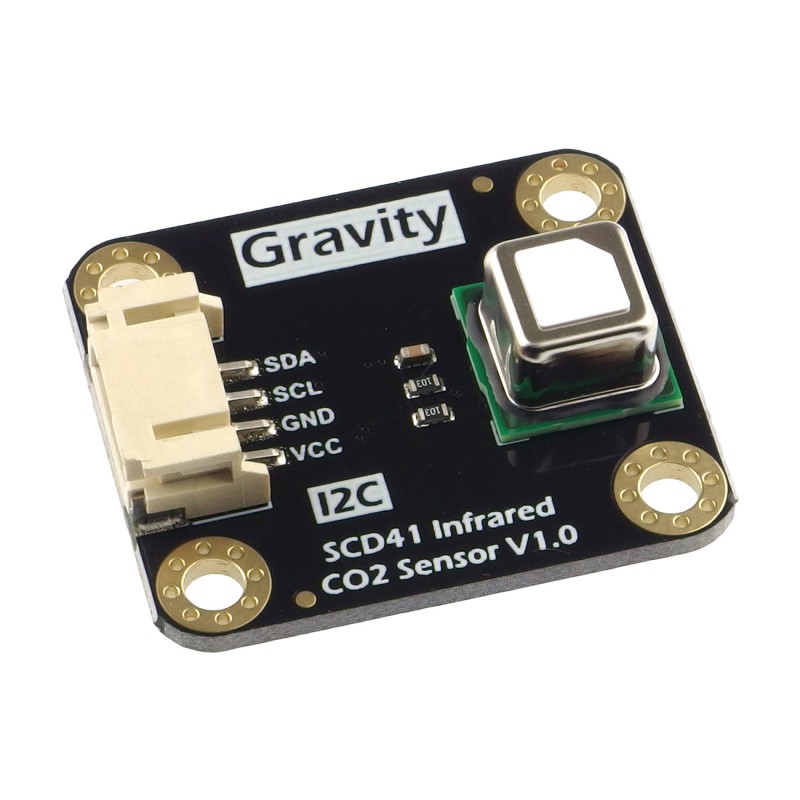

Gravity: I2C SCD41 Infrared CO2 Sensor - module with CO2, temperature and humidity sensor
ID: 1185007
5902186310865
zł197.30
Tax included
zł160.41 tax excl.
SCD41 CO2, temperature and humidity sensor module. Equipped with a Gravity connector, it communicates via an I2C interface. DFRobot SEN0536
Description
SCD41 CO2, temperature and humidity sensor module. It allows ambient carbon dioxide concentrations to be measured in the range from 400 to 5,000 ppm. In addition, it has an integrated temperature and humidity sensor, making it suitable for environmental sensing, scientific experiments and air quality studies. It can be used in systems with an operating voltage of 3.3 V or 5 V, and communication is via an I2C interface (Gravity connector). Full documentation and examples are available on the product page.
Features
- Photo acoustic CO2 sensor
- Integrated temperature and humidity sensor
- CO2 measuring range: 400 ppm - 5000 ppm
- Accuracy: ±(40 ppm + 5% of reading)
- Current consumption: 17 mA (measurement time = 5 s) / 0.5 mA (measurement time = 5 min)
- Fully calibrated
- I2C digital interface (address 0x61)
- Power supply: 3.3 V to 5 V
- Sensor element size: 10.1 x 10.1 x 6.5 mm
- Module dimensions: 32 x 27 x 8 mm
Kit contains
- Gravity module: I2C SCD41 Infrared CO2 Sensor
- Gravity-4P I2C/UART cable
1185007
Data sheet
- Interface
- I2C
- Type of sensor
- SCD-41
- Power supply voltage
- 3,3 - 5 V
- Concentration measurement
- CO2
