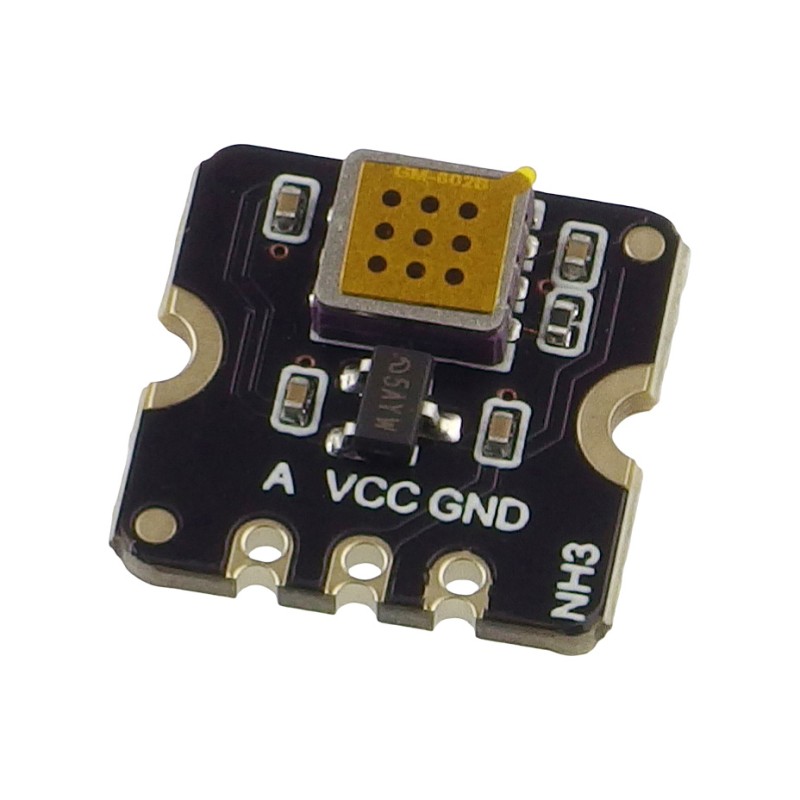

Module with ammonia sensor made in MEMS technology. It allows gas detection in the range of 1 to 300 ppm and has an analog output. DFRobot SEN0567

4 weeks
Awaiting delivery
Kamami is the official distributor of DFRobot modules and development kits. All boards of this brand in our offer are original and come directly from the manufacturer.

Description

Ammonia sensor module that uses microelectromechanical system (MEMS) technology, thanks to which the sensor has a compact size, low power consumption, short acquisition time and fast response. It can qualitatively measure concentrations in the range of 1 to 300 ppm and is suitable for generating leak alarms, e.g. in portable gas detectors. The sensor has an analog output and is supplied with a voltage of 3.3 V to 5 V. Full documentation and sample programs are available on the product page.

Features

  • Detected gas: NH3
  • Detection range: 1 to 300 ppm
  • Output signal: analog
  • Sensitivity: R0 (in air)/Rs (in 50ppm NH3) ≥ 3
  • Working temperature: -10 to 50℃
  • Operating humidity: 15 to 90% RH (non-condensing)
  • Lifespan: ≥5 years (in the air)
  • Power supply: 3.3 to 5V
  • Operating Current: <20mA
  • Dimension: 13x13x2.5mm

Kit contains

  • Fermion: MEMS Ammonia NH3 Gas Detection Sensor
  • Goldpin male connector
1186663

Data sheet

Interface
Sygnał analogowy
Type of sensor
inny
Power supply voltage
3,3 - 5 V
Concentration measurement
NH3
