Module with nitrogen dioxide sensor made in MEMS technology. It allows gas detection in the range of 0.1 to 10 ppm and has an analog output. DFRobot SEN0574

24h
Available
Available quantity: 2
Kamami is the official distributor of DFRobot modules and development kits. All boards of this brand in our offer are original and come directly from the manufacturer.


Free shipping

free shipping in Poland for all orders over 500 PLN



Same day shipping

If your payment will be credited to our account by 11:00



14 days for return

Each consumer can return the purchased goods within 14 days

Description

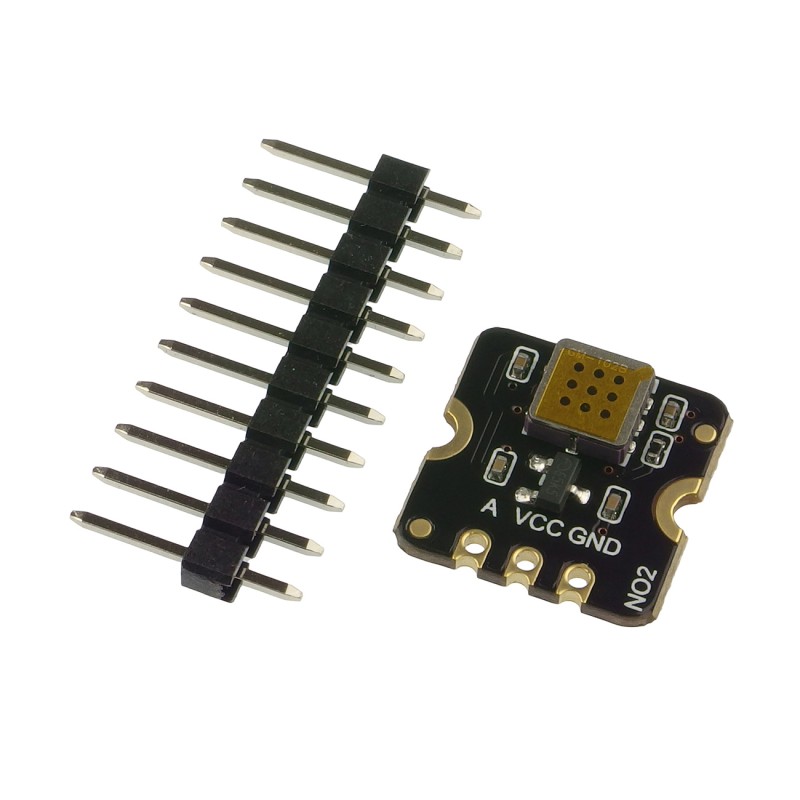

Nitrogen dioxide sensor module that uses electromechanical microsystem (MEMS) technology, thanks to which the sensor has a compact size, low power consumption, short acquisition time and fast response. It can measure concentrations from 0.1 to 10 ppm and is suitable for leak alarms, for example in portable gas detectors. The sensor has an analog output and is supplied with a voltage of 3.3 V to 5 V. Full documentation and sample programs are available on the product page.

Features

  • Detected gas: NO2
  • Detection range: 0.1 to 10 ppm
  • Output signal: analog
  • Sensitivity: R0 (in air)/Rs (in 50ppm NO2) ≥ 0.5
  • Working temperature: -10 to 50℃
  • Operating humidity: 15 to 90% RH (non-condensing)
  • Lifespan: ≥5 years (in the air)
  • Power supply: 3.3 to 5V
  • Operating Current: <20mA
  • Dimension: 13x13x2.5mm

Kit contains

  • Fermion: MEMS Nitrogen Dioxide NO2 Gas Detection Sensor
  • Goldpin male connector
1186670

Data sheet

Interface
Sygnał analogowy
Type of sensor
inny
Power supply voltage
3,3 - 5 V
Concentration measurement
NO2
