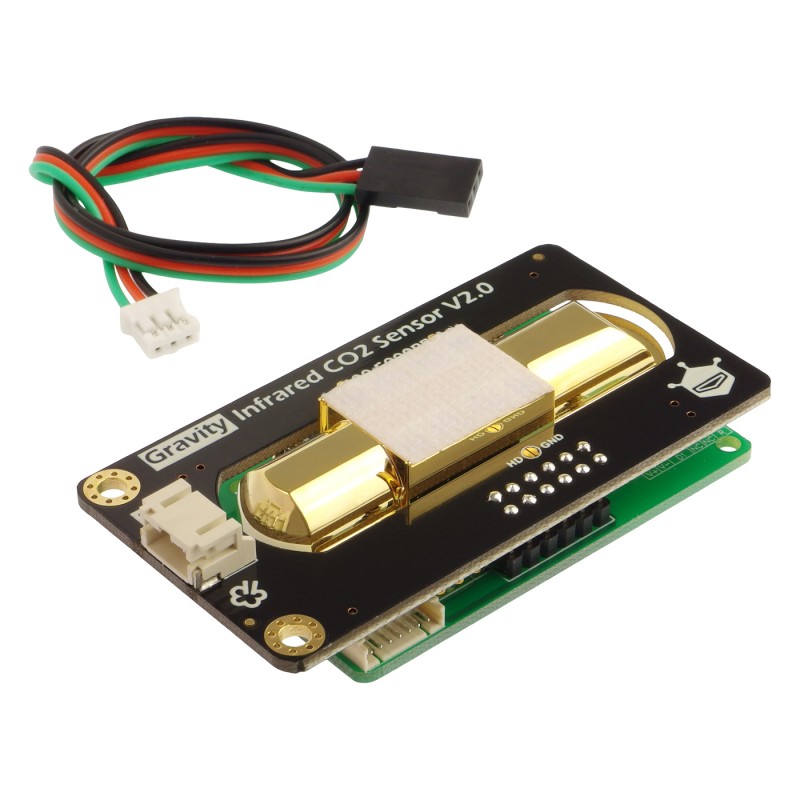

Gravity: Analog Infrared CO2 Sensor - CO2 sensor for Arduino
ID: 563061
5902186312517
zł304.30
Tax included
zł247.40 tax excl.
Gravity: Analog Infrared CO2 Sensor is a high precision analogue CO2 sensor. It measures CO2 content in the range of 0 ... 5000ppm and is compatible with all devices with ADC function. DFRobot SEN0219
Description
Gravity: Analog Infrared CO2 Sensor is a high precision analogue CO2 sensor. It measures the CO2 content in the range of 0 ... 5000 ppm. It can be supplied with voltage in the range 4.5 ... 5.5 V. The output data is represented in the form of an analog signal. Can be used with any device with ADC function.
Attention!
In order to connect the module to the microcontroller without 5V signal tolerance, a voltage level converter should be used.
This sensor is based on infrared (NDIR) technology and is characterized by good selectivity and independence from oxygen levels. In addition, its lifespan can be up to 5 years. The sensor combines the infrared absorption gas detection technology with the precision construction of optical circuits. It has such features as high sensitivity, high resolution, low energy consumption, fast response, interference of water vapor, no poisoning, high stability and long life.
Attention!
For the sensor to work properly, it should be calibrated regularly. The calibration process has been described on the product Wiki page.
This product can be widely used in HVAC systems, monitoring indoor air quality, monitoring industrial processes and safety, monitoring the production process in agriculture and animal husbandry.
The sensor is also available in the version with UART interface: Gravity: UART Infrared CO2 Sensor with a measuring range of 0 ... 50000 ppm.
properties
- Detection of carbon dioxide (CO2)
- Output signal: analog output (0.4 ... 2 V)
- Measuring range: 0 ... 5000 ppm
- Accuracy: ± (50ppm + 3%)
- Response time: 120s
- Operating humidity: 0 ... 95% RH
- Gravity connector
- Shelf life:> 5 years
- Average power consumption: <60mA @ 5V
- Maximum power consumption: 150mA @ 5V
- Supply voltage: 4.5 ... 5.5 V
- Dimensions: 37 x 69 mm
Included
- Gravity: Analog Infrared CO2 Sensor
- Gravity connection cable
563061
Data sheet
- Interface
- Sygnał analogowy
- Type of sensor
- inny
- Power supply voltage
- 4.5..5.5V
- Concentration measurement
- CO2
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
