Gravity: UART Infrared CO2 Sensor - CO2 sensor
ID: 563598
5902186312654
zł392.65
Tax included
zł319.23 tax excl.
Gravity: UART Infrared CO2 Sensor is a high precision CO2 sensor. It uses the UART interface for communication. It allows to measure CO2 content in the air in the range of 0 ... 50000ppm. DFRobot SEN0220
Description
Gravity: UART Infrared CO2 Sensor is a high precision CO2 sensor with a UART communication interface. It measures the CO2 content in the range 0 ... 50000 ppm ( parts per million - 1 part per million ) . It can be supplied with voltage in the range of 4.5 ... 5.5 V. The output data is returned via the serial UART interface available in each standard microcontroller.
Attention!
In order to connect the module to the microcontroller without 5V signal tolerance, a voltage level converter should be used .
This sensor is based on infrared (NDIR) technology and is characterized by good selectivity and independence from oxygen levels. In addition, its lifespan can be up to 5 years. The sensor combines the infrared absorption gas detection technology with the precision construction of optical circuits. It has such features as high sensitivity, high resolution, low energy consumption, fast response, interference of water vapor, no poisoning, high stability and long life.
This product can be widely used in HVAC systems, monitoring indoor air quality, monitoring industrial processes and safety, monitoring the production process in agriculture and animal husbandry.
The sensor is also available in the version with Gravity analogue interface : Analog Infrared CO2 Sensor with a measuring range of 0 ... 5000 ppm.
properties
- Detection of carbon dioxide (CO2)
- Measuring range: 0 ... 50000 ppm
- Accuracy: ± (50ppm + 5%)
- Response time: 30s
- Interface: UART
- Gravity connector
- Operating humidity: 0 ... 95% RH
- Shelf life:> 5 years
- Working temperature: 0 ... 50 ?
- Supply voltage: 4.5 ... 5.5 V
- Average power consumption: <85 mA
- Maximum power consumption: 150 mA
- Board dimensions: 21 x 27.11 mm
- Probe dimensions: 17 x 20 x 97 mm
- Weight: 42 g
Included
- UART Infrared CO2 Sensor
- Transducer board
- 6-pin cable
- Connecting cable Gravity (PH2.0 Gravity UART)
- 4-pin goldpin connector (XH2.54)
563598
Data sheet
- Interface
- UART
- Type of sensor
- inny
- Power supply voltage
- 4.5..5.5V
- Concentration measurement
- CO2
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
You might also like
Gravity: Analog Infrared CO2 Sensor is a high precision analogue CO2 sensor. It measures CO2 content in the range of 0 ... 5000ppm and is compatible with all devices with ADC function. DFRobot SEN0219
zł304.30
24h
Available quantity: 1
Available
Digital gas sensor solution that senses a wide range of Total Volatile Organic Compounds (TVOCs), including equivalent carbon dioxide (eCO2) and metal oxide (MOX) levels, intended for indoor air quality monitoring in personal devices such as watches and phones, but we’ve put it on a breakout board so you can use it as a regular I2C device. SEN-14193
zł193.38
24h
Available quantity: 2
Available
Module with SGP30 gas sensor. The sensor communicates via the I2C interface. SGP30 system contains several elements reacting to various metal oxides, which allows for more accurate determination of air quality. Adafruit 3709
zł111.60
24h
Available quantity: 1
Available
Module with a CO2 sensor based on the XENSIV PAS CO2 system from Infineon. It enables precise measurement of CO2 concentration in ppm via I2C, UART and PWM interfaces. SparkFun SEN-2295
zł339.00
Delivery date unknown
No product available!
Other products in the same category (16)
The MQ-4 sensor allows methane concentration measurement. The measuring range of the sensor reaches up to 10,000 ppm and an analogue signal is obtained at the output.
zł4.11
24h
Available quantity: 3
Available
The MQ-6 sensor allows the measurement of LPG, propane and isobutane. The measuring range of the sensor is in the range of 300 - 10.000 ppm, while the output receives an analog signal.
zł6.03
24h
Available quantity: 2
Available
The MQ-7 sensor allows you to measure the concentration of carbon monoxide (carbon monoxide). The measuring range of the sensor is in the range of 10 - 10,000 ppm
zł8.25
24h
Available quantity: 3
Available
The MQ-9 sensor allows the measurement of gas concentrations such as carbon monoxide, propane and methane. Sensor measuring range: 10 - 10,000 ppm
zł7.17
24h
Available quantity: 6
Available
The MQ-8 sensor allows the measurement of hydrogen concentration in the air. The measuring range of the sensor is in the range of 100 - 10,000 ppm.
zł10.00
24h
Available quantity: 3
Available
The MQ-5 sensor allows the measurement of alcohol and gas concentrations, such as methane, LPG, and carbon monoxide. Sensor measuring range: up to 10,000 ppm
zł4.26
4 weeks
No product available!
The module with a smoke sensor and flammable gases (MQ-2) allows the measurement of gas concentrations such as natural gas, hydrogen as well as smoke and ethanol. The module has an analogue output and an output triggered by exceeding the threshold of sensitivity. modMQ-2
zł5.18
24h
Available quantity: 3
Available

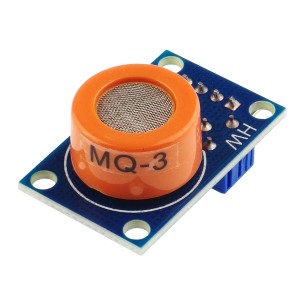

The module with an alcohol sensor (MQ-3), allows you to measure the concentration of ethanol in the air. The module has an analogue output and an output triggered by exceeding the threshold of sensitivity.
