zł199.44 tax excl.
The Arduino expansion board is dedicated to applications that use NB-IoT communication. Thanks to the GNSS (Global Navigation Satellite System) module, it supports GPS, GLONASS, Galileo, QZSS and BeiDou navigation systems. The module is supplied with the voltage from 7 to 12 V. DFRobot DFR0572
Free shipping
free shipping in Poland for all orders over 500 PLN
Same day shipping
If your payment will be credited to our account by 11:00
14 days for return
Each consumer can return the purchased goods within 14 days
Description
Expansion board with wireless communication modules for Arduino. It is based on the SIM7000A chip from SIMCom. The module supports multi-frequency LTE-FDD, GPRS/EDGE and NB-IoT communication. SIM7000A is commonly used with frequency bands in America.
NB-IoT (Narrow Band-Internet of Things) technology is a new field that supports the connection to the cellular network of a low-power WAN (Wide Area Network) device, also known as LPWAN. NB-IoT operates in the authorized frequency spectrum. It can be directly implemented in GSM, UMTS, LTE systems without any disruptions to the current networks.
The expansion board has a built-in GNSS (Global Navigation Satellite System) module that supports GPS, GLONASS, Galileo, QZSS and BeiDou navigation systems. It has slots for a SIM card (so it can be used for standard operations performed on the phone, such as calling or sending SMS messages), as well as an NB-IoT card, which enables communication within the NB-IoT technology. In addition, the module has a BME280 environmental sensor, which allows you to monitor temperature, humidity and pressure, e.g. within NB-IoT.
Full documentation with examples is available on the product page.
Features
- Intended for use with Arduino boards
- Communication module: TDD-LTE, FDD-LTE B2/B4/B12/B13, GPRS/EDGE
- Configured using AT commands
- Support for GNSS navigation (GPS, GLONASS, BeiDou, Compass, Galileo, QZSS)
- SIM card slot and NB-IoT
- BME280 environmental sensor: measurement of air temperature, pressure and humidity
- Operating temperature: -30 to 85 ℃
- Supply voltage: 7 to 12 V
- Dimensions: 53.4 x 68.6 mm

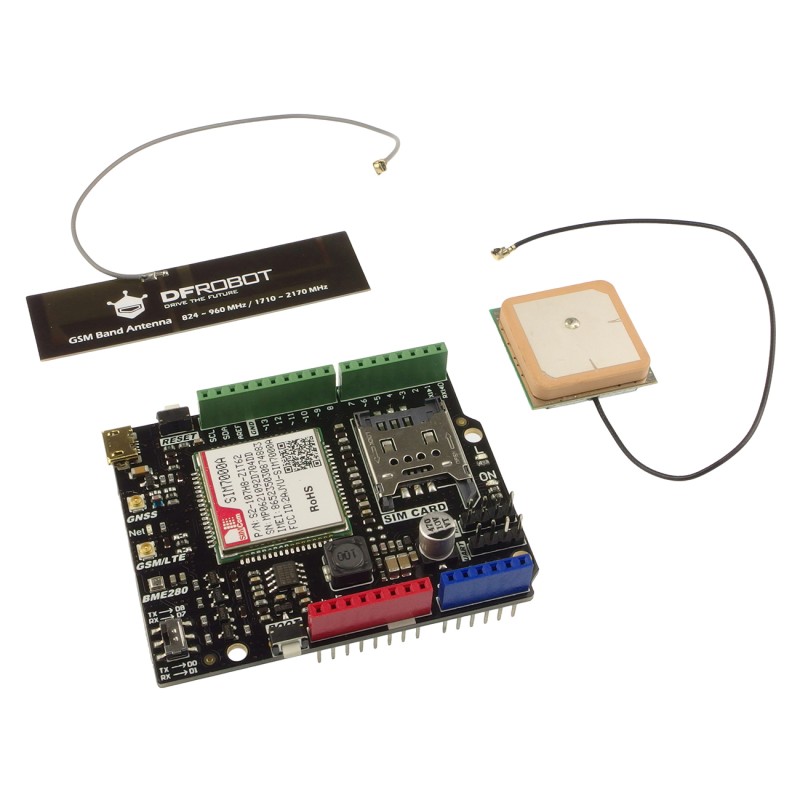

Kit contains
- Board SIM7000A Arduino NB-IoT Expansion Shield
- GPS antenna
- GSM antenna
