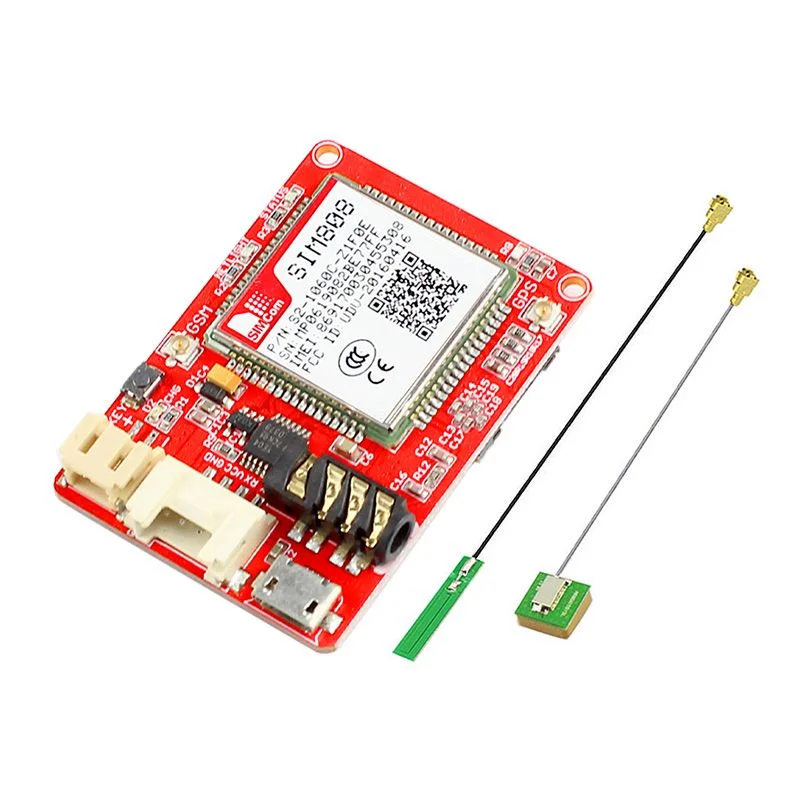

Crowtail-SIM808-GPRS-GSM+GPS-V1.1 – GSM/GPRS and GPS communication module, SIM808, 850/900/1800/1900 MHz, GPS/A-GPS, 3.7 V
ID: 1201693
zł149.76
Tax included
zł121.76 tax excl.
The Crowtail-SIM808-GPRS-GSM+GPS-V1.1 module combines GSM/GPRS wireless communication functions and GPS localization in a single board. Thanks to support for AT commands and standard connectors, it is used in mobile projects, GPS tracking and remote data transmission.
Description
The Crowtail-SIM808-GPRS-GSM+GPS-V1.1 module based on the SIM808 chip from SIMCom combines GSM/GPRS communication functions and a GPS receiver in a compact form. It supports quad-band GSM transmission (850/900/1800/1900 MHz) and A-GPS technology, enabling satellite localization, sending SMS messages, data transmission and voice functions. The built-in Crowtail connector simplifies integration with development boards. The module requires an external microcontroller with UART (e.g. Arduino) to operate, and the micro USB port is used exclusively for charging a 3.7 V lithium-polymer battery. The board includes LED indicators for power and network connection, and uFL sockets for external GSM and GPS antennas. Additionally, the module is equipped with a standard Micro SIM slot and a TRRS headphone jack for voice communication.
Properties
- SIM808 chip – GSM/GPRS communication and GPS receiver in one module
- Support for quad-band GSM/GPRS: 850/900/1800/1900 MHz
- GPS/CNSS receiver with A-GPS support
- GPS sensitivity: 22 tracking channels, 66 acquisition channels
- Control via AT commands (3GPP TS 27.007, 27.005 and SIMCOM extended commands)
- Power supply from a 3.7 V Li-Po battery
- Built-in battery charging circuits
- Sleep mode current consumption: 1 mA
- Micro SIM connector
- GPRS transmission speed: up to 85.6 kb/s
- uFL connectors for external GSM and GPS antennas
- TRRS headphone jack (compatible with Android/iPhone headsets)
- Dimensions: 50 × 35 mm
Included
- Crowtail-SIM808 x1
- GSM antenna x1
- GPS antenna x1
- Crowtail cable x1
