reComputer Rugged J4012 - Edge AI Computer NVIDIA® Jetson Orin™ NX 16GB IP66 - Seeed Studio 100046979
ID: 1209884
zł12,462.51
Tax included
zł10,132.12 tax excl.

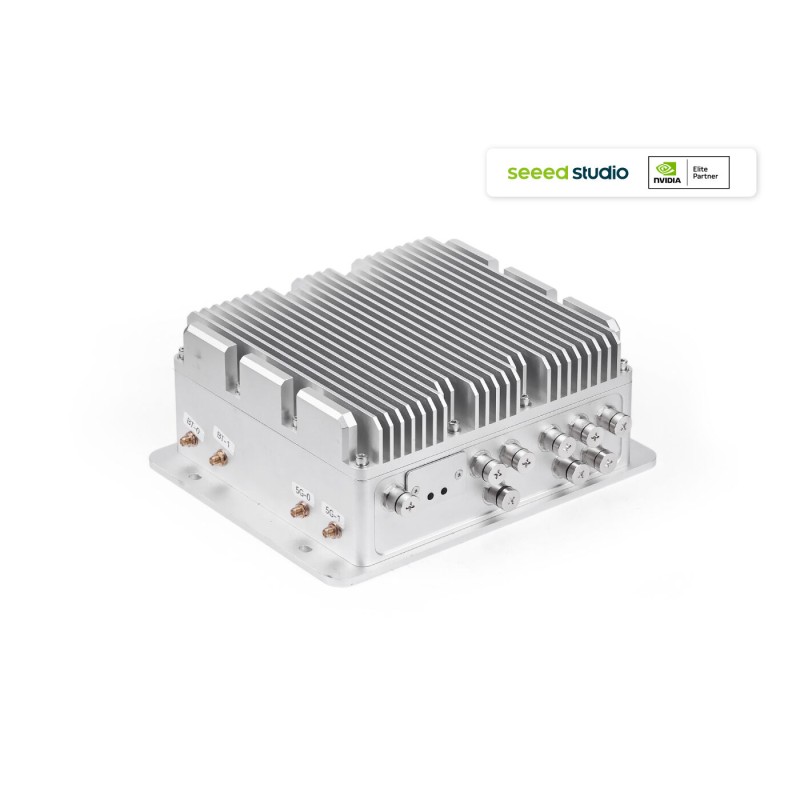

The Seeed Studio reComputer Rugged J4012 industrial Edge AI computer features NVIDIA® Jetson Orin™ NX 16GB with AI performance of up to 100 TOPS. The IP66-rated design, M12 connectors and protected USB ports support operation in demanding environments, while available interfaces include 5 x Gigabit Ethernet, CAN, RS-232 / RS-422 / RS-485 and digital inputs and outputs. The computer comes with a 128GB NVMe SSD and WiFi 6 module, while the M.2 Key B slot allows expansion with a 5G module.
Description
The Seeed Studio reComputer Rugged J4012 industrial computer equipped with NVIDIA® Jetson Orin™ NX 16GB delivers AI performance of up to 100 TOPS (INT8), enabling local execution of artificial intelligence algorithms, image analysis and sensor data processing. The module features an 8-core Arm® Cortex-A78AE v8.2 processor and an NVIDIA Ampere GPU with 1024 CUDA® cores and 32 Tensor Cores. It also provides 16GB LPDDR5 memory with 102.4GB/s bandwidth, two NVDLA v2.0 accelerators and a PVA v2.0 vision accelerator.
The IP66-rated enclosure supports operation in demanding environmental conditions. The metal construction with passive heat dissipation is combined with M12 connectors and protected USB ports. The operating temperature range extends from -20°C to 60°C, while the 19V to 48V DC input allows integration with industrial power systems, including 48V installations.
A 128GB NVMe SSD and WiFi 6 module are included in the factory configuration. The M.2 Key M slot supports NVMe 2280 drives, while the M.2 Key E slot is intended for the WiFi module. An additional M.2 Key B slot allows installation of a 5G module, and the Nano-SIM slot enables cellular connectivity when a compatible modem is installed.
The extensive range of interfaces allows cameras, sensors and industrial devices to be connected directly. reComputer Rugged J4012 provides 5 Gigabit Ethernet ports, including 4 PSE ports compliant with IEEE 802.3af, 2 CAN interfaces, RS-232 / RS-422 / RS-485, as well as 2 digital inputs and 2 digital outputs. The computer also provides 4 USB 3.0 Type-A ports, USB Type-C connectors for debugging and Recovery mode, and an HDMI 2.1 output.

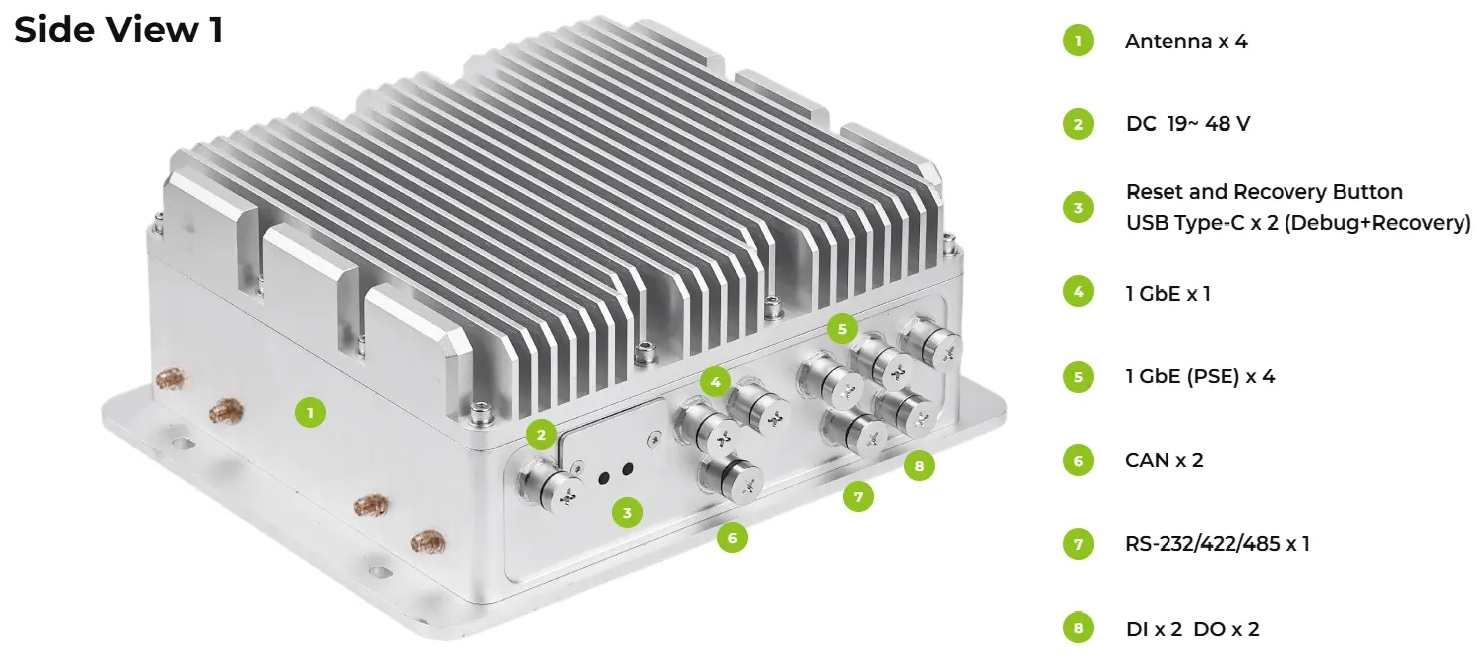

The first connector panel groups the communication and industrial interfaces. It includes an M12 A-code 19V to 48V DC power connector, Reset and Recovery buttons, USB Type-C ports for debugging and Recovery mode, one Gigabit Ethernet port and four Gigabit Ethernet PSE ports. The panel also provides access to two CAN buses, an RS-232 / RS-422 / RS-485 interface, as well as two digital inputs and two digital outputs.

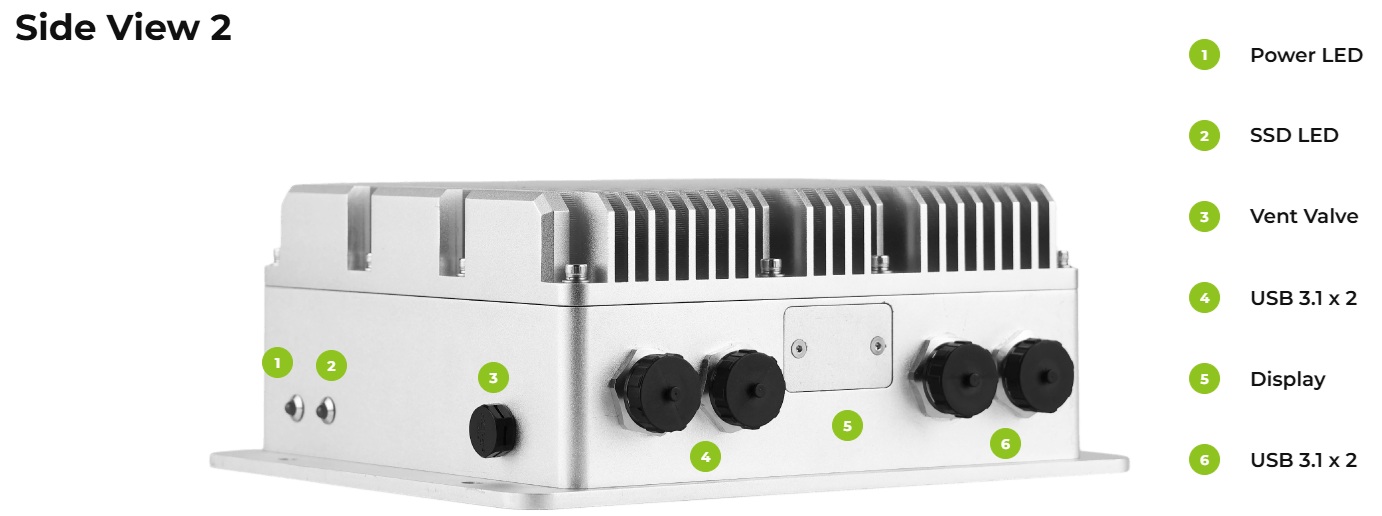

The second panel provides access to USB ports and the video output. Four protected USB 3.0 Type-A ports can be used with cameras, sensors, storage devices and other peripherals. The USB Type-A ports operate in Host mode and share 5Gb/s bandwidth. The panel also includes an HDMI 2.1 output, power and SSD activity LEDs, and a vent valve.

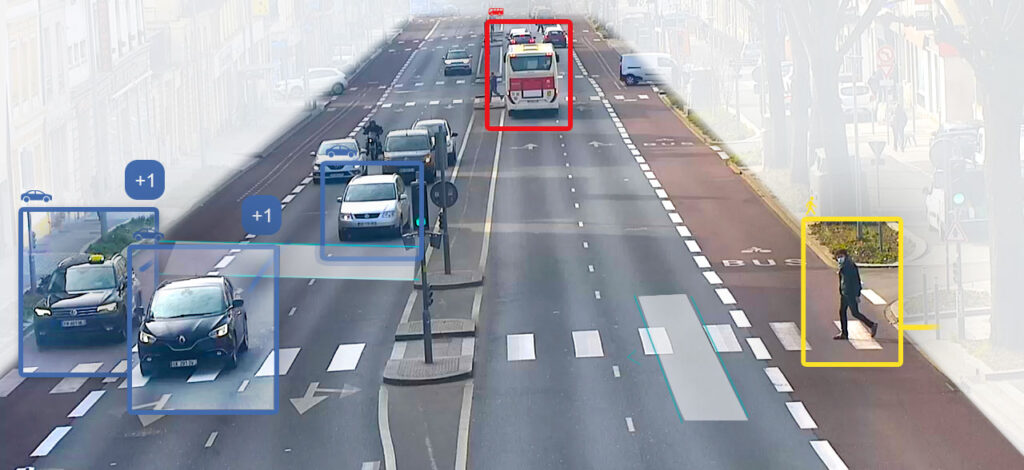

Outdoor video analytics can be performed locally using NVIDIA® Jetson Orin™ NX 16GB. The IP66 protection rating and operating temperature range from -20°C to 60°C allow reComputer Rugged J4012 to be used in outdoor monitoring and video analytics systems
The platform provides the computing resources required to run AI models for applications such as object detection and classification or video stream analysis without transferring all data to external computing infrastructure.
Autonomous logistics systems increasingly use AMRs for tasks performed both inside buildings and in outdoor environments. Robots designed for autonomous patrols, material transport or last-mile delivery need to navigate changing environments independently and respond to obstacles encountered along their route. reComputer Rugged J4012 with NVIDIA® Jetson Orin™ can serve as the central computing unit of a navigation system combining data from LiDAR, cameras, ultrasonic sensors and GPS. Such configurations can support mapping of complex environments and real-time detection of pedestrians, vehicles and other obstacles.
The kit includes a complete reComputer Rugged J4012 configuration with an NVIDIA® Jetson Orin™ NX 16GB module and a 128GB NVMe SSD. The package also includes the Seeed Studio reComputer Rugged J401 carrier board, aluminum enclosure with heatsink, waterproof USB Type-A to USB Type-A cable, M12 A-code power cable, M12 A-code 8-pin cable, M12 X-code to RJ45 cable, DC power cable, USB Type-C to USB Type-A cable, female and male terminal blocks, and user manual.
Features
- Computing Platform
- Manufacturer: Seeed Studio
- Model: reComputer Rugged J4012
- SKU: 100046979
- Module: NVIDIA® Jetson Orin™ NX 16GB
- AI performance: up to 100 TOPS (INT8)
- GPU: NVIDIA Ampere, 1024 CUDA® cores, 32 Tensor Cores
- CPU: 8-core Arm® Cortex-A78AE v8.2 64-bit
- Maximum CPU frequency: 2GHz
- DL accelerators: 2 x NVDLA v2.0
- Vision accelerator: PVA v2.0
- RAM: 16GB LPDDR5, 128-bit
- Memory bandwidth: 102.4GB/s
- System: NVIDIA JetPack 5.1.3
- Storage and Expansion
- Storage: 128GB NVMe SSD
- M.2 Key M slot: NVMe 2280
- M.2 Key E slot: WiFi module
- Wireless connectivity: WiFi 6
- M.2 Key B slot: 5G module
- SIM card slot: Nano-SIM
- Communication Interfaces
- Ethernet: 5 x Gigabit Ethernet
- PSE: 4 x Gigabit Ethernet PSE, IEEE 802.3af
- CAN: 2 x CAN
- Serial interface: 1 x RS-232 / RS-422 / RS-485
- Digital inputs: 2 x DI
- Digital outputs: 2 x DO
- USB and Multimedia
- USB: 4 x USB 3.0 Type-A
- USB Recovery: 1 x USB 3.0 Type-C
- USB Debug: 1 x USB 2.0 Type-C
- Video output: HDMI 2.1
- Additional Interfaces and Components
- RTC: RTC socket and 2-pin connector
- Indicators: PWR and SSD LEDs
- Buttons: Reset, Recovery
- Power Supply
- Input voltage: 19V to 48V DC
- Power connector: M12 A-code
- Mechanical and Environmental Parameters
- Protection rating: IP66
- Operating temperature: -20°C to 60°C
- Enclosure dimensions: 210 x 190 x 95 mm
- Bottom panel dimensions: 250 x 210 mm
- Weight: 3.5kg
- Installation: desktop or wall mounting
Kit includes
- NVIDIA® Jetson Orin™ NX 16GB module
- Seeed Studio reComputer Rugged J401 carrier board
- 128GB NVMe SSD
- Aluminum enclosure with heatsink
- Waterproof USB Type-A to USB Type-A cable
- M12 A-code power cable
- M12 A-code 8-pin cable
- M12 X-code to RJ45 cable
- Female terminal block
- Male terminal block
- DC power cable
- USB Type-C to USB Type-A cable
- User manual
