- New
M5StickS3 ESP32S3 Mini IoT Dev Kit - IoT development kit with ESP32-S3 module
ID: 1203468
zł94.45
Tax included
zł76.79 tax excl.
This ESP32-S3-based development kit features Wi-Fi, 8MB Flash, and 8MB PSRAM, ideal for IoT projects, remote control, and smart interfaces. A built-in 1.14-inch color display, a 6-axis IMU sensor, and a full audio path with a microphone and speaker enable the development of advanced multimedia and voice applications. Integrated IR transmitter and receivers allow the module to function as a smart home control center. M5Stack K150
Description
M5StickS3 ESP32S3 Mini IoT Dev Kit is a compact yet highly capable development kit designed for remote control, IoT applications, and smart user interfaces. At its core is the modern ESP32-S3-PICO-1-N8R8 system-on-chip, delivering dual-core performance and 2.4 GHz Wi-Fi connectivity. Built-in 8 MB Flash and 8 MB PSRAM enable advanced projects, including AI applications and real-time data processing.
The module features a 1.14” color LCD display, ideal for presenting data, system status, and control interfaces. Thanks to the 6-axis IMU sensor, it can detect motion and orientation, enabling gesture-based control. An advanced audio subsystem with the ES8311 codec, MEMS microphone, and AW8737 amplifier supports projects involving voice recognition and audio communication. The integrated IR transmitter and receiver make the device an excellent smart home control hub. A built-in 250 mAh battery allows mobile operation without constant external power, while the magnetic back simplifies mounting in various environments. Support for popular development platforms makes the StickS3 suitable for both hobbyists and professionals. It is a versatile tool for rapid prototyping and learning embedded systems, ideal for IoT projects, AI voice assistants, and home automation.

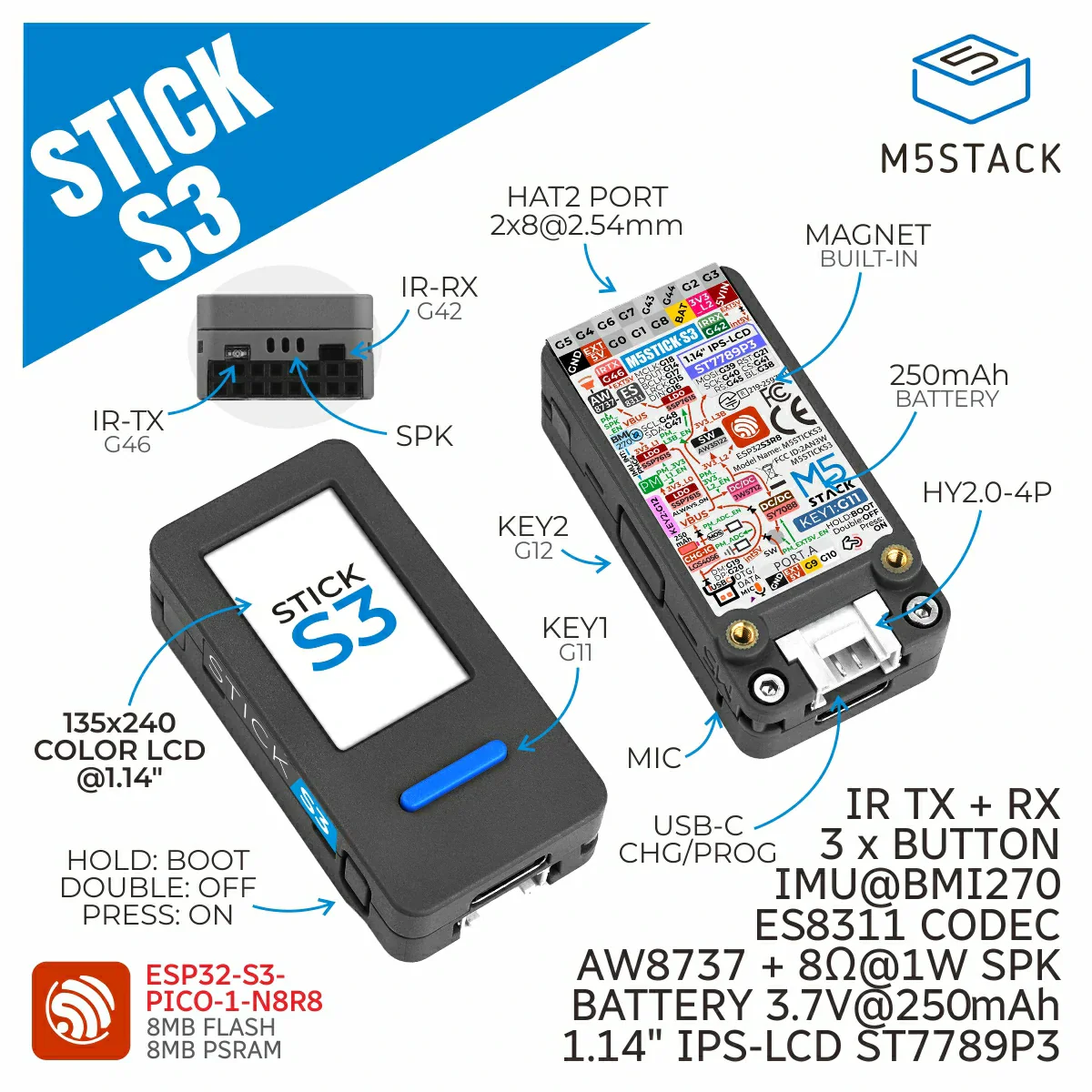

Features
- SoC: ESP32-S3-PICO-1-N8R8, dual-core Xtensa LX7 up to 240 MHz
- Flash Memory: 8 MB
- PSRAM: 8 MB
- Connectivity: 2.4 GHz Wi-Fi
- Display: 1.14” LCD ST7789P3, resolution 135 × 240
- IMU: 6-axis motion sensor
- Audio: ES8311 codec (24-bit, I2S)
- Microphone: MEMS, 65 dB SNR
- Speaker: 8Ω / 1W with AW8737 amplifier
- IR: integrated infrared transmitter and receiver
- Expansion Interfaces: Hat2 (2.54-16P), HY2.0-4P
- Supported Environments: Arduino, UiFlow2, ESP-IDF, PlatformIO
- Power Supply: USB Type-C, 5 V DC
- Battery: 250 mAh Li-ion
- Operating Temperature Range: 0–40°C
- Power Consumption (full load): up to 519 mA
- Dimensions: 48 × 24 × 15 mm
- Weight: 20 g
1203468
Data sheet
- Microcontroller
- ESP32-S3
- Flash memory
- 8 MB
- Number of I/O
- 04
- Ethernet
- none
- WiFi/BT module
- Yes
- Bluetooth module
- No
- MicroSD slot
- No
- Length
- 48mm
- Width
- 24mm
- USB connector type
- USB type C
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
