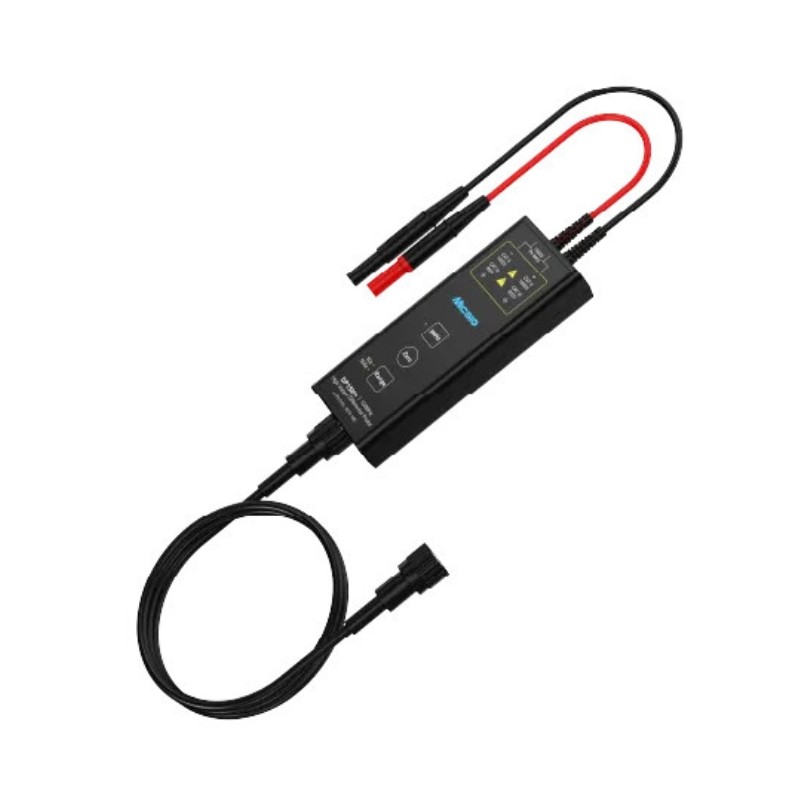

DP702 - 100MHz high voltage differential probe
ID: 1188720
5906623400034
zł1,125.52
Tax included
zł915.06 tax excl.
Micsig differential probe from the DP series designed for high-voltage and differential signal measurements. Offers 100 MHz bandwidth and supports voltage measurements up to 700 V. Features a standard BNC connector and USB Type-C power supply. The current product revision includes a new enclosure with three function buttons. Micsig DP700
Description
High-voltage differential probe from the Micsig DP series designed for high-voltage and differential signal measurements. The probe features very low noise, excellent amplitude-frequency characteristics at high voltage, and high common-mode rejection capability (CMRR). These characteristics allow accurate testing of high-frequency and high-voltage signals in power electronics, switching power supplies, motor drives, and inverter systems. The probe includes a 5 MHz bandwidth limit function that effectively suppresses high-frequency interference during switching frequency measurements in most switching power supplies. In addition, the automatic zero calibration function allows quick probe offset calibration. The design offers two attenuation ranges: 20X and 200X, improving the signal-to-noise ratio and allowing adjustment to different measurement requirements. The standard BNC connector ensures compatibility with most oscilloscopes, while USB Type-C power eliminates the need for an additional external power source.
Additional features such as overvoltage warning with flashing LED and buzzer alarm allow users to quickly react to overload conditions. The DP series also features a compact and elegant design, significantly smaller than traditional differential probes. The probe provides excellent bandwidth flatness with amplitude fluctuation below 0.5 dB within half of the bandwidth range, ensuring high measurement accuracy even at high frequencies. High input impedance and low input capacitance minimize loading effects and significantly improve differential signal measurement accuracy. The USB Type-C interface also supports communication and command-based control for automated testing integration.
The probe can be widely used for AC voltage measurements, isolated high-voltage measurements, switching power supply design, power converter testing, inverter systems, induction heating systems, and motor control applications. The compact construction makes it suitable for both electronics laboratories and industrial environments. The current product revision features a new enclosure with three function buttons.
Features
- Bandwidth: 100 MHz
- Rise time: ≤ 3.5 ns
- Attenuation ratio: 20X, 200X
- Accuracy: ±2%
- Max. differential voltage (DC+AC PK):
- 20X: 70V
- 200X: 700V
- Max. common mode voltage: CAT I 600V, CAT II 450V
- Noise:
- Full Bandwidth:
- 20X: ≤ 20 mVrms
- 200X: ≤ 90 mVrms
- Full Bandwidth:
- CMRR:
- DC: > -80 dB
- 100 kHz: > -60 dB
- 10 MHz: > -30 dB
- 100 MHz: > -26 dB
- Input impedance:
- Differential mode: 6 MΩ, 1.67 pF
- Common mode: 3 MΩ, 3.3 pF
- Delay:
- 20X: 11.7 ns
- 200X: 11.7 ns
- Output voltage: ≤ 3.5 V
- 5 MHz bandwidth limit
- Automatic zero calibration function
- Dual operating ranges
- Range memory function after power-off
- Overvoltage indication: LED and buzzer
- BNC connector
- Power supply and communication: USB Type-C
- Command-based control and automated testing support
- Operating temperature range: 0℃ to 40℃
- Cable length: approx. 31 cm (input), approx. 100 cm (output)
- Dimensions: 135 × 50 × 25 mm
Kit contains
- Micsig DP700 differential probe
- USB Type-C cable
- BNC cable
- 2 x alligator clips
- 2 x test hooks
- 2 x input extension cables
- Power adapter
- Quick start guide
1188720
