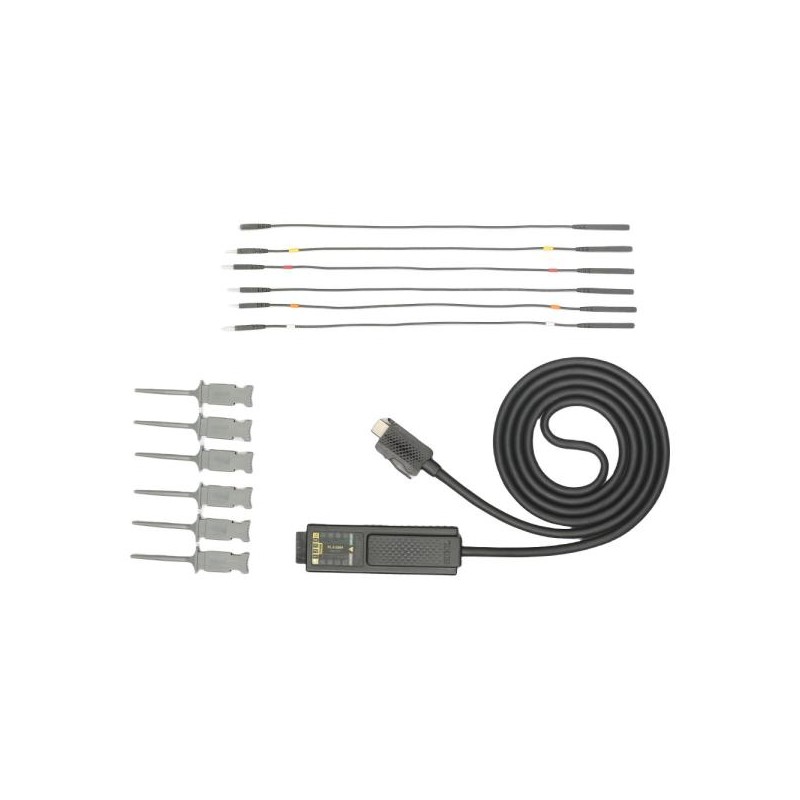

RIGOL PLA3204 active logic probe
ID: 1198301
zł767.40
Tax included
zł623.90 tax excl.
The RIGOL PLA3204 analyzes logic signals with a maximum time resolution of 5 ns, ensuring high compatibility with various voltage standards. It is indispensable for diagnostics and testing of digital circuits using RIGOL MHO5000 and DHO5000 series oscilloscopes. RIGOL PLA3204
Description
The RIGOL PLA3204 logic probe enables direct connection of digital signals from the device under test (DUT) to RIGOL MHO5000 and DHO5000 series digital oscilloscopes via a USB Type-C connector. The probe transforms the oscilloscope into a logic analyzer, providing four data channels and eight ground channels. The included test leads allow flexible connection to the signal under test and reference points.
The probe's high input impedance and low capacitance enable precise sampling of digital signals without significantly affecting the DUT. The minimum detectable pulse width of 5 ns allows for the analysis of fast signals. The probe allows for adjustable switching thresholds within a range of ±15 V, ensuring compatibility with various logic standards.
The kit includes four signal leads and two ground leads, as well as a set of test clips for easy connection to various PCB connectors. Integrated LEDs on the probe indicate channel activity and simplify setup.
The probe is intended for laboratory and service applications, supporting the design, testing, and diagnostics of digital systems.
Features
- Number of input channels: 4
- Switching threshold range: ±15 V
- Threshold accuracy: ±(100 mV + 3% of threshold)
- Maximum input voltage: ±40 V (peak)
- Input dynamic range: ±10 V + set threshold
- Minimum signal amplitude: 500 mVp-p
- Minimum detected pulse width: 5 ns
- Input impedance: 100 kΩ ±1%
- Input capacitance: approx. 11 pF
- Probe cable length: approx. 120 cm
- Test cable length: approx. 25 cm
- Operating temperature range: 0°C to 50°C
- Storage temperature range: -20°C to 60°C
- Relative humidity: up to 80% (operation), up to 90% (storage)
Included
- RIGOL PLA3204 logic probe - 1 pc.
- Test leads - 6 pcs.
- Test clips - 6 pcs.
