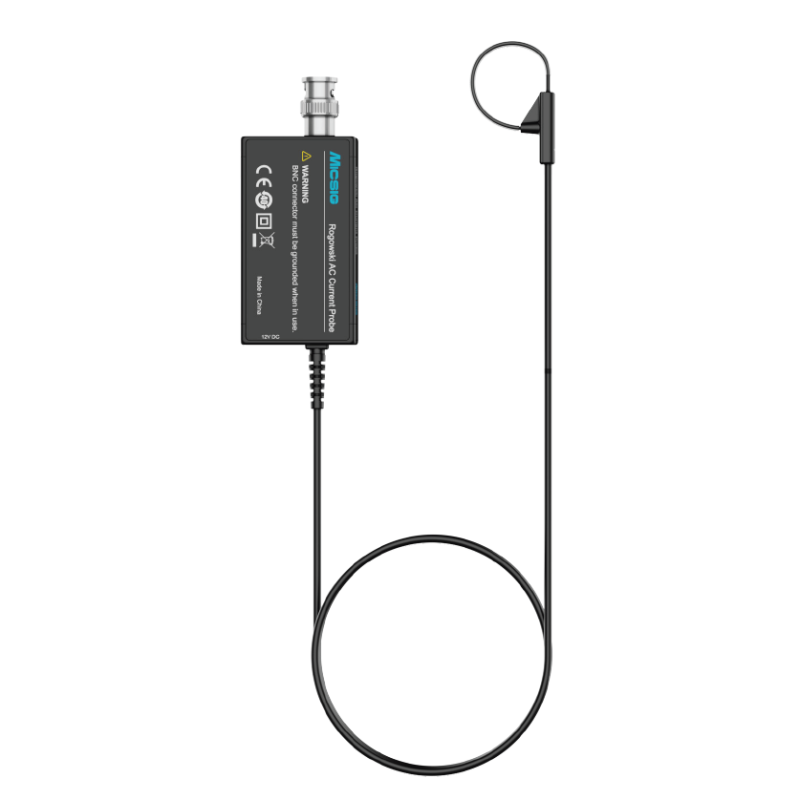

Rogowski current probe designed for measuring high-amplitude AC currents up to 120 A, offering a wide bandwidth from 34 Hz ​​to 30 MHz and a sensitivity of 50 mV/A. Its near-zero impedance enables accurate measurements without affecting the circuit under test, which is useful in analyzing fast waveforms and power systems (MOSFETs, IGBTs, SiC, GaN). Micsig RCP120XS-80

4 weeks
On request
Kamami is the official distributor of Micsig oscilloscopes and accessories. All products of this brand in our offer are original and come directly from the manufacturer.

Description

Micsig RCP120XS-80 is a Rogowski current probe designed for precise measurement of alternating currents with high amplitudes, reaching up to 120 A. Thanks to the Rogowski coil technology, the probe features nearly zero insertion impedance, enabling measurement without affecting the tested circuit. This is particularly important in applications requiring high accuracy and minimal interference. The device offers a wide bandwidth of up to 30 MHz, allowing analysis of rapidly changing signals and high-frequency waveforms. As a result, it performs excellently in measuring currents in power transistors such as MOSFET, IGBT, SiC, or GaN, where capturing dynamic changes and high-order harmonics is essential.

The flexible coil design allows easy adaptation to hard-to-reach areas and measurements in systems with complex geometry. The compact cross-section of the coil enables operation even in very tight spaces, for example between the leads of semiconductor components. The probe is equipped with a standard BNC connector, ensuring full compatibility with most oscilloscopes available on the market. With high voltage resistance of up to 1.5 kV, it can be safely used in high-voltage applications.

Features

  • Probe type: Rogowski (AC current measurement)
  • Maximum current: 120 A (peak value)
  • Bandwidth: 34 Hz to 30 MHz
  • Sensitivity: 50 mV/A (20X)
  • Slew rate: 8 kA/μs
  • Accuracy: 2%
  • Voltage resistance: up to 1.5 kV (peak, for the coil)
  • Output impedance: 1 MΩ
  • Near-zero insertion impedance
  • Interface: standard BNC connector
  • Design: flexible Rogowski coil
  • Purpose: measurement of high-frequency, pulsed, and transient currents
  • Applications: motor drives, UPS/SMPS systems, MOSFET/IGBT testing (SiC, GaN), harmonic measurements, three-phase systems
  • Diameter: 1.6 mm
  • Coil length: 80 mm
  • Cable length: 1.5 m
  • Power supply: DC 12 V
