Finger Vein Scanner Module (B) is a thin, energy-efficient biometric module with finger vein detection based on a Cortex-M4F microcontroller, designed for precise user identification in security applications. NIR technology enables effective recognition regardless of the skin surface condition, making the module a reliable alternative to traditional fingerprint readers. Thanks to its compact dimensions and a rich set of accessories, it facilitates integration with smart locks, door handles, access control systems, and compact IoT terminals.

24h
Available
Available quantity: 2
Kamami is the official distributor of Waveshare displays, accessories and modules.

Description

Thin finger vein recognition module equipped with a 32-bit ARM Cortex-M4F microcontroller clocked up to 192 MHz, supporting floating-point operations and a DSP instruction set. Designed for integration with end devices, it uses near-infrared (NIR) imaging technology to precisely detect the vein pattern inside the finger. It is characterized by low power consumption, high accuracy, and resistance to epidermal damage and contamination.

The module offers compatibility with industrial fingerprint recognition protocols and enables communication via a UART interface (3.3 V TTL) and a plug-and-play USB port without the need for driver installation. The compact design (8.29 mm thick) with a separately mounted NIR light source and enclosed IP56-rated housing facilitates installation in security systems, electronic locks, door handles, and smart cabinets. Supports 1:1 and 1:N identification modes, with up to 100 stored user templates.

Features

  • High-performance 32-bit ARM Cortex-M4F microcontroller, 192 MHz
  • Driverless USB support (Windows) and UART 3.3 V TTL (57600 bps)
  • High precision finger vein pattern recognition using NIR
  • Up to 100 stored identifiers, template size ≤ 1 kB
  • Recognition time under 1 s
  • Current consumption in operation: 19.5 mA, in standby: ≤ 5 µA
  • False Acceptance Rate (FAR): < 0.0001%
  • False Rejection Rate (FRR): 0.01%
  • ABS + PC housing, resistant to moisture, dust, and industrial conditions (IP56)
  • Dimensions: 39.98 × 34.92 × 8.29 mm
  • Security certification: EAL4+
  • Interface compliant with industrial biometric protocol standards
  • Separate NIR light source construction (up to 50 mm from sensor window)

Included

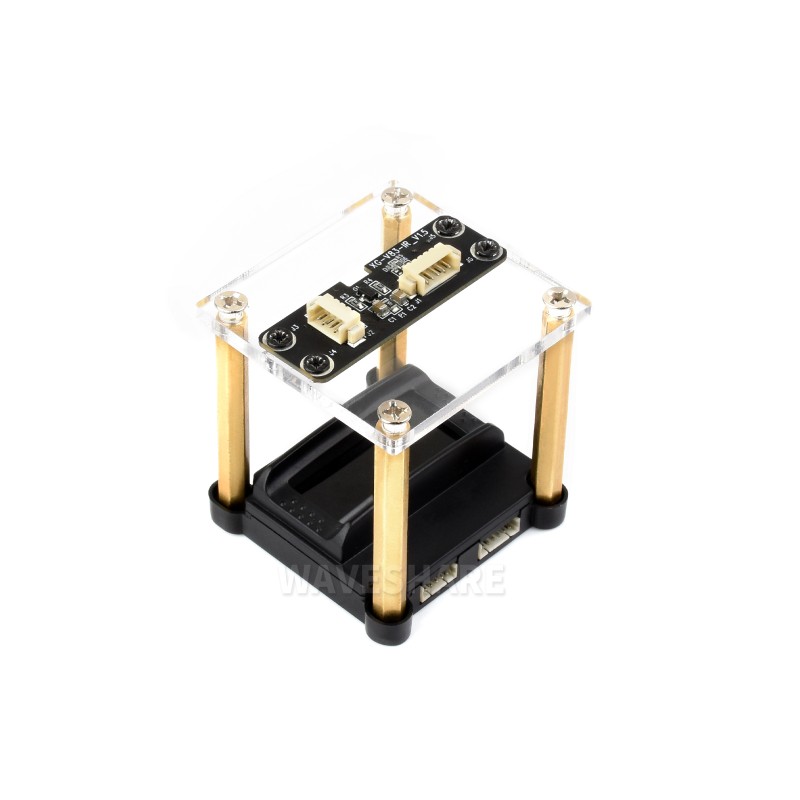

  • Finger Vein Scanner Module (B) x1
  • 3.3 V adapter board x1
  • MX1.25 6PIN cable x1
  • MX1.25 6PIN to 2.54 cable x1
  • MX1.25 5PIN cable x1
  • USB Type-A to MX1.25 4PIN cable x1
