Gravity: Analog EMG Sensor
ID: 569863
5902186313293
zł225.72
Tax included
zł183.51 tax excl.
A module with an EMG sensor that detects the activity of human muscles and neurons. Generates an analog signal in the range from 0 to 3 V on the output, it does not require the use of a conductive gel. DFRobot SEN0240
Description
A module with an EMG sensor that detects the activity of human muscles and neurons. The sensor connects the filtering and boosting circuit. By using a differential input and an analog filter circuit, noise, especially power frequency interference, is reduced. The output module generates an analog signal ranging from 0 to 3 V, and the waveform of the output signal indicates muscle activity. The activity of muscles and neurons is picked up by an electrode which allows to obtain a good quality signal without the need to use a conductive gel. The product Wiki page offers a user manual as well as sample programs and generated graphs.
Features
Signal transmitter module
- Detection range: +/- 1.5 mV
- Electrode connector: PJ-342
- Module connector: PH2.0-3P
- Working voltage: 3V
- Output voltage: 0 to 3V
- Supply voltage: 3.3 V to 5.5 V
- Working temperature: 0 to 50 ℃
- Size: 22 x 35 mm
Electrode board
- Electrode connector: PJ-342
- Cable length: 50 cm
- Plate size: 22 x 35 mm
- Weight: 36 g

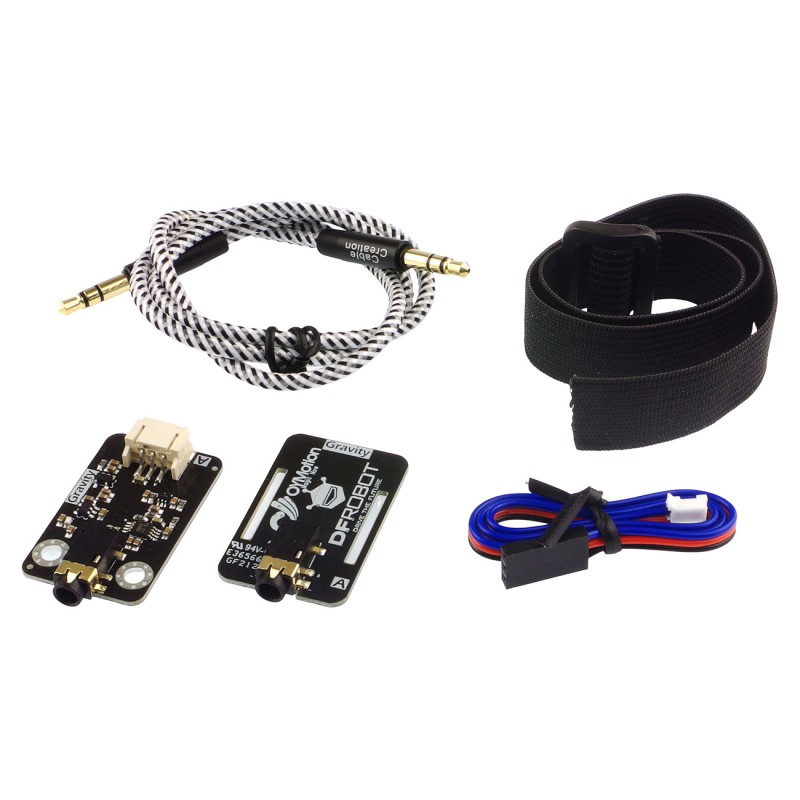

Kit contains
- EMG electrode board
- Wrist strap
- Electrode cable
- EMG signal transmitter module
- 3-pin Gravity analog cable
