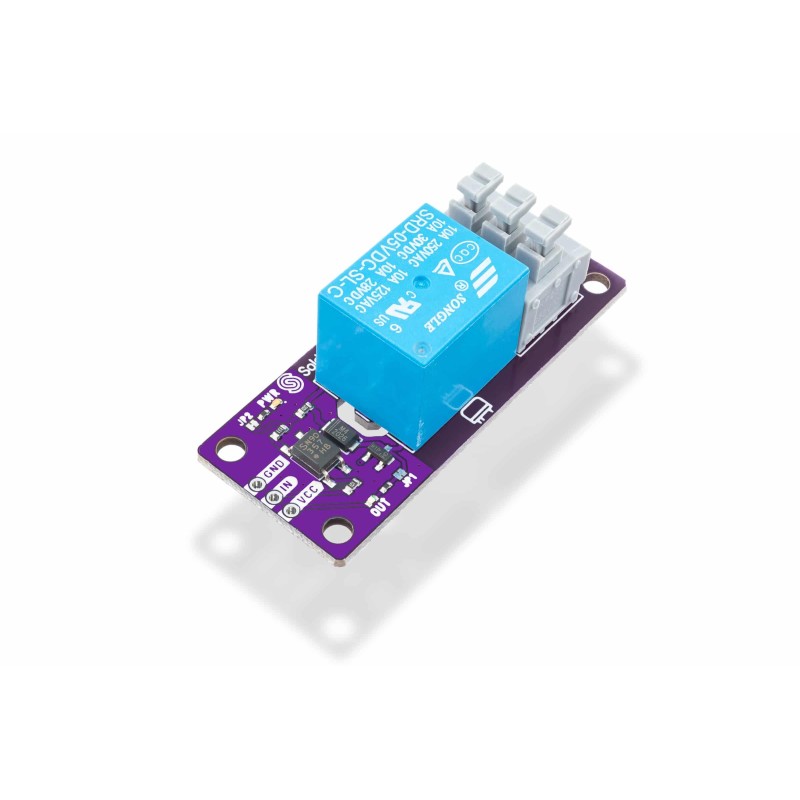

Soldered 1-Channel Relay Board - 1-channel relay module 10A 250V AC / 30V DC
ID: 1208249
zł28.81
Tax included
zł23.42 tax excl.
Single-channel relay module designed for controlling AC and DC loads using a microcontroller. It supports loads of up to 10 A at 250 V AC or 10 A at 30 V DC and can be controlled using 3.3 V and 5 V logic signals. Soldered 333024
Description
The module uses 1 electromechanical relay for switching loads with voltages of up to 250 V AC or 30 V DC and currents of up to 10 A. The control circuit is integrated on the board, allowing the relay to be controlled by microcontrollers operating with 3.3 V or 5 V logic, including Arduino platforms. The design provides separation between the control circuit and the circuit switched by the relay contacts.
The 2.54 mm pin pitch allows the module to be used in prototype circuits, while the load is connected via screw terminals. The board can be used to control lighting, motors, solenoid valves, and other AC or DC loads in automation systems and microcontroller projects. The mounting holes are compatible with LEGO spacing, and the board measures 54 x 22 mm.
Features
- Type: relay module
- Number of channels: 1
- Number of relays: 1
- Maximum DC switching voltage: 30 V
- Maximum DC switching current: 10 A
- Maximum AC switching voltage: 250 V
- Maximum AC switching current: 10 A
- Compatible with 3.3 V and 5 V logic levels
- Screw terminals for load connection
- Pin pitch: 2.54 mm
- Breadboard-compatible design
- LEGO-compatible mounting holes
- Dimensions: 54 x 22 mm
- Arduino library support
- Open-source design
- Manufactured in Croatia, EU
Kit includes
- Soldered 1-Channel Relay Board - 1 pc.
- Pin header - 1 pc.
1208249
Data sheet
- Output current
- 10A
- Number of channels
- 1
- Executive element
- Przekaźnik elektromagnetyczny
- Coil voltage
- 30 VDC / 250 VAC
