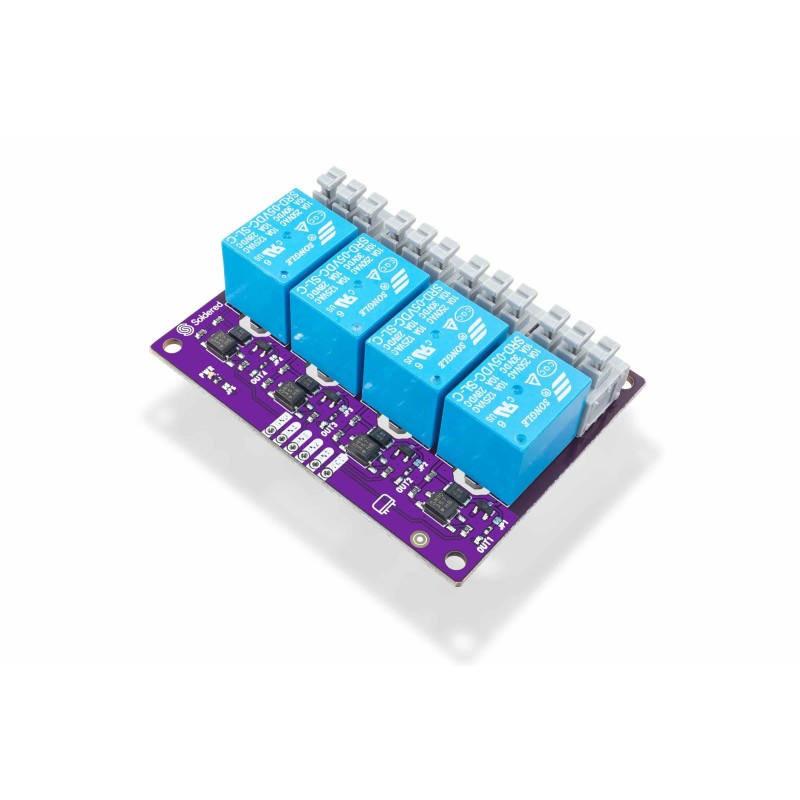

Soldered 4-Channel Relay Board - 4-channel relay module 10A 250V AC / 30V DC
ID: 1208247
zł61.99
Tax included
zł50.40 tax excl.
Four-channel relay module designed for independent control of four AC or DC loads using a microcontroller. Each of the four relays supports loads of up to 10 A at 250 V AC or 10 A at 30 V DC, while the control circuit is compatible with 3.3 V and 5 V logic levels. Soldered 333022
Description
The board is equipped with 4 electromechanical relays for independently switching four AC or DC circuits. The maximum switching parameters for each relay are 250 V AC / 10 A or 30 V DC / 10 A. The integrated control circuit allows operation with microcontrollers using 3.3 V and 5 V logic levels, including Arduino platforms.
The 2.54 mm pin pitch allows the board to be used in prototype circuits, while four independent channels can control lighting, motors, solenoid valves, and other AC or DC loads in automation systems and microcontroller projects. The mounting holes are compatible with LEGO spacing. The board measures 54 x 70 mm.
Features
- Type: 4-channel relay module
- Switching element: electromagnetic relays
- Number of channels: 4
- Number of relays: 4
- Maximum DC switching voltage: 30 V
- Maximum DC switching current: 10 A
- Maximum AC switching voltage: 250 V
- Maximum AC switching current: 10 A
- Compatible with 3.3 V and 5 V logic levels
- Pin pitch: 2.54 mm
- Breadboard-compatible design
- LEGO-compatible mounting holes
- Dimensions: 54 x 70 mm
- Arduino library support
- Open-source design
- Manufactured in Croatia, EU
Kit includes
- Soldered 4-Channel Relay Board - 1 pc.
- Pin header - 1 pc.
1208247
Data sheet
- Output current
- 10A
- Number of channels
- 4
- Executive element
- Przekaźnik elektromagnetyczny
- Coil voltage
- 30 VDC / 250 VAC
