Gravity: Offline Edge AI Gesture & Face Detection - AI module for gesture and face detection
ID: 1196946
5902186302310
zł75.17
Tax included
zł61.11 tax excl.
A modern module that enables gesture control and detects the presence of people, ensuring privacy and fast offline interactions. Equipped with a camera and an AI processor, the sensor recognizes 5 hand gestures and detects up to 10 faces within a range of 3 meters, supporting I2C and UART communication, making it an ideal solution for IoT, smart homes and touchless systems. DFRobot SEN0626
Description

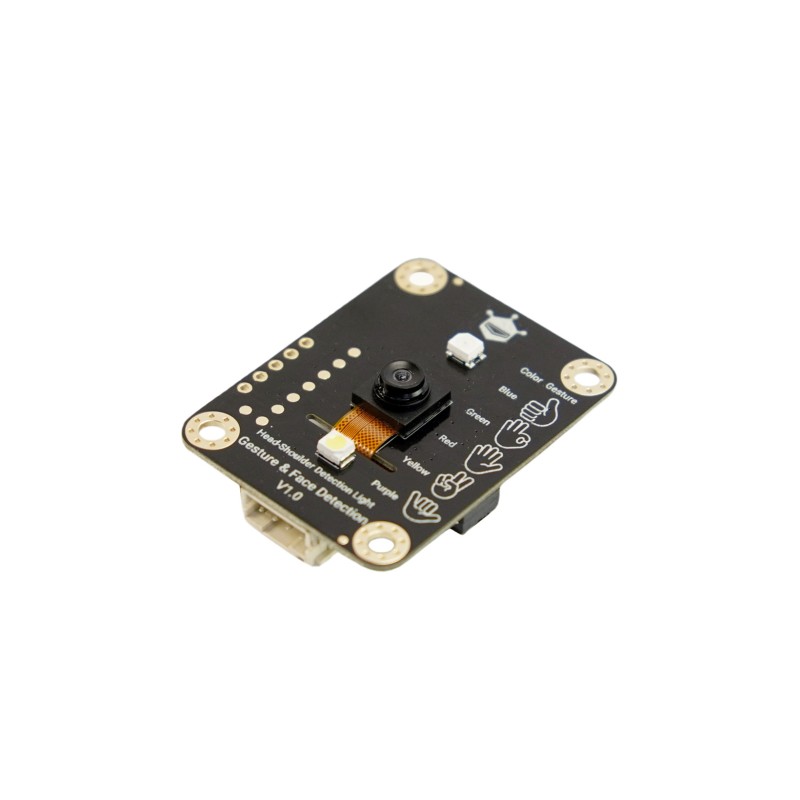

Gravity: Offline Edge AI Gesture & Face Detection Sensor is a modern sensor designed for intuitive gesture control and multi-person presence detection. Equipped with an integrated camera and built-in AI processor, the sensor can recognize 5 predefined hand gestures and detect up to 10 faces or the presence of individuals within a range of 3 meters.
Using computer vision technology and real-time AI processing, the sensor ensures fast and private interactions, working completely offline without the need to send data to the cloud. This makes it an ideal solution for touchless control systems, interactive devices, and IoT applications that prioritize user privacy. The sensor supports I2C and UART communication and offers a wide voltage supply range (3.3V to 5V), making it compatible with popular platforms such as Arduino, Raspberry Pi, ESP32, and graphical environments like MakeCode and Mind+. With its compact size and precise detection, it is an excellent tool for smart home applications, building automation, and public interaction systems.
Features
- Offline AI gesture processing and real-time face recognition
- High sensitivity for detecting 5 hand gestures (e.g., thumbs up, peace sign, open hand)
- Detection of face and body presence up to 3 meters
- Simultaneous recognition of up to 10 faces or people
- Communication via I2C and UART
- Supports 3.3V and 5V systems
- Support for programming environments like MakeCode and Mind+
- RGB light indicating recognized gestures (e.g., blue for thumbs up)
- Built-in LED light detecting the presence of people
- Gesture recognition range: 0.5m to 3m
- Face recognition range: 0.5m to 3m
- Camera visibility: 85° (diagonal angle)
- Power supply: 3.3V to 5V
- Current consumption: 100mA
- Dimensions: 42 x 32 mm
- Mounting hole diameter: 3.1mm
Kit contains
- Gravity: Offline Edge AI Gesture & Face Detection Sensor
- Gravity PH2.0 - 4P connection cable
1196946
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
