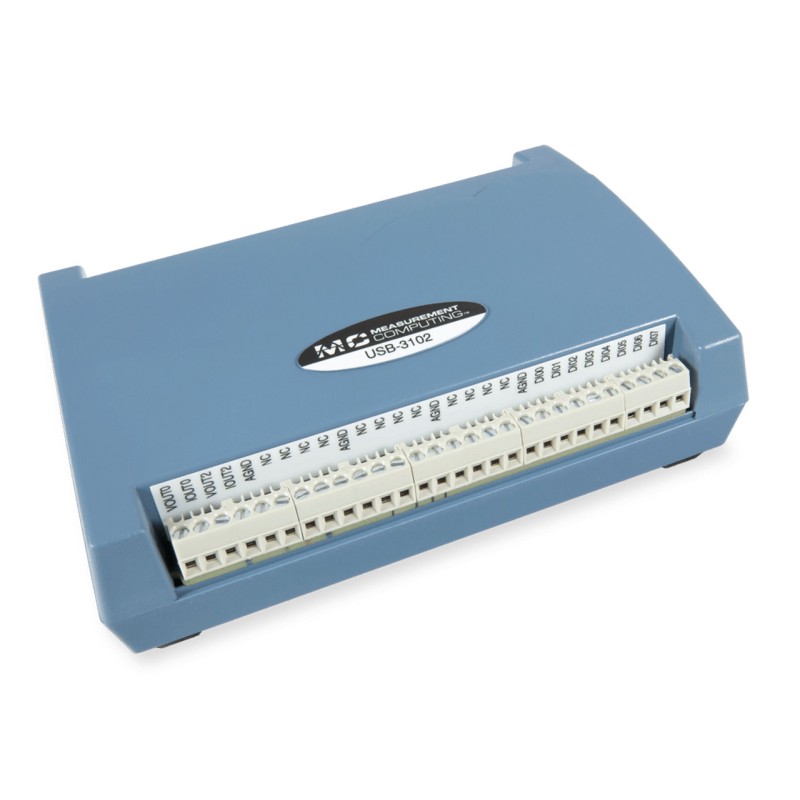

MCC USB-3102 (6069-410-030) – Four-Channel USB Voltage/Current Output Module
ID: 1189977
5902186319950
zł2,235.16
Tax included
zł1,817.20 tax excl.
MCC USB-3102 – USB module with 4 voltage/current outputs, 8 digital I/O lines, and a 32-bit counter input. Digilent 6069-410-030
Description
The MCC USB-3102 is a precision output module featuring four voltage/current channels, designed for automation, signal generation, and testing applications. Each channel can be configured for either voltage (0–10 V, ±10 V) or current output (0–20 mA), with the option for individual or simultaneous updates.
The device also includes eight digital I/O lines and one 32-bit counter input. Communication and power are provided via USB, allowing seamless integration with PC systems without the need for an external power supply.
Features
- 4 analog output channels
- 16-bit resolution
- 100 S/s update rate
- Voltage output: ±10 V, 0 V to 10 V
- Current output: 0 mA to 20 mA
- Eight digital I/O lines
- One 32-bit counter input
- Supported by DAQami, Python, LabVIEW™, MATLAB®, C++, C#, VB.NET, and more
Kit includes
- MCC USB-3102 module
- USB cable
