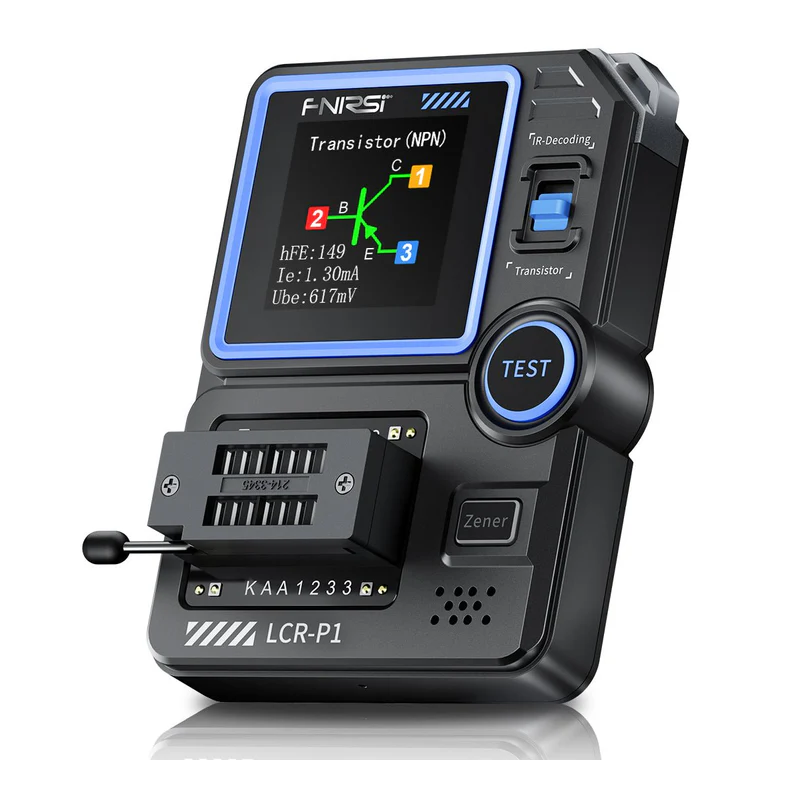

Fnirsi LCR-P1 - multifunction LCR and transistor tester
ID: 1198866
5902186306790
zł99.90
Tax included
zł81.22 tax excl.
A compact electronics tester that enables quick and automatic recognition and testing of components such as transistors, diodes, triacs, thyristors, and FETs. Equipped with a 1.44" color screen, it offers a clear parameter overview and intelligent functions such as automatic capacitor discharge and Zener diode measurement up to 32V. With a built-in battery and USB-C port, the LCR-P1 is a convenient, precise, and portable tool for any electronics technician.
Description
FNIRSI LCR-P1 is a multifunction electronic component tester designed for engineers, technicians, and electronics enthusiasts. It enables fast and accurate testing of transistors, diodes, triacs, thyristors, and field-effect transistors (FETs). The built-in 1.44-inch color display provides clear information about tested components. The device automatically detects the component type and pin configuration, significantly simplifying operation and saving time.
This tester features smart burn-out protection — capacitors are automatically discharged during testing, protecting both the components and the tester. It also includes a dedicated measurement channel for Zener diodes, supporting a wide range from 0.01V up to 32V. With interchangeable test boards, the device easily adapts to various applications. Compact and lightweight, it is powered by a built-in 300mAh lithium battery and charged via USB Type-C. The LCR-P1 is a reliable, precise, and easy-to-use solution, ideal for both workshop and field use.
Features
- Transistor gain measurement: 10 < B < 600
- Capacitance range: 25pF to 100mF
- Inductance range: 10μH to 1000μH
- Resistance range: 0.01Ω to 50MΩ
- Diode testing: forward voltage < 4.5V
- Zener diode testing: 0.01–4.5V / 0.01–32V (independent measurement channel)
- Supported transistor types: JFET / IGBT / MOSFET
- Bidirectional thyristor: trigger voltage < 5V, gate current < 6mA
- IR decoding: NEC protocol
- Display: 1.44" color screen
- Power supply: built-in 300mAh lithium battery
- Charging: USB Type-C, 5V/1A
- Operating temperature: 0 to 40℃
- Overvoltage protection
- Firmware upgrade support
- Dimensions: 71 x 87 x 28 mm
Kit contains
- FNIRSI LCR-P1 tester
- Test boards
- USB Type-C cable
- 3 x test probes
1198866
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
