- New

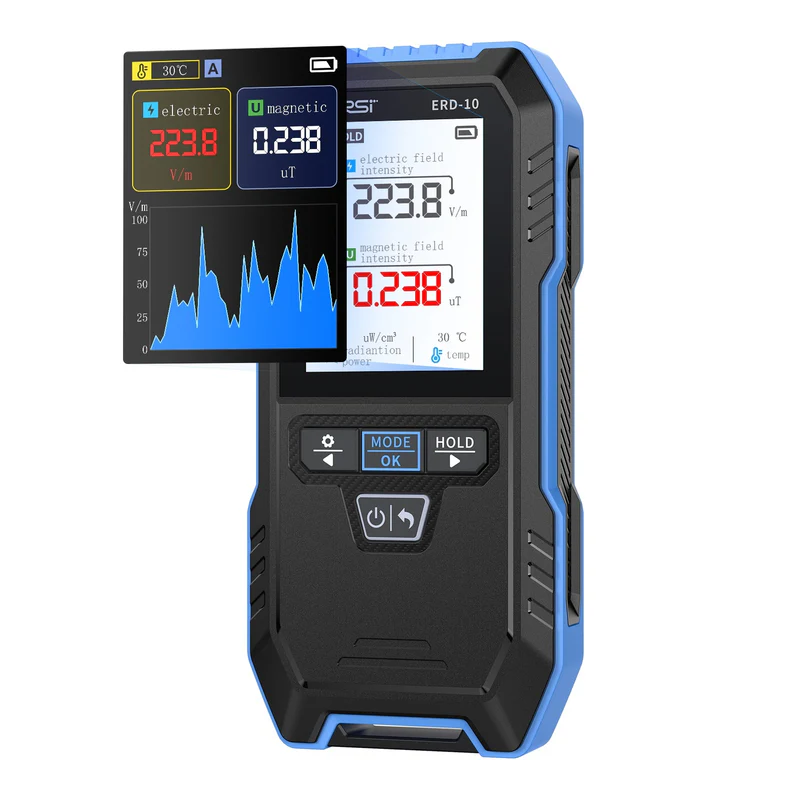

Fnirsi ERD-10 - electromagnetic radiation detector
ID: 1200644
zł139.00
Tax included
zł113.01 tax excl.
A multifunctional electromagnetic radiation detector that measures electric fields, magnetic fields, RF radiation power, and ambient temperature. Equipped with a 2.4-inch color screen and data hold function, it provides clear readings and intuitive operation. It allows you to set alarm thresholds, supports automatic shutdown, and offers firmware updates and factory resets. Thanks to a 1000 mAh battery and USB-C charging, the Fnirsi ERD-10 is portable and convenient for everyday use.
Description
FNIRSI ERD-10 is a multifunctional electromagnetic radiation detector designed to monitor electric fields, magnetic fields, RF radiation power, and ambient temperature. The device is well-suited for various applications such as home, office, car, or outdoor environments, providing full control over environmental safety. Equipped with a 2.4-inch color display, it offers clear readings and intuitive operation thanks to the data hold (HOLDS) function and a simple interface. Its compact size and lightweight design make the ERD-10 convenient to carry and use in different conditions.
The detector offers high measurement precision, with a range of 1 to 1999 V/m for electric fields, 0.01 to 99.99 μT for magnetic fields, and 0.2 to 1000 mW/cm² for RF radiation power. Additionally, users can set custom alarm thresholds – default values are 40 V/m for electric fields and 0.4 μT for magnetic fields. The device supports an auto power-off function, adjustable to 5, 10, or 15 minutes (or disabled), helping to save energy. With firmware upgrade support and the option to restore factory settings with one click, the ERD-10 ensures flexibility and long-term usability.
The built-in 1000 mAh battery provides long operating time, and charging via USB Type-C makes it highly convenient for daily use. Thanks to its lightweight and ergonomic design, the device is easy to keep at hand – whether at work or at home. The FNIRSI ERD-10 is a reliable and professional tool for anyone looking to monitor and minimize exposure to electromagnetic radiation in their environment.
Features
- Display: 2.4-inch, color, adjustable brightness
- Auto power-off function: off / 5 / 10 / 15 min
- Electric field: range 1–1999 V/m, accuracy 1 V/m, alarm threshold 40 V/m
- Magnetic field: range 0.01–99.99 μT, accuracy 0.01 μT, alarm threshold 0.4 μT
- RF radiation power: 0.2–1000 mW/cm²
- Ambient temperature measurement
- Data Hold (HOLDS) function
- Firmware upgrade and factory reset support
- Power supply: USB Type-C (5V/1A)
- Battery: 1000 mAh
- Supported languages: Chinese, English
- Dimensions: 143 × 68 × 29 mm
- Weight: 143 g
Kit contains
- FNIRSI ERD-10 detector
- Protective box
- USB Type-C cable
- User manual
1200644
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
You might also like
Ionising radiation detector (a.k.a. dosimeter or Geiger counter). It is used to measure the dose of ionising radiation, i.e. the amount of energy that is absorbed by an organism or material during exposure to radiation. It is capable of detecting three types of radiation: X-rays (X-rays), Y-rays and β-rays. Fnirsi GC-01 Blue
zł172.84
24h
Available quantity: 29
Available
Compact radiation detector based on Geiger-Muller counter, detecting gamma, beta and X radiation. The device offers precise measurement, audible and visual alarms and clear real-time display. Thanks to its lightweight design and 850 mAh battery, it is perfect for field, home and professional use. Fnirsi GC-02 Black
zł171.90
24h
Available quantity: 2
Available
Kompaktowy detektor, który umożliwia pomiar promienistego, pola magnetycznego. zasięg w tubie Geigera-Müllera (J321/M4011) obejmujący czułość i dokładne odczyty w szerokim zakresie, a elektryczny ekran 2,4" zapewnia czytelny przepływ wyników w czasie naturalnym. Obsługuje pewne γ, X i twarde β, posiadają tryby alarmów, dźwiękowy i wibracyjny oraz włączone wykresów elektronicznych. Fnirsi GC-03 czarny
zł349.00
Delivery date unknown
No product available!
Other products in the same category (16)
MCC USB-2416-4AO – DAQ module with 32 analog inputs, 4 outputs, thermocouple support, and 24-bit resolution. Digilent 6069-410-023
zł7,299.80
3 weeks
No product available!
Uni-T UT387D is a compact detector for detecting metals, live wires and wood in walls, floors and ceilings. It allows precise location of objects at a depth of up to 80 mm (metals), 50 mm (wires) and 20 mm (wood), and its ergonomic housing, LCD display and automatic calibration ensure comfortable and accurate work.
zł199.86
2 weeks
No product available!
The Uni-T UT383S is a compact lux meter measuring light intensity from 0 to 199,999 lux, ideal for monitoring lighting in various environments. Equipped with a modern sensor, LCD display and Data Hold function, it provides fast, accurate measurements and easy operation.
zł117.85
24h
Available quantity: 7
Available
Portable frequency and phase analyzer based on NanoVNA-H4, designed for precise comparison of signals in the range from 1 MHz to 300 MHz, ideal for testing 10 MHz clocks, among others. With a touch screen, data logging and a built-in 2000 mAh battery, it is a mobile tool for engineers and electronics enthusiasts who require high measurement accuracy. tinyPFA
zł349.00
24h
Available quantity: 5
Available
Portable VNA with 4-inch touchscreen, enabling precise measurements in the range from 10 kHz to 1.5 GHz. With good dynamics, metal housing and support for S11 and S21 measurements, it is a versatile tool for analyzing antennas and RF paths both in the field and in the laboratory. nanoVNA-H4
zł364.63
24h
Available quantity: 1
Available
Portable instrument for measuring inductance, capacitance and resistance. It is equipped with a 2.8-inch TFT LCD display. Hantek 1833C
zł849.00
24h
Available quantity: 2
Available
Ionising radiation detector (a.k.a. dosimeter or Geiger counter). It is used to measure the dose of ionising radiation, i.e. the amount of energy that is absorbed by an organism or material during exposure to radiation. It is capable of detecting three types of radiation: X-rays (X-rays), Y-rays and β-rays. Fnirsi GC-01 Blue
zł172.84
24h
Available quantity: 29
Available
2-port vector network analyzer operating from 100 kHz to 6 GHz, enabling fast and precise S-parameter measurement thanks to the use of FPGA and three 16-bit ADCs. It offers up to 100 dB dynamic range (up to 3 GHz), Windows/Linux/macOS support, and spectrum analyzer and signal generator functions, making it a versatile tool for laboratory and field applications. LibreVNA
zł2,715.20
24h
Available quantity: 1
Available
NEO Tools 71-225 keychain spirit level with a single vial for quick level checks anywhere. Compliant with MID standard, practical as a handy tool for work and everyday use.
zł3.70
24h
Available quantity: 80
Available
MCC USB-SSR24 is a control module for 24 SSR relays with optical isolation, USB communication, and support for popular programming languages. Digilent 6069-410-200
zł2,968.61
3 weeks
No product available!
Spectrum analyzer with two ports. It can perform measurements for frequencies from 100 kHz to 960 MHz. Equipped with an LCD display, it can be connected to a computer via USB. TinySA
zł406.96
24h
Available quantity: 5
Available
Test board dedicated to VNA analyzers. It is equipped with 18 templates and filters that allow you to learn how the device works
zł91.78
24h
Available quantity: 2
Available
USB-based DAQ device with 16 single-ended or 8 differential analog inputs, two analog outputs, 8 digital I/O, and two counter inputs and one output. It offers 16-bit resolution and a sampling rate of 500 kS/s. Digilent 6069-410-011
zł4,299.00
3 weeks
No product available!

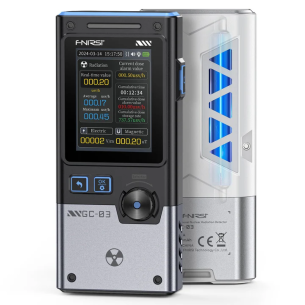

Kompaktowy detektor, który umożliwia pomiar promienistego, pola magnetycznego. zasięg w tubie Geigera-Müllera (J321/M4011) obejmujący czułość i dokładne odczyty w szerokim zakresie, a elektryczny ekran 2,4" zapewnia czytelny przepływ wyników w czasie naturalnym. Obsługuje pewne γ, X i twarde β, posiadają tryby alarmów, dźwiękowy i wibracyjny oraz włączone wykresów elektronicznych. Fnirsi GC-03 czarny
zł349.00
6 weeks
No product available!
Electronic components tester with a 128x64 pixel display. It allows you to check, among others transistors, diodes, capacitors, resistors and inductors. Acrylic housing included. LCR-T4
zł47.70
24h
Available quantity: 37
Available

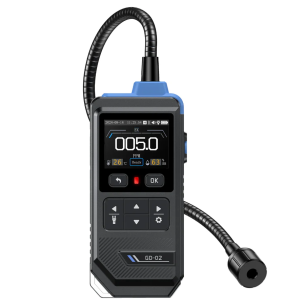

A portable combustible gas detector designed to detect methane, propane, and isobutane. The device features a 2.0" color TFT screen, three alarm modes (audible, visual, and vibrating), and a flexible 36 cm probe for easy access to hard-to-reach areas. A response time of less than 5 seconds and the ability to record up to 30 alarm events ensure fast and precise threat detection. Fnirsi GD-02
