An advanced FPGA platform based on the Agilex 7 I-Series with 2.7 million logic elements, designed for data center, cloud, and HPC applications. It supports PCIe 5.0 x16 and CXL interfaces, offering twice the bandwidth of PCIe 4.0 and minimal CPU-to-FPGA latency. Equipped with two QSFP-DD connectors and four DDR4 SO-DIMM slots, it delivers powerful data processing and computer vision capabilities. Integrated management, USB Blaster II, and Intel OneAPI support make the card a flexible, turnkey solution for demanding compute projects. Terasic P0796

4 weeks
On request

Description

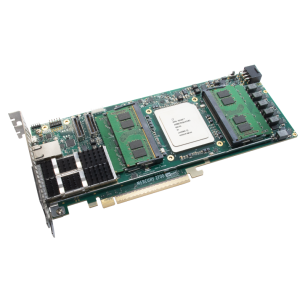

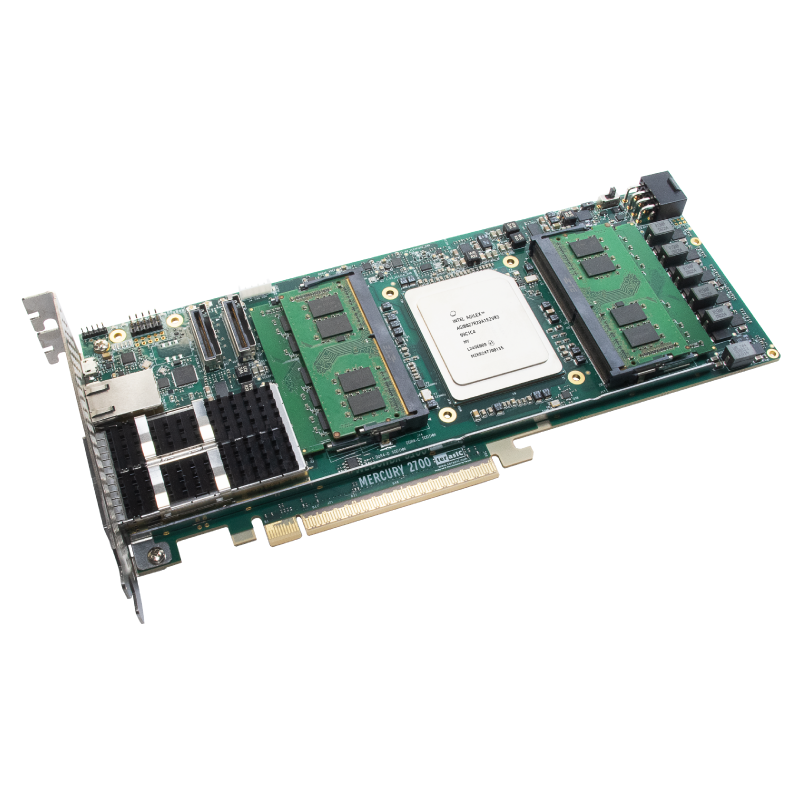

The Terasic Mercury A2700 card is a modern platform designed for accelerated computing in data centers, cloud environments, and embedded systems. It uses the Agilex 7 I-Series FPGA with 2.7 million logic elements, delivering top performance in its class. It is the first Terasic card supporting PCIe 5.0 x16 and Compute Express Link (CXL), enabling 2× higher bandwidth compared to PCIe 4.0 and minimal CPU–FPGA communication latency.


With two QSFP-DD connectors and four DDR4 SO-DIMM slots, the card provides vast data processing capabilities, especially in applications such as computer vision, HPC, or other high-performance computing workloads. It includes an advanced management system featuring power and temperature monitoring and automatic fan control. The card supports multiple interfaces, including Gigabit Ethernet, UART to USB, and USB OTG with a MicroUSB port.



With the integrated USB-Blaster II, FPGA configuration is fast and convenient, and users can choose from various configuration modes via QSPI memories. For software development, Linux BSP packages are available, along with upcoming support for Intel OneAPI. Additional features such as MCIO connectors, timing expansion headers, buttons, DIP switches, and LEDs provide flexibility for project customization. Its compact full-height, 3/4-length PCIe form factor ensures seamless integration with existing systems. The package also includes a rich set of accessories, enabling immediate use right out of the box. Combining high performance, flexibility, and software support, the Mercury A2700 is the ideal solution for professional applications requiring reliability and maximum computing power.

Features

  • FPGA: AGIB027R29A1E2VB / AGIB027R29A1E2VC (CXL support)
  • FPGA logic elements: 2.7 million
  • Card form factor: PCIe full-height, 3/4-length
  • Interfaces: PCIe Gen5 x16, CXL x16
  • Memory: 4 × DDR4 SO-DIMM slots (one shared with HPS)
  • Installed memory: 32 GB (4 × 8 GB)
  • Network connectors: 2 × QSFP-DD (up to 400 GbE)
  • Expansion connectors: 2 × MCIO 8x, 2×5 Timing Expansion Header, U.FL clock in/out, 1×5 Bracket LED Expansion Header
  • I/O: 4 × LED, 2 × button, 2 × DIP switch
  • Management system: power and temperature monitor, automatic fan control
  • FPGA configuration: USB-Blaster II, AVSTx8 (2 Gbit QSPI), ASx4 (1 Gbit QSPI)
  • HPS: MicroSD, DDR4 SO-DIMM, Gigabit Ethernet RJ45, UART-USB, USB OTG MicroUSB
  • Example FPGA code, Linux BSP, OneAPI BSP (coming soon)
  • Built-in air cooling system
  • Dimensions: 253 × 106.65 mm

Kit contains

  • Mercury A2700 card
  • 4 × DDR4 8GB ECC SO-DIMM modules
  • PCIe bracket
  • MicroSD card + card reader
  • Set of screws and spacers
  • Air cooling system
  • Power supply
  • AC power cable
  • USB – MicroUSB cable
  • Quick start guide
