- Out-of-Stock
ArduCAM 5MP OV5648 Wide Angle USB Camera - 5MP USB camera with OV5648 sensor
ID: 586967

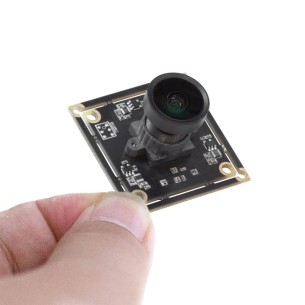

Camera with a resolution of 5 MPx with a USB interface. Equipped with a CMOS OV5648 sensor with a wide-angle lens with a viewing angle of 140°. ArduCAM U6073
Description
Camera with USB interface, equipped with a CMOS sensor OV5648 1/4” with a resolution of 5 MPx. It has an integrated IR filter and a lens with a field of view of 140 °. The camera can take photos with a resolution of 2592x1944 and record videos at 15fps @ 2592x1944. It is powered from the USB port. The module works with native drivers (compatible with UVC) built into Windows, Linux, Mac and Android, making the installation of the camera easy and intuitive. It will be used for monitoring 3D printing, videoconferences or in projects of mobile robots.
Features
- Sensor: 1/4 ”CMOS OV5648
- Resolution: 5MP 2592x1944
- Data format: MJPG / YUY2
- Frame rate: MJPG 15fps @ 2592 x 1944
- Field of View (FOV): 140° (diagonal), 110° (H), 85° (V)
- Integrated IR filter
- Fixed focus
- Sensitivity: 600mV/lux * sec
- ISP: AGC/AEC/AWB support
- System Compatibility: Windows, Linux, Mac and Android with UVC
- USB 5V power supply
- Working current: 250 mA
- Dimensions: 62 x 9 x 15.5 mm
- USB cable length: 33.5 cm
Kit contains
- ArduCAM 5MP OV5648 Wide Angle USB Camera
- 33.5 cm USB cable
