- New

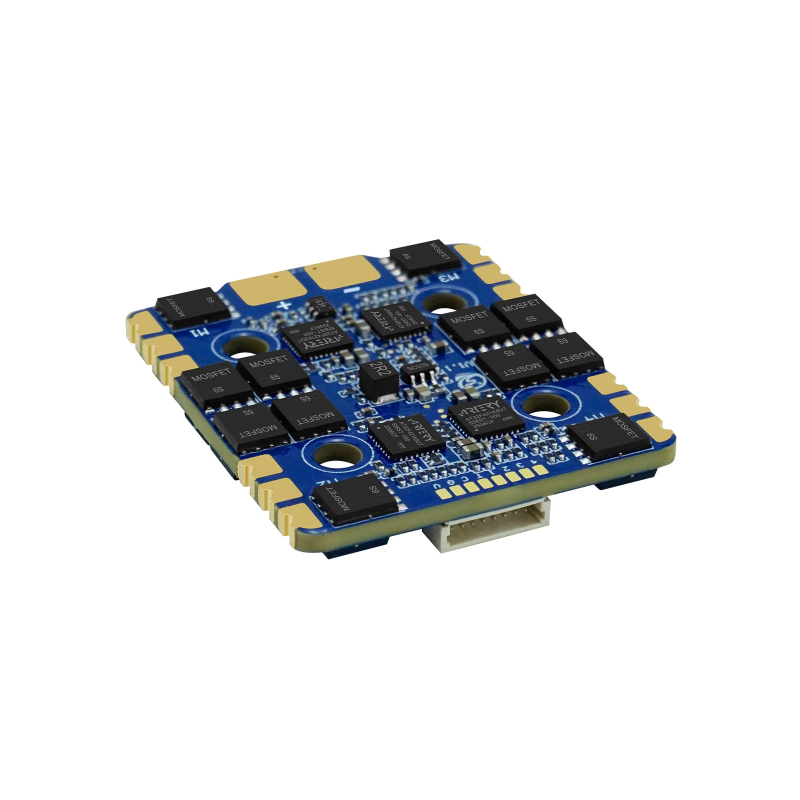

SEQURE Blueson A1 6S 65A AM32 - ESC 6S 65A controller with AM32 software
ID: 1205247
zł146.67
Tax included
zł119.24 tax excl.
4-in-1 ESC for FPV drones, supporting 2-6S LiPo/LiHV voltage and up to 65A continuous current (120A peak current). Equipped with a 32-bit AT32F421 microcontroller and AM32 firmware, it provides smooth motor control with PWM in the 8-128 kHz range. It supports popular protocols such as DShot600, DShot300, Oneshot, Multishot, and PWM, and also offers telemetry functionality. SEQURE Blueson A1 6S 65A AM32
Description
SEQURE Blueson A1 6S 65A AM32 is an advanced 4-in-1 ESC designed for demanding FPV drone users and racing builds. Thanks to a high-quality PCB with increased copper thickness, the device provides excellent current conductivity and efficient heat dissipation. Combined with high-performance MOSFET transistors, this results in improved performance dynamics and stable operation even under heavy loads. The ESC enables smooth and precise motor control, which is crucial in racing and freestyle applications.
At the core of the system is a fast 32-bit AT32F421 processor, supporting dynamic PWM frequencies from 8 kHz to 128 kHz. This allows for very smooth throttle response and precise motor speed control. Support for popular protocols such as DShot600, DShot300, DShot150, Oneshot, Multishot, and PWM ensures compatibility with a wide range of flight controllers. Additionally, the ESC features telemetry, enabling real-time monitoring of operating parameters. The device supports a wide input voltage range of 2S to 6S LiPo/LiHV, increasing versatility across different drone configurations. The maximum continuous current is 65 A for 6S, while peak current can reach up to 120 A, making it suitable for high-power applications.
The design is optimized for easy installation thanks to the standard 20 × 20 mm mounting pattern, commonly used in racing drones. Large solder pads significantly simplify the installation of power and signal wires, which is appreciated by both beginners and advanced users. The compact design and low weight allow integration into lightweight FPV frames without increasing their load. SEQURE Blueson A1 is an excellent choice for users looking for a powerful, reliable, and versatile ESC that ensures high stability during flight.
Features
- Controller: AT32F421
- Firmware: AM32
- PWM frequency: 8 kHz – 128 kHz
- Operating voltage: 2–6S LiPo / LiHV
- Continuous current: 65 A (6S)
- Peak current: 120 A (6S)
- Supported protocols: DShot600 / DShot300 / DShot150 / Oneshot / Multishot / PWM
- Telemetry
- Galvanometer
- Mounting hole spacing: 20 × 20 mm, Φ4 mm / M3
- Dimensions: 42.5 × 36 × 7 mm
- Weight: 19 g
Kit contains
- SEQURE Blueson A1 4IN1 ESC
- 30AWG 40 mm SH1.0-8P cable (double-sided)
- 30AWG 60 mm SH1.0-8P cable
- 12AWG power wires 100 mm (black/red)
- XT60H-M connector (male)
- 35V 680 µF capacitor
- 5 × M3 × 8 mm damping grommets
