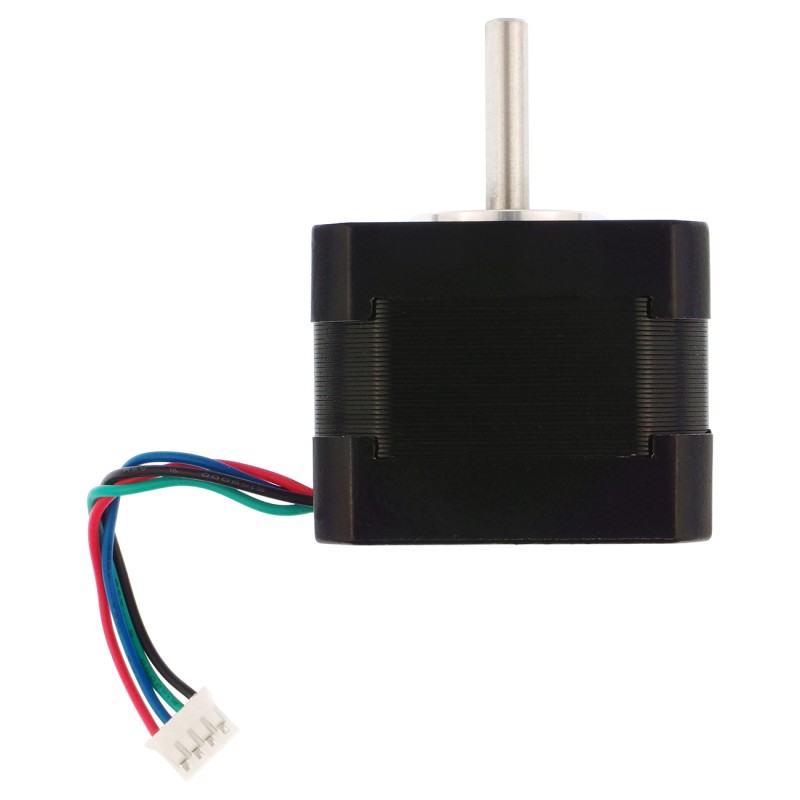

QSH4218-35-10-027 - NEMA 17 stepper motor, 5.3V, 1A, 0.27Nm
ID: 1188444
5906623434237
zł334.34
zł263.95
Save zł70.39
Tax included
zł214.59 tax excl.
Lowest price 30 days:
zł334.34
NEMA 17 stepper motor with a resolution of 200 steps per revolution. It is powered by 5.3 V and provides a torque of 27 N-cm. It has a "D"-shaped shaft with a diameter of 5 mm, which facilitates installation and ensures a secure connection with other elements of the system. QSH4218-35-10-027
Description
A 42.3 x 42.3 mm stepper motor, often referred to as the NEMA 17 model. It is designed for precision applications in a variety of technology fields. Its technical specifications guarantee reliability, precision and performance, making it the ideal choice for many professional and hobby applications.
One of the key parameters of this engine is its resolution, which is 200 steps per revolution, which corresponds to a step with an angle of 1.8°. Such precise movement control allows for accurate positioning and control of mechanisms, which is necessary in advanced automation systems, 3D printers and robotics. The motor also features an effective current specification. The current consumption per coil is 1A, with a rated voltage of 5.3 V. These parameters guarantee optimal performance and minimize the risk of overheating, which is crucial for the longevity of the device. In turn, the motor's holding torque of 27 kg-cm means that the motor is able to exert a rotating force at this torque, which is suitable for many applications requiring a strong and stable drive. The motor has a "D"-shaped shaft with a diameter of 5 mm, which facilitates installation and ensures a secure connection with other elements of the system.
Features
- Resolution: 200 steps/rev. (1.8° per step)
- Current consumption per coil: 1 A
- Rated voltage: 5.3V
- Holding moment: 27 kg-cm
- Coil resistance: 5.3 Ω (per coil)
- Winding inductance: 6.6 mH per coil
- Shaft diameter: 5 mm
- Shaft type: D
- Dimensions: 42.3 x 42.3 mm (NEMA 17)
- Weight: 220 g
1188444
Data sheet
- Shaft diameter
- 5 mm
- Resolution
- 200 step/rev
- Torque
- 2,7 kg-cm
- Coil resistance
- 5,4 Ω
- Coil current
- 1000 mA
- Inductance of the coil
- 6,6 mH
- Voltage
- 5 V
- Weight
- 220 g
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
