ID: 1204601
zł121.83
Tax included

zł99.05 tax excl.

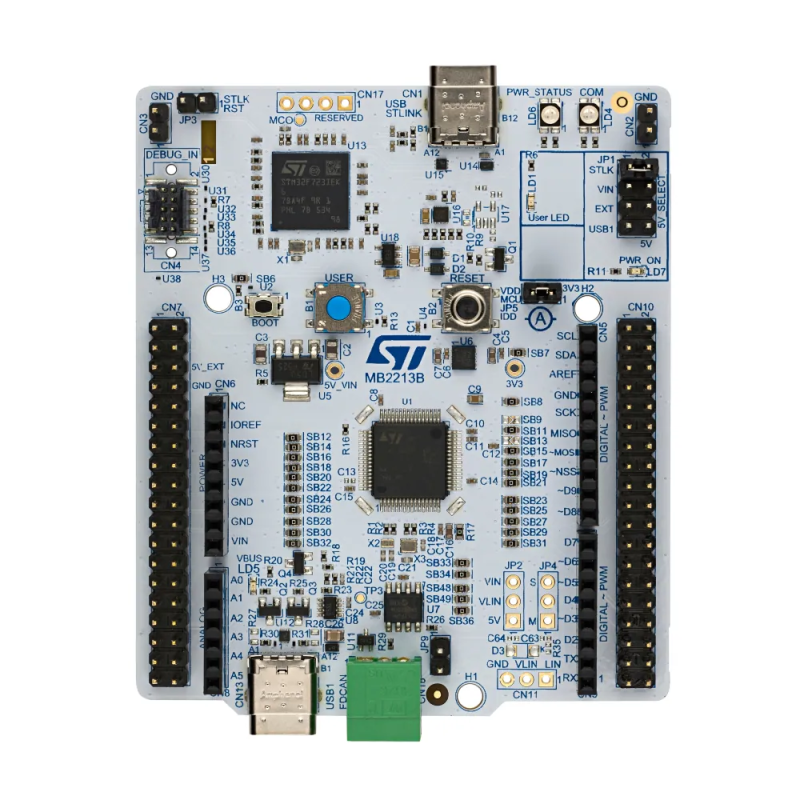

The STM32C562RE microcontroller development board enables the development of embedded applications based on the ARM Cortex-M33 core. The board offers 512 KB of Flash memory, 128 KB of SRAM, and up to 52 I/O lines, as well as a hardware cryptographic module for enhanced system security. The board offers extensive expansion capabilities thanks to ST morpho and ARDUINO Uno V3 connectors. The integrated ST-LINK programmer-debugger enables convenient programming and debugging of the microcontroller without the need for additional hardware. STMicroelectronics NUCLEO-C562RE

24h
Available
Available quantity: 5

Description

The NUCLEO-C562RE development board based on the STM32C562RE microcontroller enables the creation and testing of embedded applications using the ARM Cortex-M33 core. The microcontroller, housed in an LQFP64 package, features 512 kB of Flash memory and 128 kB of SRAM, providing up to 52 I/O lines. The board includes ST morpho and ARDUINO Uno V3 connectors, allowing full access to the microcontroller pins and integration with a wide range of expansion modules. The integrated ST-LINK debugger-programmer enables programming and debugging without the need for external hardware. The board also includes a 32.768 kHz clock oscillator, a user button, a RESET button, and a status LED shared with the ARDUINO interface. The board is supported by development environments such as STM32CubeIDE, IAR Embedded Workbench, and MDK-ARM.

Features

  • Microcontroller: STM32C562RE, ARM Cortex-M33
  • Flash memory: 512 kB
  • SRAM: 128 kB
  • Microcontroller package: LQFP64
  • Number of I/O pins: up to 52
  • Oscillators: 32.768 kHz LSE, 24 MHz HSE
  • Indicators and buttons: 1 LED (shared with Arduino), 1 user button, 1 RESET button
  • Connectors: ARDUINO Uno V3, ST morpho, USB for ST-LINK
  • Debugger: integrated ST-LINK (STLINK-V3EC), MIPI debug connector
  • Power supply: USB VBUS or external power source
  • USB interface: USB SNK/UFP on USB Type-C connector, CAN FD
  • Integrated cryptographic module
  • Supported tools: STM32Cube MCU Package, STM32CubeIDE, IAR Embedded Workbench, MDK-ARM
1204601

Data sheet

Microcontroller
STM32C562RE
Flash memory
512kB
Number of I/O
52
Ethernet
none
WiFi/BT module
No
Bluetooth module
No
MicroSD slot
No
Length
Other
Width
Other
USB connector type
USB type C
