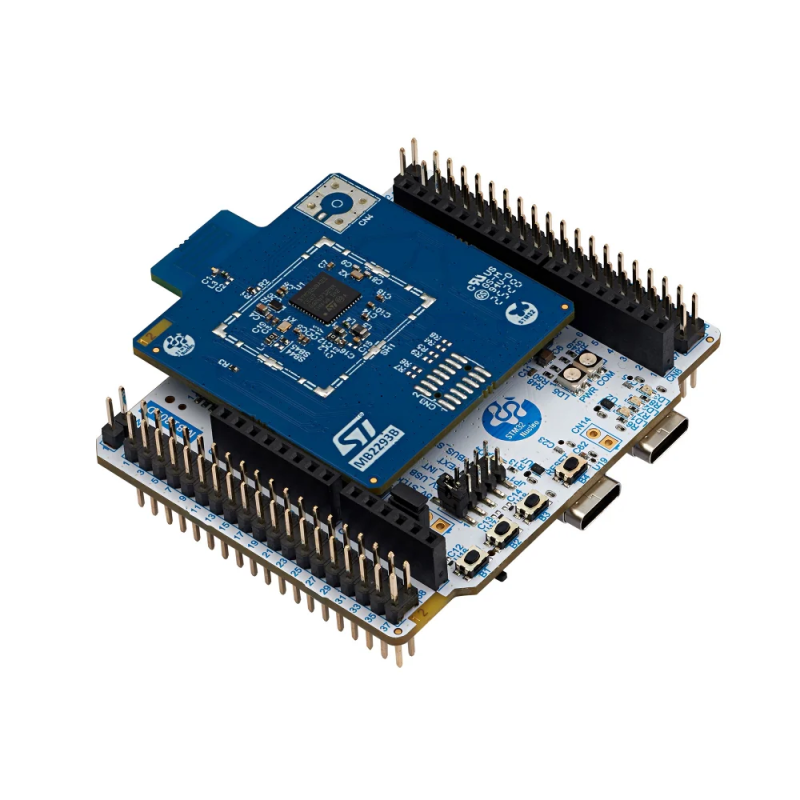

The NUCLEO-WBA25CE1 is a low-power STM32 development board with Bluetooth LE, Thread, and Zigbee support, designed for IoT projects. ST Morpho and Arduino Uno V3 connectors enable flexible expansion and rapid prototyping. STMicroelectronics NUCLEO-WBA25CE1

1 weeks
Awaiting delivery

Description

The NUCLEO-WBA25CE1 development board, equipped with the STM32WBA25CE microcontroller based on the ARM Cortex-M33 core, enables the development of wireless applications using Bluetooth Low Energy as well as Thread and Zigbee protocols compliant with IEEE 802.15.4-2015. The microcontroller features 512 kB of Flash memory and 64 kB of SRAM and comes in a UFQFPN48 package. The board includes a 2.4 GHz transceiver with an integrated PCB antenna, a built-in STLINK-V3 programmer/debugger supporting MSC, Virtual COM, and debug port functions, as well as a USB Type-C interface. ST morpho and ARDUINO Uno V3 connectors provide full access to the microcontroller pins and enable easy expansion with additional modules. Support for STM32CubeIDE, IAR Embedded Workbench, and MDK-ARM development environments is provided. High integration of RF components allows for designing simple, two-layer PCBs.

Features

  • Microcontroller: STM32WBA25CE, ARM Cortex-M33
  • Flash memory: 512 kB
  • SRAM: 64 kB
  • Package: UFQFPN48
  • Number of I/O pins: up to 26
  • Radio interface: Bluetooth Low Energy v6.2, IEEE 802.15.4 (Thread, Matter, Zigbee)
  • Integrated PCB antenna
  • Connectors: USB Type-C, ARDUINO Uno V3, ST morpho
  • Debugger: STLINK-V3 (MSC, Virtual COM, debug port)
  • Power supply: via USB ST-LINK or external source
  • User elements: 3 user buttons, 1 RESET button, 3 LEDs
1204845

Data sheet

Microcontroller
STM32WBA25CE
Flash memory
512kB
Number of I/O
26
Ethernet
none
WiFi/BT module
No
Bluetooth module
Yes
MicroSD slot
No
Length
Other
Width
Other
USB connector type
USB type C
