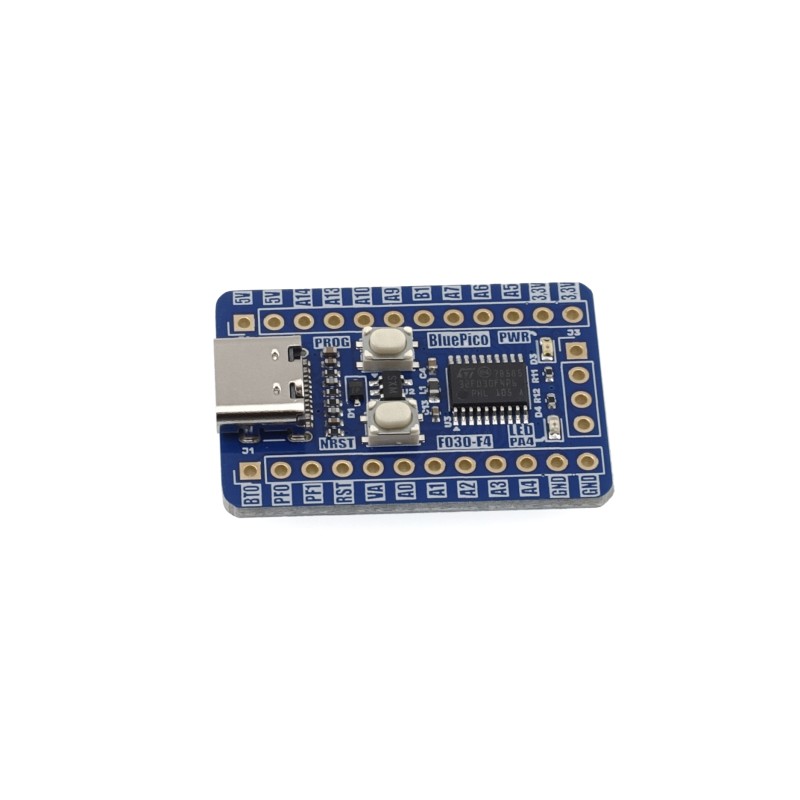

KAmod BluePico STM32F030 – Evaluation Board with STM32F030F4P6 Cortex-M0 Microcontroller
ID: 1196796
5902186306455
zł22.90
Tax included
zł18.62 tax excl.
The KAmod BluePico STM32F030 evaluation board includes the STM32F030F4P6 microcontroller and all necessary components for power supply, programming, and communication. Its compact size and versatile GPIO configuration make it suitable for educational use, prototyping, and embedded industrial applications.
Description
The KAmod BluePico STM32F030 evaluation board features the STM32F030F4P6 microcontroller (ARM Cortex-M0 core, 48 MHz), enabling a quick start with the STM32 platform. The microcontroller offers 16 kB Flash memory, 4 kB RAM, a 12-bit ADC, five timers, and I2C, SPI, UART, RTC, and CRC interfaces. It is clocked by a precise quartz resonator. The board includes a USB-C connector for power supply, programming, and USB-UART communication via the onboard USB-UART converter and preconfigured bootloader. It provides 15 GPIO pins and 5 V / 3.3 V power lines on standard 2.54 mm pitch headers. The maximum current load is 500 mA for the 5 V line and 200 mA for the 3.3 V line. An SWD interface connector is available for programming and debugging. The board supports programming via both STM32CubeProgrammer and the Arduino IDE. Its compact form factor (32.5 × 23 mm) makes it suitable for mobile and prototyping applications.
Features
- STM32F030F4P6 microcontroller: Cortex-M0, 16 kB Flash, 4 kB RAM, 48 MHz, 12-bit ADC, 5 timers, I2C, SPI, UART, RTC, CRC
- Microcontroller clocked by a precise quartz resonator
- USB-C connector for power, USB-UART communication, and programming
- 15 GPIO pins and 5 V / 3.3 V power lines on 2.54 mm pitch headers
- Maximum load for 5 V line: 500 mA
- Maximum load for 3.3 V line: 200 mA
- SWD interface connector for programming/debugging
- Compatible with STM32CubeProgrammer and Arduino IDE
- Dimensions: 32.5 × 23 mm, height approx. 7 mm (without header pins)
Included
- Assembled and tested module
- 2 × straight 12-pin 2.54 mm pitch header strips
- 1 × right-angle 4-pin 2.54 mm pitch header strip
