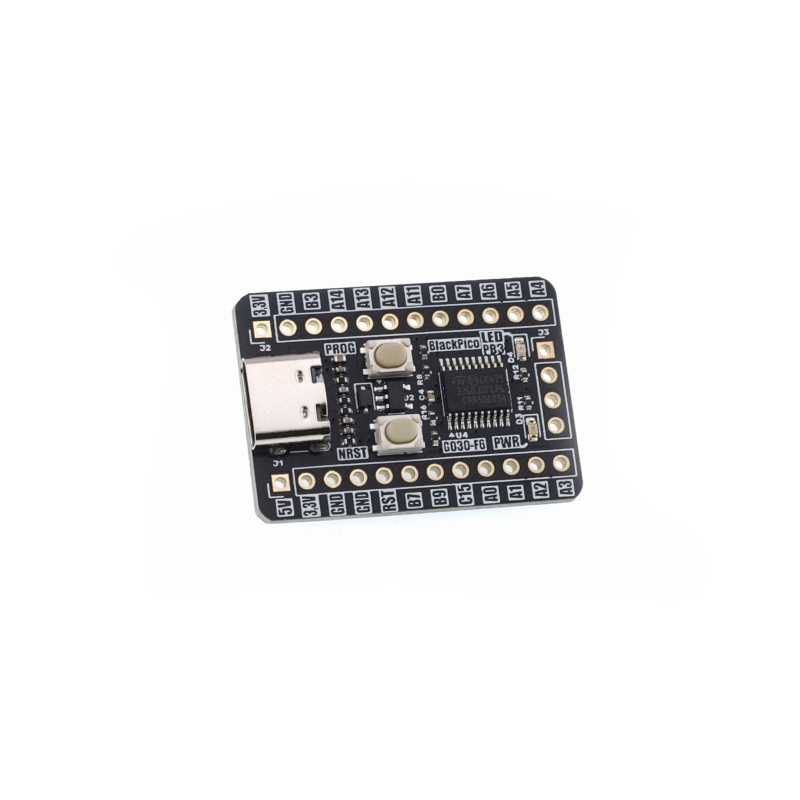

KAmod BlackPico STM32G030 – Evaluation Board with STM32G030F6P6 Cortex-M0+ Microcontroller
ID: 1196797
5902186306462
zł29.90
Tax included
zł24.31 tax excl.
The KAmod BlackPico STM32G030 board, based on the STM32G030F6P6 microcontroller, offers extended communication and signal processing capabilities in a compact form factor. Suitable for embedded, educational, and industrial projects, it enables rapid development using popular toolchains.
Description
The KAmod BlackPico STM32G030 evaluation board is equipped with the STM32G030F6P6 microcontroller (ARM Cortex-M0+ core, 64 MHz), allowing quick development of projects based on the STM32G0 family. The microcontroller offers 32 kB Flash memory, 8 kB RAM, a 12-bit ADC, five timers, dual I2C, SPI, and UART interfaces, as well as RTC, CRC, and DMA. A USB-C connector is used for both power supply and programming, and it also serves as a USB-UART communication interface via an integrated USB-UART converter and a preconfigured bootloader. The board provides 17 GPIO pins and 5 V / 3.3 V power lines on 2.54 mm pitch headers. The maximum load for the 5 V line is 500 mA, and for the 3.3 V line, 200 mA. An SWD interface connector is available for programming and debugging. Compatibility with STM32CubeProgrammer and the Arduino IDE ensures flexibility in development environments. Compact dimensions (32.5 × 23 mm) make the board suitable for mobile and space-constrained applications.
Features
- STM32G030F6P6 microcontroller: Cortex-M0+, 32 kB Flash, 8 kB RAM, 64 MHz, 1 × 12-bit ADC, 5 timers, 2 × I2C, 2 × SPI, 2 × UART, RTC, CRC, DMA
- USB-C connector for power, USB-UART communication, and programming
- 17 GPIO pins and 5 V / 3.3 V power lines on 2.54 mm pitch headers
- Maximum load for 5 V line: 500 mA
- Maximum load for 3.3 V line: 200 mA
- SWD interface connector for programming/debugging
- Compatible with STM32CubeProgrammer and Arduino IDE
- Dimensions: 32.5 × 23 mm, height approx. 7 mm (without header pins)
Included
- Assembled and tested module
- 2 × straight 12-pin 2.54 mm pitch header strips
- 1 × right-angle 4-pin 2.54 mm pitch header strip
1196797
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
