New products
zł26.79 tax excl.

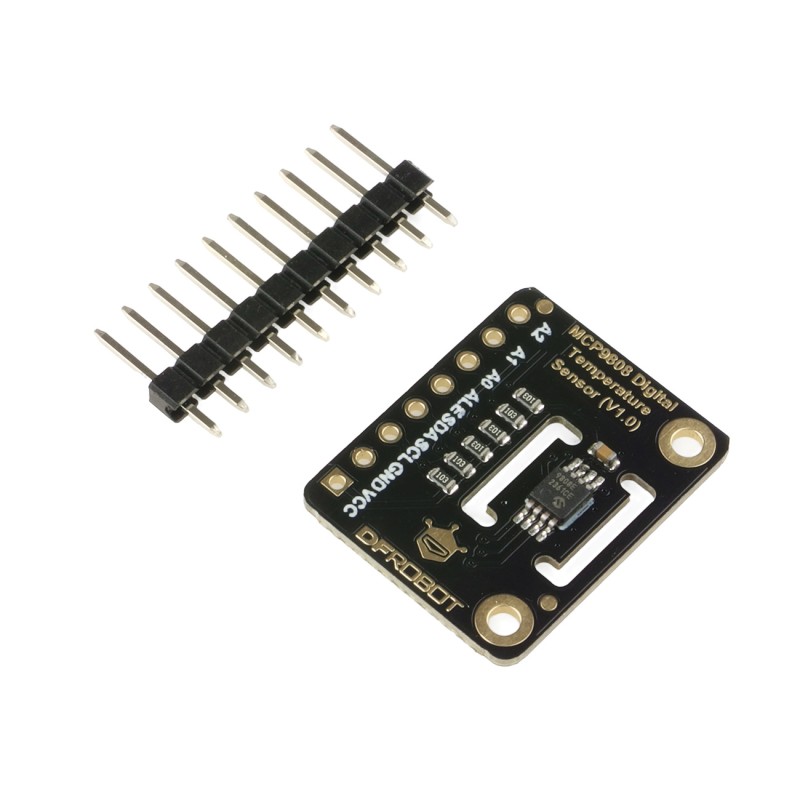

A module with a high precision temperature sensor based on the MCP9808 chip. It allows for measurements with an accuracy of ±0.25°C and communicates via the I2C interface. DFRobot SEN0435
Free shipping
free shipping in Poland for all orders over 500 PLN
Same day shipping
If your payment will be credited to our account by 11:00
14 days for return
Each consumer can return the purchased goods within 14 days
Description
A module with a high precision temperature sensor based on the MCP9808 chip. It offers a high accuracy of ± 0.25°C in the range from -40 to 125°C with a resolution of 0.0625°C. The module is compatible with 3.3 V and 5 V controllers, and communication is via the I2C interface. The bus address can be modified with three pins, which allows you to choose one of the 8 available addresses. Full documentation is available on the product page.
Features
- Accuracy: 0.25°C in the range from -40°C to 125°C
- Resolution 0.0625°C
- Up to 8 sensors on one I2C bus
- Jumpers for I2C address configuration
- Power and logic voltage range from 2.7 V to 5.5 V
- Working current: 200 μA
- Dimensions: 18.5 x 23 mm
Kit contains
- Fermion: MCP9808 High Accuracy I2C Temperature Sensor
- 8-pin goldpin male connector
Data sheet
- Interface
- I2C
- Type of sensor
- MCP9808
- Power supply voltage
- 2.7..5.5V
- Sensor type
- Temperatury
