A compact pressure and temperature module ideal for weather stations, drones, and IoT projects. It offers a measurement range of 300–1100 hPa with ±3 Pa accuracy and temperature measurement with ±1°C precision. With a built-in 3.3V regulator and logic level converter, it works with both 3V and 5V microcontrollers. STEMMA QT/Qwiic connectors make it easy to quickly connect and daisy-chain multiple sensors in a single system. Adafruit 6420

24h
Available
Available quantity: 3
Kamami is the official distributor of Adafruit modules and development kits. All boards of this brand in our offer are original and come directly from the manufacturer.

Description

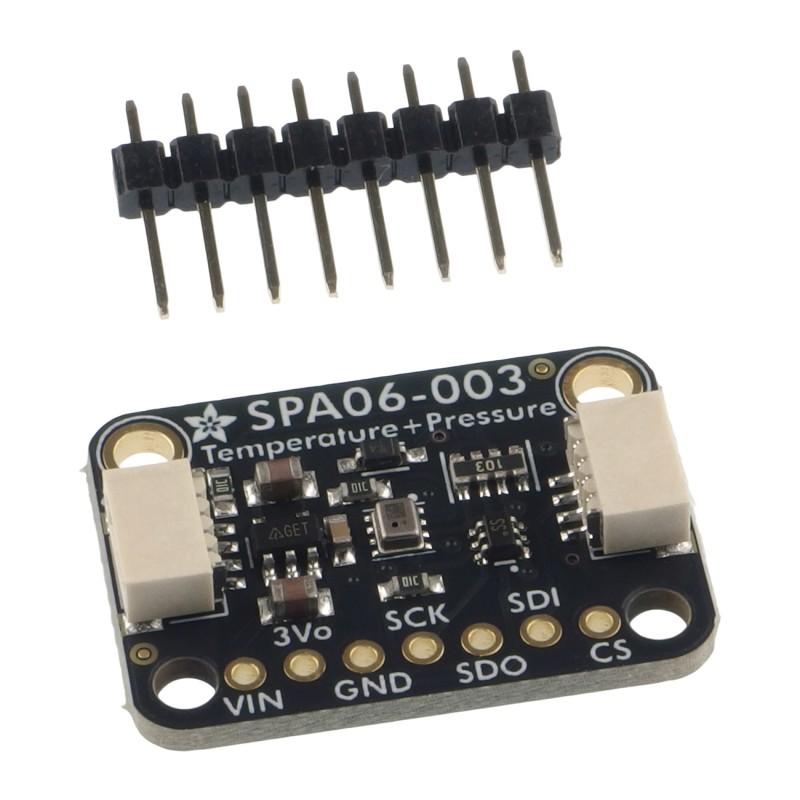

SPA06-003 Temperature + Pressure Sensor is a compact module featuring a pressure and temperature sensor from Goertek, ideal for use in hobbyist and educational projects. The device performs excellently in measuring pressure within a range of 300 to 1100 hPa, corresponding to altitudes from approximately -500 to +9000 meters above sea level. This makes it suitable for applications such as quadcopters, weather stations, or environmental monitoring systems. The sensor offers a pressure measurement accuracy of ±3 Pa (equivalent to ±0.25 meters) and an absolute accuracy of ±30 Pa (approximately ±2.5 meters). Temperature is measured with an accuracy of ±1°C, making it sufficiently precise for most DIY applications. Its simplicity and reliability make it an excellent choice for users seeking dependable readings in basic projects.

The module is equipped with a built-in 3.3V voltage regulator and a logic level converter, enabling compatibility with both 3V and 5V microcontrollers such as Arduino, ESP32, Raspberry Pi, and other development boards. The PCB is designed in the STEMMA QT standard, allowing fast and easy connections using Qwiic-compatible connectors from SparkFun. With two STEMMA QT ports, it also supports daisy-chaining multiple sensors and accessories within a single project. The Adafruit SPA06-003 is an ideal solution for makers seeking a simple, robust, and cost-effective sensor for measuring pressure, altitude, and temperature. Its compact size, lightweight design, and easy integration make it perfect for mobile or space-constrained electronic projects.

Features

  • Pressure measurement range: 300–1100 hPa (approx. -500 to +9000 m a.s.l.)
  • Relative accuracy: ±3 Pa (±0.25 m)
  • Absolute accuracy: ±30 Pa (±2.5 m)
  • Temperature measurement accuracy: ±1°C
  • Built-in 3.3V voltage regulator
  • Supports 3V and 5V logic via level shifting
  • STEMMA QT / Qwiic I2C connectors
  • Power supply: 3.3V or 5V (via I2C interface)
  • Communication interface: I2C
  • Dimensions: 25.3 x 17.7 x 4.7 mm
  • Weight: 1.7 g

Kit contains

  • SPA06-003 sensor module
  • Goldpin connector
1201820

Data sheet

Interface
I2C
Type of sensor
SPA06-003
Power supply voltage
3,3 V/5 V
Sensor type
Pressures and temperatures
