- New

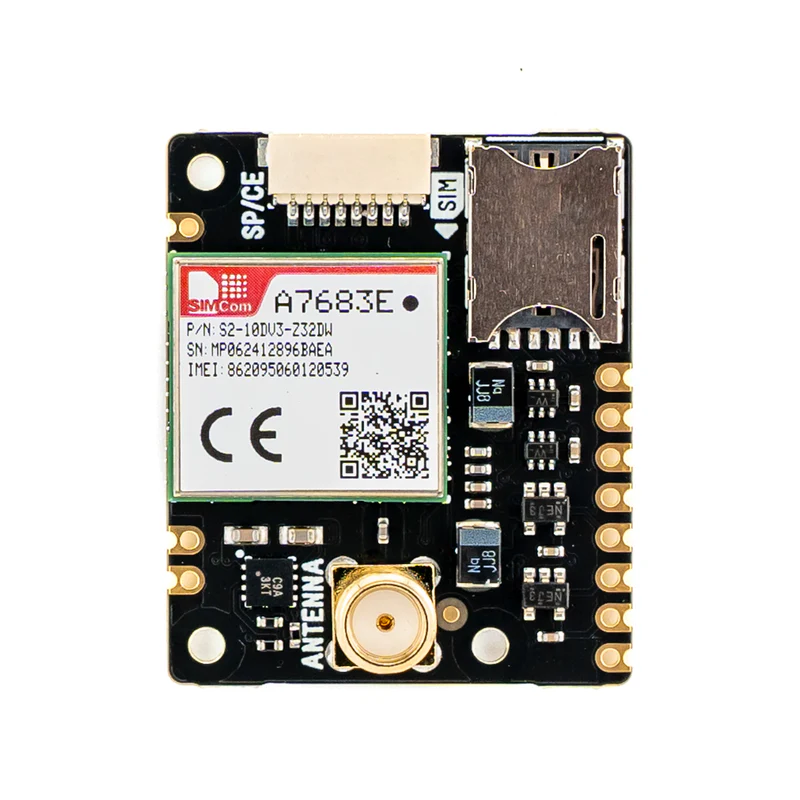

Clipper LTE 4G (SP/CE) - GSM 4G LTE communication module
ID: 1198998
zł142.24
Tax included
zł115.64 tax excl.
This 4G LTE module provides reliable data transmission over the cellular network, ideal for IoT projects in hard-to-reach locations. Equipped with an SP/CE connector, SIM slot, and SMA antenna, it allows for solderless connection and quick integration with a Raspberry Pi or Pico. It supports European LTE bands and, with low data usage, works well with prepaid cards. Pimoroni PIM716
Description
Clipper LTE 4G is a compact communication module that enables sending and receiving data over 4G LTE cellular networks, making it ideal for mobile and remote projects. It is perfect for situations where Wi-Fi is unavailable, unstable, or has insufficient range. Thanks to cellular data connectivity, your device can operate virtually anywhere within LTE coverage. The module is well suited for applications such as environmental monitoring, IoT systems, artistic installations, home automation, mobile projects, and telemetry systems. Clipper is based on the efficient SIMCom A7683E modem and communicates using standard AT commands, making integration with microcontrollers straightforward. The SP/CE connector allows quick, solder-free connection to compatible boards, while additional solder pads provide greater flexibility for advanced users. A SIM card slot and an SMA connector for an LTE antenna ensure full communication functionality. Low data consumption makes the module ideal for use with prepaid SIM cards. Clipper is compatible with Raspberry Pi Pico, RP2040, RP2350, and Raspberry Pi computers, making it a versatile solution for IoT projects.
Features
- LTE module: SIMCom A7683E
- Supported LTE-FDD bands: B1 / B3 / B5 / B7 / B8 / B20 / B28
- Controlled via AT commands
- SP/CE connector (8-pin JST-SH) for solder-free connection
- SIM card slot
- SMA connector for LTE antenna
- Compatibility: Raspberry Pi Pico, RP2040, RP2350, Raspberry Pi
- Powered via the connected microcontroller
- No soldering required when using the SP/CE cable
- Dimensions: 35 × 29 × 5 mm
- Antenna connector height: 11 mm
1198998
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
