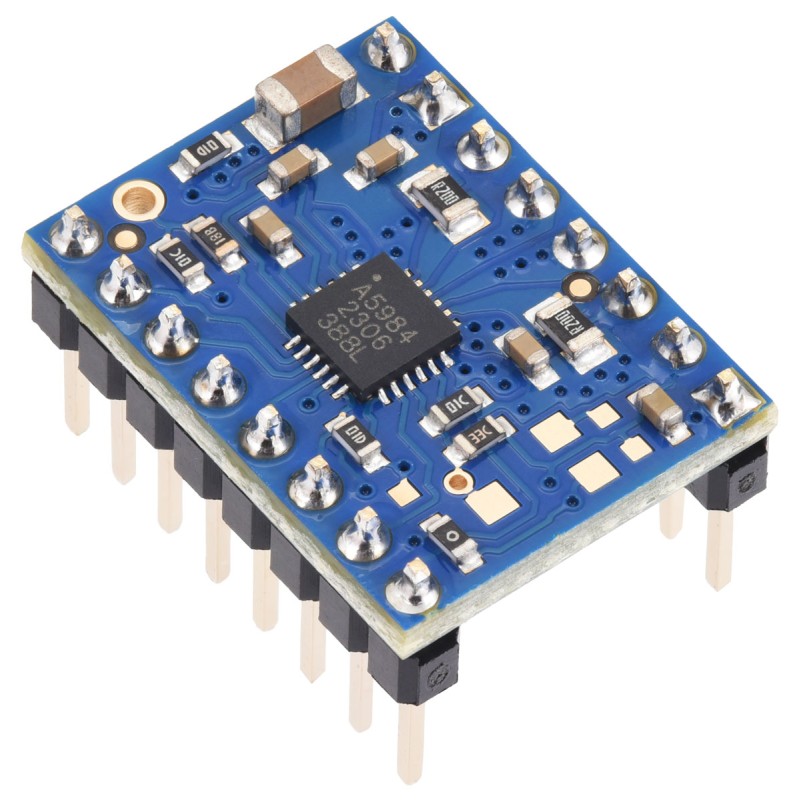

Main view
search
  • Main view
  • Top view
ID: 1194460
zł28.20
Tax included

zł22.93 tax excl.

Stepper motor driver based on the A5984 IC, with soldered header pins, designed for controlling bipolar stepper motors in electronics and robotics projects. Pololu 5347

24h
Available
Available quantity: 5
Kamami is the official distributor of electronic modules and Pololu robotic parts. All products of this brand in our offer are original and come directly from the manufacturer.

Description

Stepper motor driver Pololu 5347 is used for controlling bipolar stepper motors in applications requiring current control and microstepping. The module is based on the A5984 driver from Allegro MicroSystems and supports operation with 5 V or 3.3 V logic levels. The version with soldered header pins allows direct use with solderless breadboards or 16-pin sockets without additional soldering.



The driver supports microstepping down to 1/32 step resolution and uses the Adaptive Percent Fast Decay (APFD) current control algorithm to optimize the current waveform in motor coils. A four-layer PCB improves heat dissipation and operational stability. The module includes overcurrent, thermal shutdown, and undervoltage protection, enabling use in prototyping systems and robotics applications.

Features

  • driver IC: A5984
  • motor type: bipolar stepper motor
  • maximum output current: 1A (VDD = 5 V) / 660 mA (VDD = 3.3 V)
  • motor supply voltage: 8–40 V
  • logic voltage: 2.5–5.5 V
  • supported step modes: full step, half step, 1/4, 1/8, 1/16, 1/32
  • control interface: STEP/DIR
  • current control algorithm: APFD (Adaptive Percent Fast Decay)
  • protections: overcurrent, thermal shutdown, undervoltage lockout
  • soldered header pins (2.54 mm pitch)
  • four-layer PCB (Blue Edition)
  • pinout compatible with A4988 (except FAULT pin)
  • dimensions: 0.6″ × 0.8″ (approx. 15.2 × 20.3 mm)
  • weight: approx. 2.5 g
1194460

Data sheet

Output current
1A
Number of channels
2
Supply voltage min
8 V
Supply voltages max
40 V
