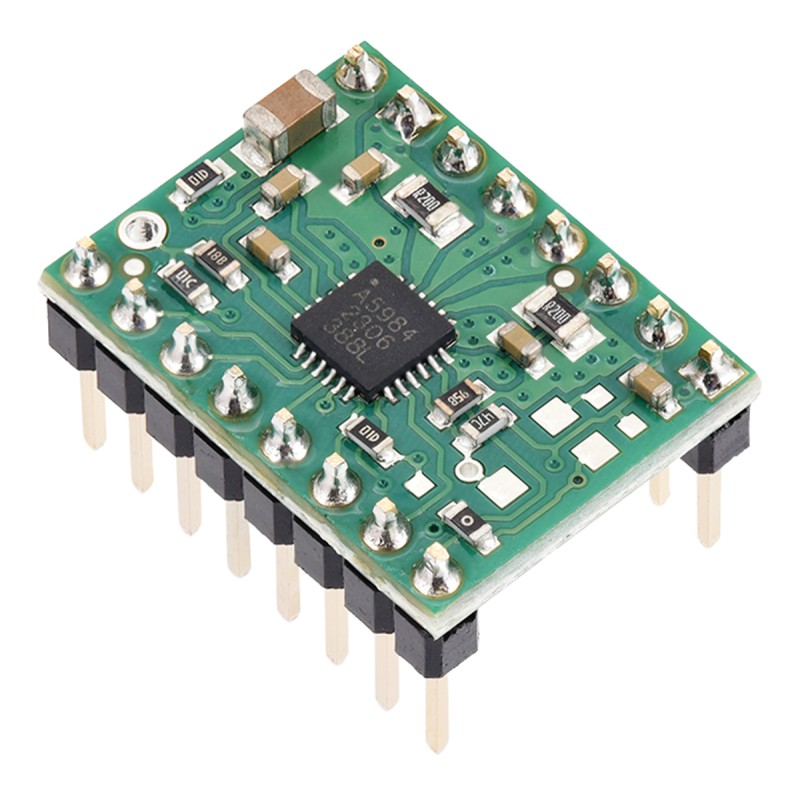

A5984 stepper motor driver for bipolar stepper motors, supply voltage 8–40 V, fixed current limit of 750 mA at 5 V or 500 mA at 3.3 V, microstepping up to 1/32, and STEP/DIR interface. Version with soldered header pins. Pololu 5349

24h
Available
Available quantity: 5
Kamami is the official distributor of electronic modules and Pololu robotic parts. All products of this brand in our offer are original and come directly from the manufacturer.

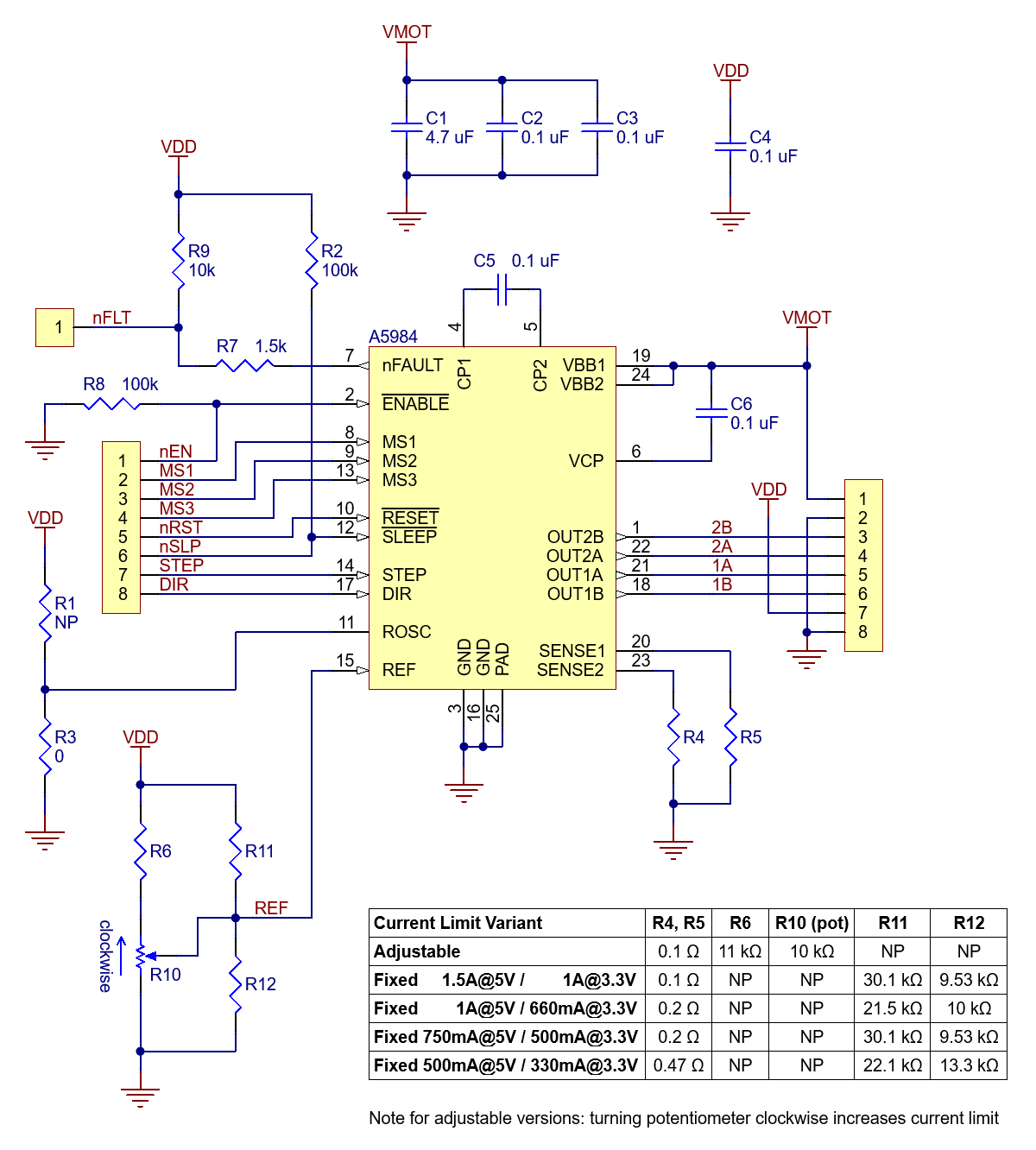

Description

A5984 stepper motor driver designed for controlling bipolar stepper motors in automation systems, robotics, and electromechanical applications. The driver is controlled via a simple STEP/DIR interface, enabling easy integration with microcontrollers and development platforms. It supports eight microstepping modes, from full step to 1/32 step, allowing for smooth motion and precise positioning.


The driver operates with a motor supply voltage range of 8 V to 40 V and a logic voltage from 2.5 V to 5.5 V. It features a fixed current limit of 750 mA at 5 V logic or 500 mA at 3.3 V, eliminating the need for manual adjustment. The Adaptive Percent Fast Decay (APFD) algorithm automatically optimizes the current waveform, reducing noise and vibration while improving accuracy. Built-in protections include overcurrent, thermal shutdown, and undervoltage lockout. The module remains compatible in pinout and interface with popular A4988 drivers, making it a convenient drop-in replacement. This version includes factory-soldered header pins, allowing immediate use with solderless breadboards and standard 16-pin sockets without additional soldering.

Features

  • Driver IC: Allegro A5984
  • Motor type: bipolar stepper motor
  • Motor supply voltage: 8 – 40 V
  • Logic voltage: 2.5 – 5.5 V
  • Max phase current at VDD 5 V: 750 mA
  • Max phase current at VDD 3.3 V: 500 mA
  • Control interface: STEP / DIR
  • Microstep resolutions: full step 100%, full step 70%, 1/2, 1/4, 1/8, 1/16, 1/32
  • Current control algorithm: Adaptive Percent Fast Decay (APFD)
  • Overcurrent protection
  • Thermal protection
  • Undervoltage lockout
  • Open-drain FAULT output
  • Exposed ground pad for soldering under the IC
  • Soldered header pins
  • Pin pitch: 2.54 mm
  • Dimensions: 15.24 × 20.32 mm
  • Weight: 2.3 g
1194462

Data sheet

Output current
750 mA
Number of channels
2
Supply voltage min
8 V
Supply voltages max
40 V
