PCIe TO M.2 USB ETH HAT+
search
  • PCIe TO M.2 USB ETH HAT+
  • PCIe TO M.2 USB ETH HAT+
  • PCIe TO M.2 USB ETH HAT+
  • PCIe TO M.2 USB ETH HAT+
ID: 1198906
zł188.26
Tax included

zł153.06 tax excl.

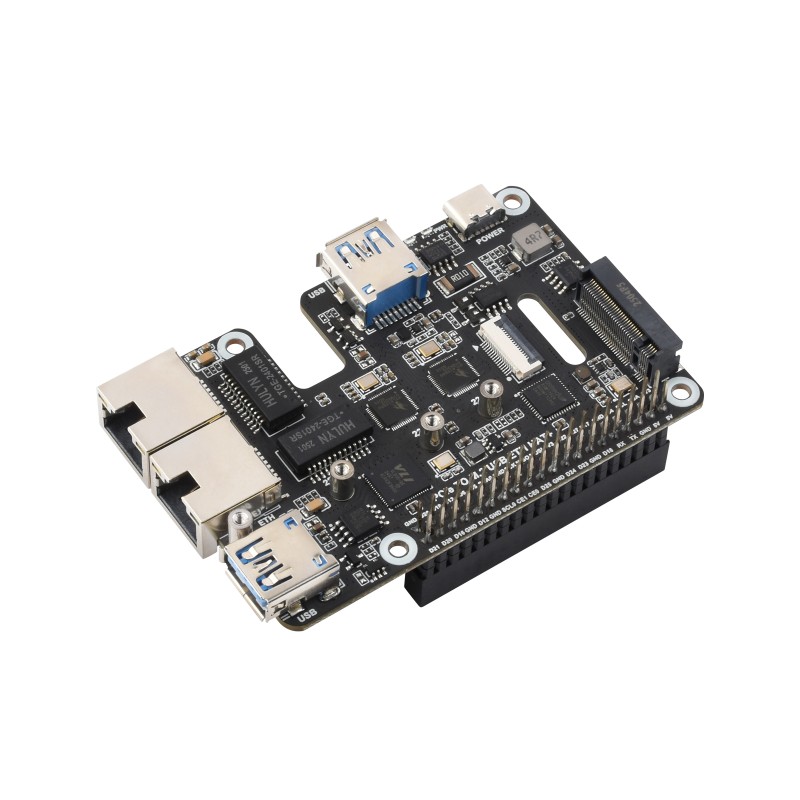

PCIe TO M.2 USB ETH HAT+ Add-on Board – Expansion for Raspberry Pi 5 providing USB 3.2 ports, 2.5G Ethernet, and an M.2 slot for high-speed NVMe drives. Enables significant operational and communication performance upgrades for embedded systems and Raspberry Pi-based servers.

4 weeks
Awaiting delivery
Kamami is the official distributor of Waveshare displays, accessories and modules.

Description

The PCIe TO M.2 USB ETH HAT+ expansion module, designed for Raspberry Pi 5, enables the connection of high-speed NVMe SSDs and expands communication interfaces. Through the 16-pin PCIe connector, the board provides two USB 3.2 Gen1 ports and two 2.5G Ethernet ports, significantly enhancing the capabilities of Raspberry Pi–based systems. It supports NVMe drives in sizes 2230 / 2242 / 2260 / 2280 and allows booting the operating system directly from the SSD. The integrated RTL8156B controller enables fast network connections, while the onboard EEPROM and power monitoring chip improve drive stability. No driver installation is required—fully plug & play.

Features

  • Main interface: PCIe 16-pin (for Raspberry Pi 5)
  • USB ports: 2× USB 3.2 Gen1
  • Ethernet ports: 2× 2.5G (RTL8156B controller)
  • SSD slot: M.2 M-Key, NVMe protocol support (sizes 2230 / 2242 / 2260 / 2280)
  • Boot support: NVMe SSD boot capability
  • Performance: significantly faster than TF cards
  • Extras: 2× status LEDs, EEPROM, power monitoring chip
  • Mounting: compatible with official Raspberry Pi 5 active cooler
  • Dimensions: 85.0 × 56.5 mm

Included in the set

  • PCIe TO M.2 USB ETH HAT+ ×1
  • PCIe 16-pin cable ×1
  • Mounting screw set ×1
1198906

Data sheet

Compatible with
Raspberry Pi 5
