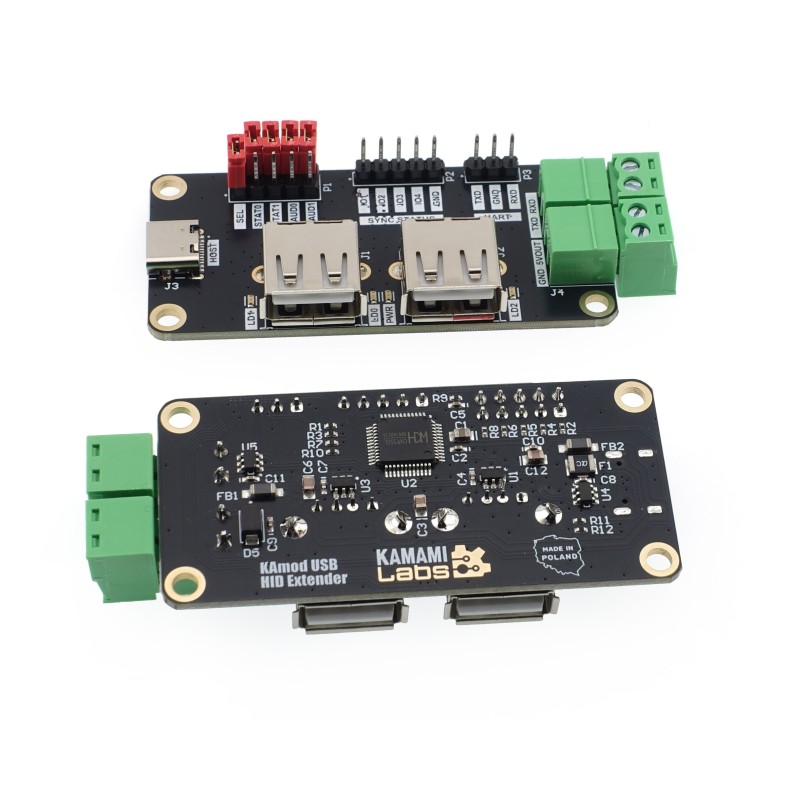

KAmod USB HID – USB HID Device Extender with CH9350 Chip
ID: 1195768
5902186302549
zł77.90
Tax included
zł63.33 tax excl.
The KAmod USB HID module with the CH9350 chip enables reliable extension of USB HID signals via UART transmission, offering stable connections over long distances. With built-in protection features, advanced LED indicators, and full system compatibility, the device is ideal for industrial applications, embedded systems, and advanced control setups using standard HID devices.
Description
The KAmod USB HID module enables extending the connection between a computer and HID devices (keyboard, mouse) over distances far exceeding the standard USB cable length—up to 20 meters. Communication is established via a UART interface (RXD, TXD), while peripheral device power is delivered over separate lines. Featuring the CH9350 chip and ESD protection on all ports, the module ensures stable performance and high resistance to interference. It is compatible with operating systems that support the HID standard, without the need for additional drivers.
Features
- USB-C socket for host connection (e.g., computer)
- 2× USB Type-A sockets for connecting HID devices
- 2× 3.81 mm screw terminals for UART data and power transmission
- 1×5 goldpin header – status outputs
- 1×3 goldpin header – UART interface and ground
- 2×5 goldpin header – configuration jumpers
- 4 LEDs – power and operation status indicators
- Built-in ESD protection on USB, UART, and power ports
- Power supply: 5 V DC from USB-C port
- OS support: Windows, Linux, macOS
- Maximum cable length: up to 20 m (depending on cable quality and conditions)
- PCB dimensions: 65.2 × 30.8 mm
- Mounting holes: Ø3.2 mm, spacing 59 × 25 mm
Included
- 2 assembled and tested modules
- 2 sets of configuration jumpers (2 × 5 pcs)
