zł80.04 tax excl.

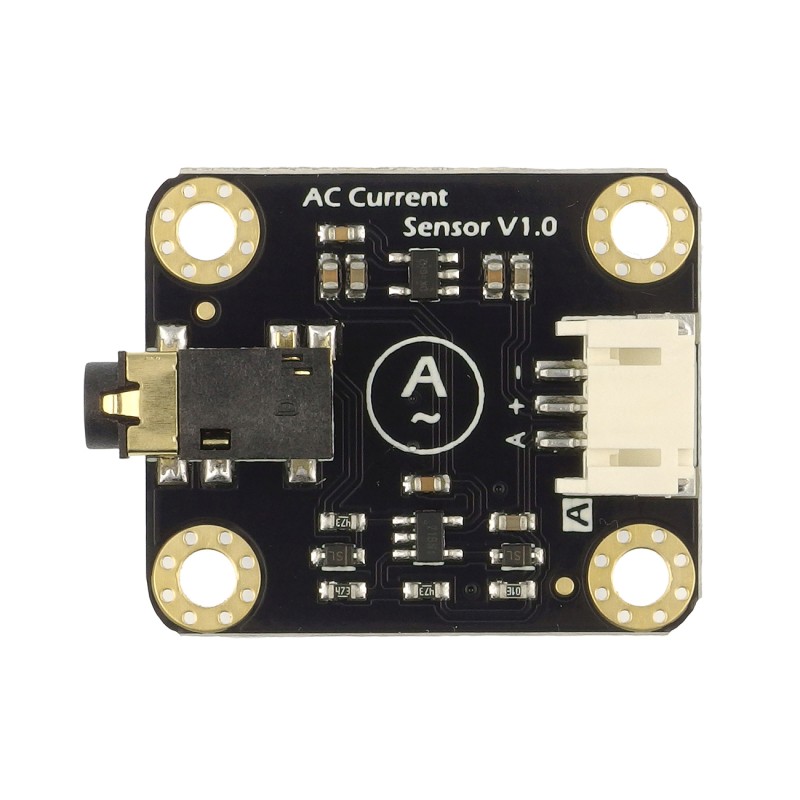

Module with an analog AC current sensor in a set with a probe for non-contact measurement of alternating current with a current of up to 20 A. DFRobot SEN0211
Free shipping
free shipping in Poland for all orders over 500 PLN
Same day shipping
If your payment will be credited to our account by 11:00
14 days for return
Each consumer can return the purchased goods within 14 days
Description
Module with an analog AC current sensor in a set with a probe for non-contact measurement of alternating current with a current of up to 20 A. The probe is connected to the measuring module via a 3.5 mm Jack connector. The measuring module has an analog output compatible with the Gravity standard. The set allows you to easily measure AC current with a microcontroller without the need to cut the wires. It allows the construction of an automatic monitoring system for an AC motor or measurements of lighting and electrical equipment. On the Wiki page there is a user manual with sample Arduino code.
Features
AC Current Signal Conversion Module
- Input Voltage (VCC): 3.3V to 5.5V
- Interface: Gravity Analog (PH2.0-3P,analog voltage output 0.2-2.8V DC)
- AC Voltage Input Range: 0-1V (AC RMS)
- Relative Error: ±4%
- Dimension: 32×27 mm
- Weight: 5g
Open Type AC Transformer Probe
- AC Current Range: 0 to 20A
- Signal Output (standard Φ3.5mm 3P plug): 0-1V AC voltage, linear corresponding range 0-20A
- Accuracy: ±1%
- Non-linearity: ≤±0.2%
- Frequency Range: 50Hz to 1kHz
- Cable Length: 1m
- Working Temperature: -25 ℃ to 70 ℃
- Opening Size: 13×13 mm
- Weight: 50g
Kit contains
- AC Current Signal Conversion Module
- Open Type AC Transformer Probe (20A)
- Gravity-3P Analog Sensor Cable
Data sheet
- Interface
- Sygnał analogowy
- Zakres pomiarowy
- 0 - 20 A
- Sposób podłączenia
- Nieinwazyjny
