zł32.16 tax excl.
Board with WiFi and Bluetooth Espressif ESP32-C3 module. It offers 4MB Flash and 400KB SRAM and a LiPo charging circuit. The set includes an expansion board with a display connector. DFRobot DFR0868
Free shipping
free shipping in Poland for all orders over 500 PLN
Same day shipping
If your payment will be credited to our account by 11:00
14 days for return
Each consumer can return the purchased goods within 14 days
Description

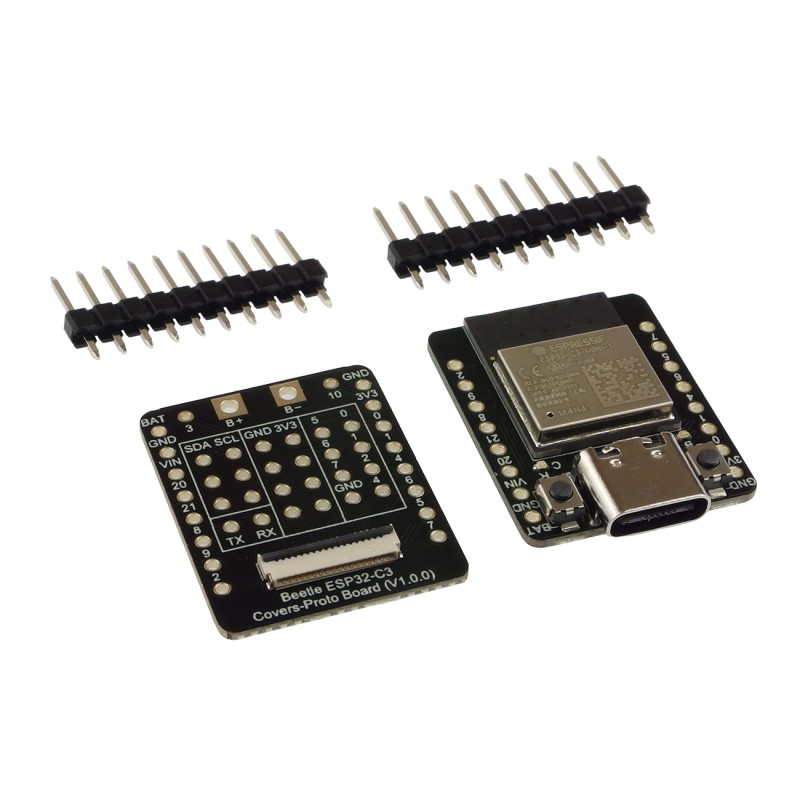

Board with the WiFi Espressif ESP32-C3 module. It has 4 MB of Flash memory, 400 KB of SRAM memory and an integrated 2.4 GHz WiFi and Bluetooth 5 transceiver. The board has a LiPo charging system. On 13 GPIO pins, the user has at his disposal analog inputs, PWM, I2C, UART, SPI and I2S interface.
The set includes an expansion board, on which the user will find several prototype holes and a connector with a GDI interface that allows connection to the display module.
The module offers great possibilities in the field of IoT systems and can be used both to control LEDs and to transfer data to a specific platform. It can also be programmed using Arduino IDE, ESP-IDF or MicroPython. Full documentation is available on the product page.
Features
- RISC-V 32-bit single-core processor
- 4 MB SPI Flash Memory
- 400 KB of SRAM
- Wi-Fi 2.4 GHz, IEEE 802.11b/g/n
- Bluetooth 5 (BLE + Mesh)
- PCB antenna
- LiPo charging circuit
- Power supply: USB type C
- 13 GPIO pins: 6 analog inputs ADC 12-bit, PWM, I2C, UART, SPI, I2S
- Expansion module with GDI connector
- Dimensions: 25 x 20.5 mm
Kit contains
- Beetle ESP32-C3
- Beetle ESP32-C3 expansion module
- 2 x 8-pin straight goldpin connector
