ESP32-S3-POE-ETH-CAM-KIT enables rapid implementation of projects in smart monitoring, wired and wireless communication, and edge systems. Complete functionality with camera support and PoE power makes it a versatile solution for professional IoT applications.

4 weeks
Awaiting delivery
Kamami is the official distributor of Waveshare displays, accessories and modules.

Description

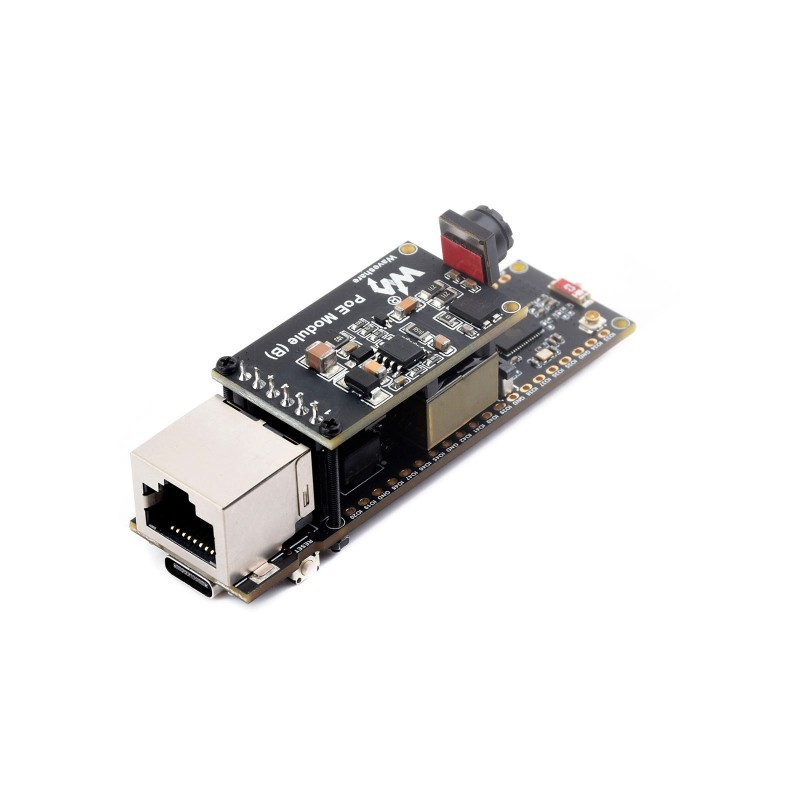

ESP32-S3-POE-ETH-CAM-KIT is a complete development platform based on the powerful ESP32-S3R8 microcontroller, featuring a 10/100 Mbps Ethernet interface with PoE support and an OV2640 camera module. The board supports wireless communication via 2.4 GHz Wi-Fi and Bluetooth 5 LE, and also enables wired data transmission and power delivery through a single Ethernet port (compliant with IEEE 802.3af). The integrated camera connector allows for image acquisition, while the built-in microSD card slot supports data storage.

Compatibility with Raspberry Pi Pico pinout allows for expansion with popular HATs. The board is intended for use in AIoT systems, video monitoring, smart home solutions, and HMI or edge computing applications.

Features

  • Microcontroller: ESP32-S3R8 with dual-core Xtensa LX7, 240 MHz
  • Memory: 512 KB SRAM, 384 KB ROM, 8 MB PSRAM, 16 MB Flash
  • Wireless: 2.4 GHz Wi-Fi (802.11b/g/n), Bluetooth 5 LE with ceramic antenna (switchable to external via IPEX)
  • Ethernet: W5500 chip (SPI), RJ45 10/100 Mbps port
  • PoE support: IEEE 802.3af via included PoE module
  • Camera interface: compatible with OV2640 / OV5640
  • Storage: TF card slot (microSD)
  • USB Type-C for power, programming, and debugging
  • Raspberry Pi Pico-compatible header, compatible with selected HATs
  • Status indicators: ACT, LINK; BOOT and RESET buttons

Included in the set

  • ESP32-S3-ETH board x1
  • PoE module x1
  • OV2640 camera x1
  • Mounting screw set x1
  • 40-pin black male header x1
