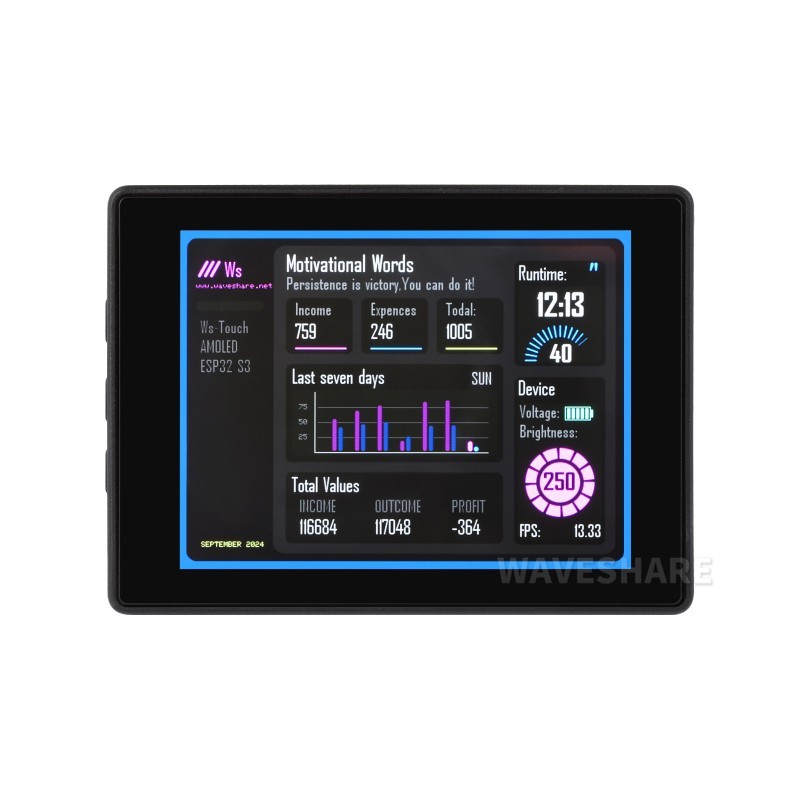

ESP32-S3-Touch-AMOLED-2.41-B is a high-performance module with an AMOLED display and touch panel, enclosed in a protective housing. Thanks to its rich peripheral resources and wireless connectivity, it is well suited for HMI projects, interactive devices, and IoT systems that require high-quality display and responsive touch control.

24h
Available
Available quantity: 1
Kamami is the official distributor of Waveshare displays, accessories and modules.

Description

Development module based on the ESP32-S3R8 chip, featuring a built-in 2.41" AMOLED display with a resolution of 600 × 450 pixels and a capacitive touch panel. Equipped with 16MB Flash and 8MB PSRAM, as well as support for 2.4GHz Wi-Fi and Bluetooth 5 (BLE). Integrated sensors, peripheral connectors, and an aluminum enclosure ensure durability and easy integration into end applications. Designed for HMI projects, touch controllers, interactive devices, and IoT systems.

Features

  • Xtensa LX7 dual-core processor, up to 240 MHz
  • Memory: 512KB SRAM, 384KB ROM, 8MB PSRAM, 16MB Flash
  • AMOLED display 2.41", 600 × 450 px, 16.7M colors, QSPI interface
  • Capacitive touch panel (FT6336), I2C interface, interrupt support
  • Integrated QMI8658 6-axis IMU (accelerometer + gyroscope)
  • RTC PCF85063 with SH1.0 connector for backup battery
  • Connectors: USB Type-C, UART, I2C, TF, GPIO (2.54mm, 34PIN), MX1.25 for battery power
  • Power management: charging circuit for 3.7V Li-Ion battery
  • Supports ESP-IDF and Arduino IDE
  • Pre-installed aluminum case with labeled connectors

Included

  • ESP32-S3-Touch-AMOLED-2.41-B x1
  • SH1.0 4PIN cable ~100 mm x2
