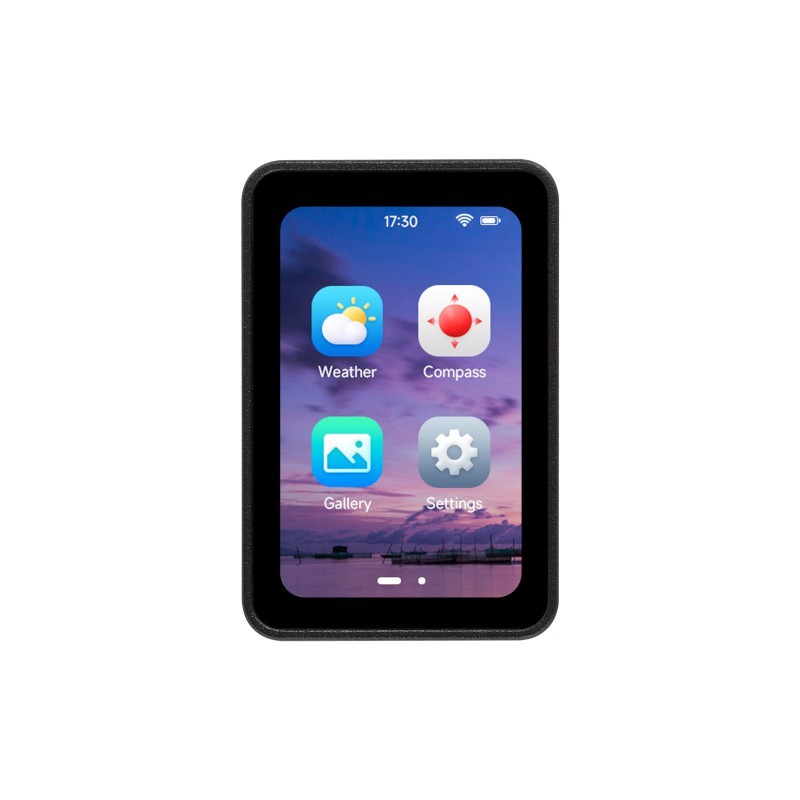

Main view
search
  • Main view
  • Angled view
  • Top view
  • Bottom view
  • Side view
ID: 1204987
zł107.34
Tax included

zł87.27 tax excl.

Development board based on the ESP32-C6 microcontroller featuring a 1.64" AMOLED display with 280×456 px resolution and a capacitive touch panel. The module supports Wi-Fi 6, Bluetooth 5, and IEEE 802.15.4 (Zigbee / Thread), and includes an IMU sensor, TF card slot, and 3.7 V Li-Ion battery connector, enabling IoT and HMI applications. Version without pre-soldered pin headers. Waveshare 34055

6 weeks
Awaiting delivery
Kamami is the official distributor of Waveshare displays, accessories and modules.

Description

ESP32-C6-Touch-AMOLED-1.64 (standard version) serves as a compact development board designed for IoT applications, portable devices, and graphical user interface systems. The design is based on the ESP32-C6 microcontroller featuring a 32-bit RISC-V processor clocked up to 160 MHz, along with an additional low-power core up to 20 MHz, enabling efficient performance and reduced power consumption. The board integrates 16 MB Flash memory and SRAM resources suitable for advanced embedded applications.

The onboard 1.64" AMOLED display with a resolution of 280 × 456 px supports 16.7 million colors, providing high contrast and wide viewing angles. The display is driven by the CO5300 controller via QSPI interface, while touch input is handled by the FT6146 controller using I2C communication. These parameters enable smooth and responsive graphical interfaces, including applications based on frameworks such as LVGL.

The board supports wireless communication including Wi-Fi 6, Bluetooth 5 (BLE, Mesh), and IEEE 802.15.4 (Zigbee 3.0 / Thread), allowing integration with modern IoT and automation systems. Additional onboard components include a QMI8658 6-axis IMU (accelerometer and gyroscope), a TF card slot for external storage, and a 3.7 V Li-Ion battery connector with charging support.


A USB Type-C interface provides power supply, programming, and debugging capabilities. Available I2C, UART, and GPIO pins allow expansion with external peripherals. The design also enables switching to an external antenna. The standard version is delivered without pre-soldered pin headers, allowing flexible mounting options.

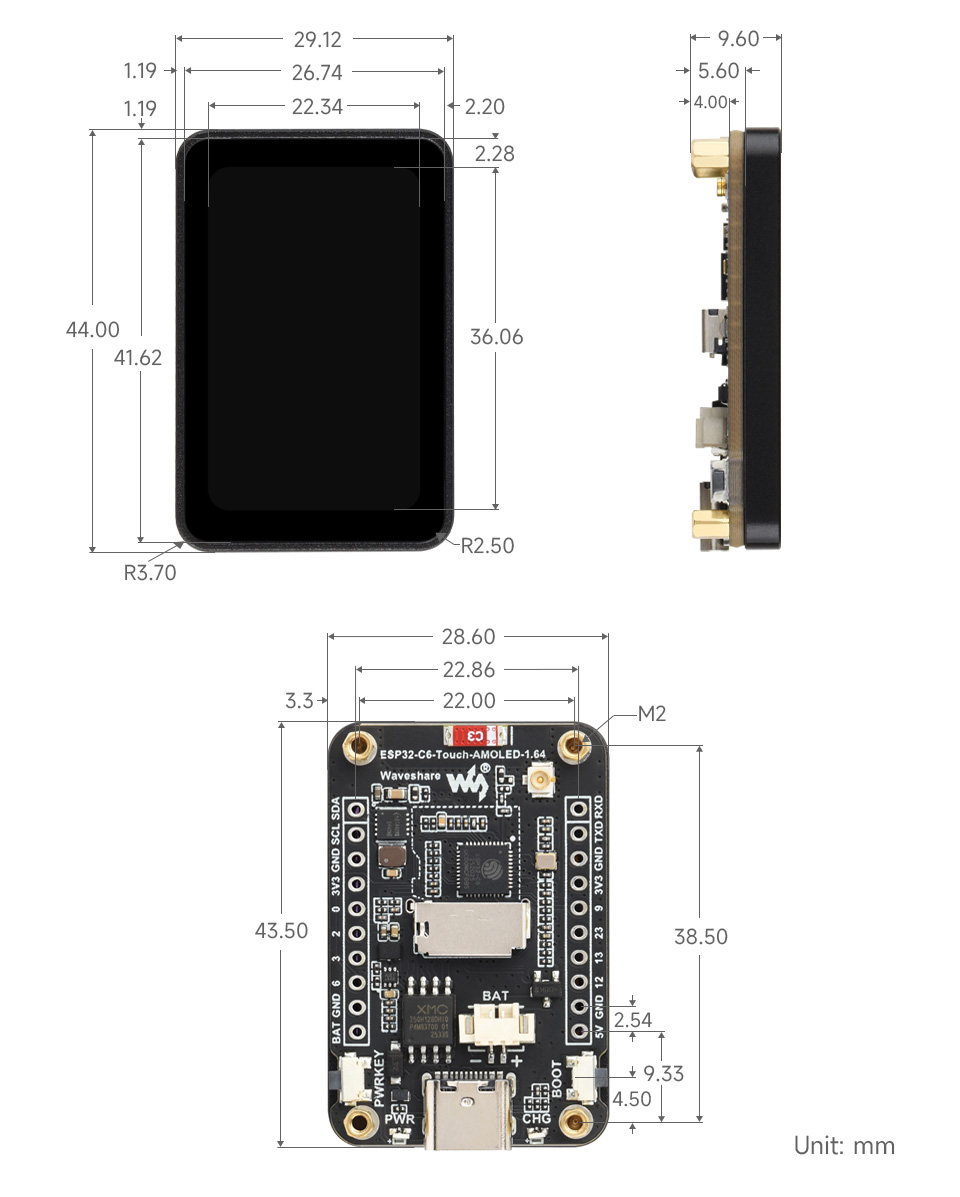

p1204987-ESP32-C6-Touch-AMOLED-1.64-details-inter.jpgp1204987-ESP32-C6-Touch-AMOLED-1.64-details-13.jpg

Features

  • Microcontroller
    • Microcontroller: ESP32-C6
    • Processor: 32-bit RISC-V up to 160 MHz + low-power RISC-V up to 20 MHz
    • Flash memory: 16 MB
    • ROM: 320 KB
    • SRAM: 512 KB HP + 16 KB LP
  • Display
    • Display type: AMOLED with touch panel
    • Size: 1.64"
    • Resolution: 280 × 456 px
    • Colors: 16.7M
    • Driver: CO5300
    • Interface: QSPI
  • Touch panel
    • Type: capacitive
    • Controller: FT6146
    • Interface: I2C
  • Display parameters
    • Brightness: 350 cd/m²
    • Contrast: 60000:1
    • Viewing angle: 178°
  • Wireless connectivity
    • Wi-Fi 6
    • Bluetooth 5 LE / BLE / Mesh
    • IEEE 802.15.4 (Zigbee 3.0 / Thread)
  • Sensors
    • QMI8658 – 6-axis IMU (accelerometer + gyroscope)
  • External storage
    • TF card slot
  • Power supply
    • 3.7 V Li-Ion battery connector (MX1.25)
    • USB Type-C
  • Interfaces
    • QSPI
    • I2C
    • UART
    • USB
    • GPIO
  • Other
    • PWR and BOOT buttons
    • External antenna support
    • Version without pre-soldered pin headers

Kit includes

  • ESP32-C6-Touch-AMOLED-1.64 (Standard Ver.) ×1
  • Pin headers for self-assembly ×2
1204987
