ESP32-S3-Touch-LCD-1.85C-BOX-EN is a complete development platform with a touchscreen display and built-in speaker, ideal for creating audiovisual applications with Wi-Fi, Bluetooth, and voice control support. With large memory capacity, AI model support, and a wide range of peripheral interfaces, the module provides a solid foundation for building smart devices and user interfaces.

24h
Available
Available quantity: 1
Kamami is the official distributor of Waveshare displays, accessories and modules.

Description

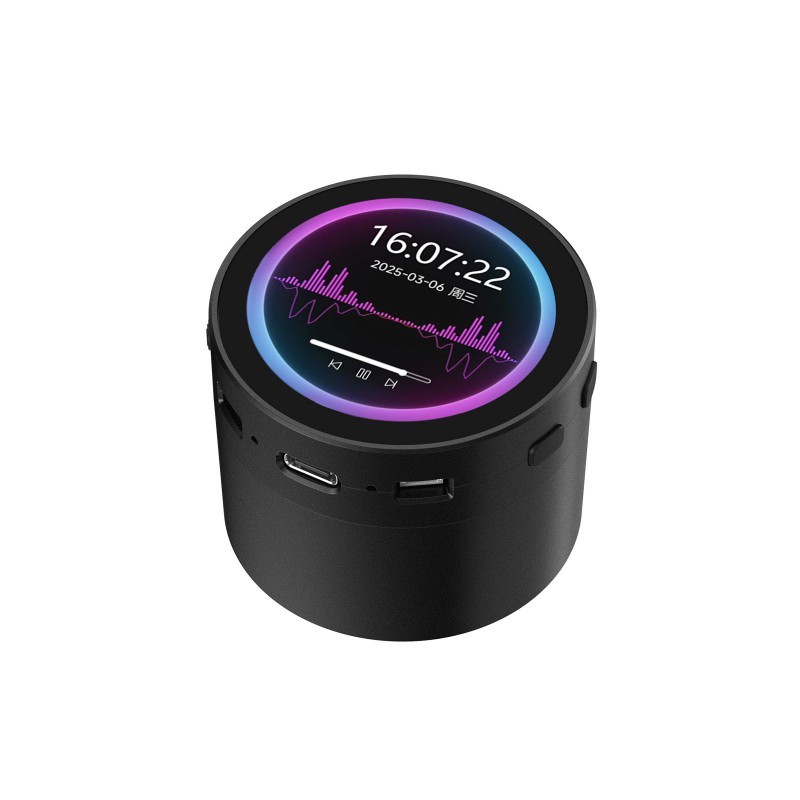

Development module based on the ESP32-S3R8 chip with a built-in 1.85-inch round IPS display at 360 × 360 pixel resolution. This version includes a speaker enclosure (battery not included). The device integrates 16 MB Flash and 8 MB PSRAM, and supports 2.4 GHz Wi-Fi and Bluetooth 5 (LE). The board features a capacitive touch panel (I2C), audio decoder, microphone, TF card slot, RTC chip, and a lithium battery connector. Designed for HMI projects, interactive panels, smart speakers, and voice control using offline models or online AI platforms.

Features

  • 1.85" round IPS display, 360 × 360 resolution, 262K colors
  • Capacitive touch panel, I2C interface with interrupt support
  • Microcontroller: ESP32-S3R8, Xtensa 32-bit LX7, dual-core, up to 240 MHz
  • 512 KB SRAM, 384 KB ROM, 16 MB Flash, 8 MB PSRAM
  • Wireless: Wi-Fi 2.4 GHz (802.11 b/g/n), Bluetooth 5 LE
  • Ceramic antenna with external IPEX option
  • Integrated audio decoder PCM5101, MEMS microphone, audio amplifier
  • Speaker: 8 Ω / 2 W with volume control (knob)
  • microSD (TF) card slot
  • RTC: PCF85063 with backup battery socket
  • Li-Ion 3.7 V battery connector (MX1.25), with charge management chip
  • USB Type-C (USB 1.1 Device), interfaces: UART, I2C, 28-pin GPIO
  • Buttons: RESET, BOOT; power and charging indicators

Included

  • ESP32-S3-Touch-LCD-1.85C-BOX x1
  • SH1.0 4PIN cable (~100 mm) x2
